J300P-5

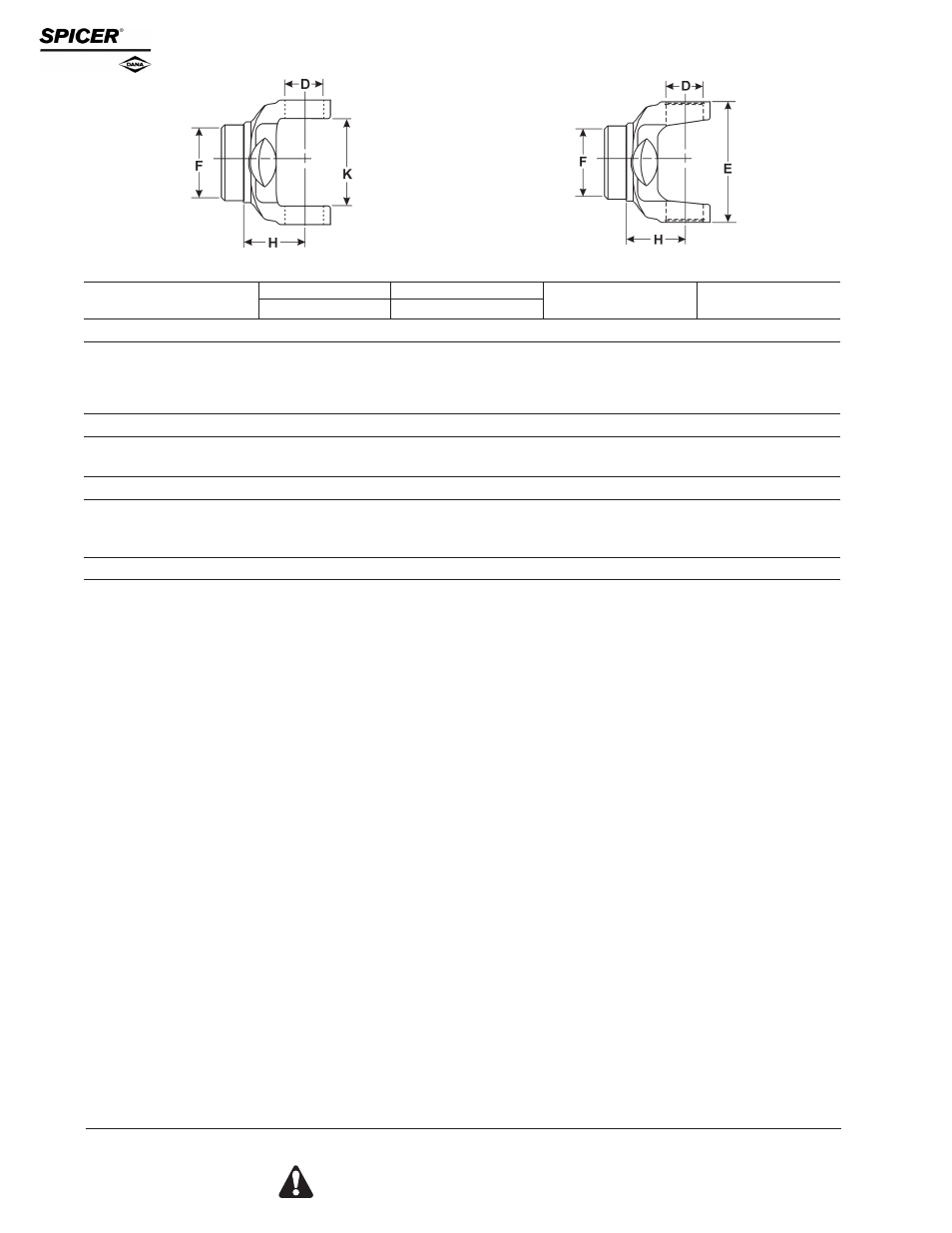

TUBE YOKES
Important: See Safety Information in General Information Section (J300P-GI)
6
Important: See Safety Information in General Information Section (J300P-GI)
•
Part is discontinued Part is available until supply is exhausted
©
Not sold separately
Outside (OSR)
Inside (ISR)
For Use With
F
H
Used in Tube Yoke
Tube Yoke
Tube Diameter & Wall
Butt Diameter C-line to Point of Weld & Yoke Assembly
Part Number
Important: See Safety Information in General Information Section (J300P-GI)
1000 SERIES
K-1.500 D-.938
USE KIT 5-170X, 5-170-1X
1.250 X.095 W
1.068
2.560
—
10-26-37
1.750 X.065 W
1.625
2.000
10-27-1
10-28-17
10-28-17 was replaced by 10-28-97
1.750 X.065 W
1.631
2.000
—
10-28-97
1100 SERIES
E=2.656 D=.938
USE KIT 5-101X OR 5-111X
1.250 X.095 W
1.068
1.688
—
1-26-297
2.000 X.065 W
1.881
1.500
—
1-28-107
1210 SERIES
E=2.688 D=1.062
USE KIT NO. 5-443X, 5-554X
1.500 X.120 W
1.267
1.625
—
2-28-3027
2.000 X.083 W
1.845
1.500
—
2-28-2417
2.500 X.065 W
2.381
1.312
—
2-28-1947
1310 SERIES
E=3.469 (UB,BS STYLE E=3.219) D=1.062,
USE KIT 5-153X, 5-1310X
1.250 X.098 W
1.068
2.125
—
2-26-187
1.250 X.120 S
1.016
2.125
—
2-26-347
1.250 X.188 S
.886
2.281
—
2-26-147
1.750 X.065 W
1.630
1.688
—
2-28-447
1.750 X.095 W
1.571
1.688
—
2-28-3187
2.000 X.065 W
1.881
1.688
—
2-28-417
2.000 X.083 W
1.845
1.688
2-27-7
2-28-357
2.000 X.095 W
1.821
1.688
—
2-28-577
2.000 X.120 W
1.771
1.688
—
2-28-1757
2.000 X.120 W
1.771
1.965
—
2-28-02324
2.000 X.120 W
1.771
1.965
—
5002324
5002324 will be replaced by 2-28-02324 when supply is exhausted
2.250 X.095 W
2.062
2.000
—
2-28-547•
2.500 X.065 W
2.381
1.844
2-27-4
2-28-277
2.500 X.083 W
2.345
1.844
2-27-9
2-28-367
2.750 X.065 W
2.631
1.688
2-27-5
2-28-307
2.750 X.083 W
2.595
1.688
—
2-28-1617§
3.000 X.065 W
2.881
1.688
2-27-6
2-28-327
3.000 X.065 W
2.881
1.844
—
2-28-3207
3.000 X.083 W
2.845
1.688
2-27-24
2-28-437
3.250 X.065 W
3.130
1.688
—
2-28-557
3.500 X.065 W
3.381
1.688
2-27-10
2-28-397
3.500 X.083 W
3.345
1.688
2-27-12
2-28-427
4.000 X.083 W
3.844
1.500
—
2-28-477
4.000 X.083 W
3.845
1.906
—
2-28-3837
