J300P-5

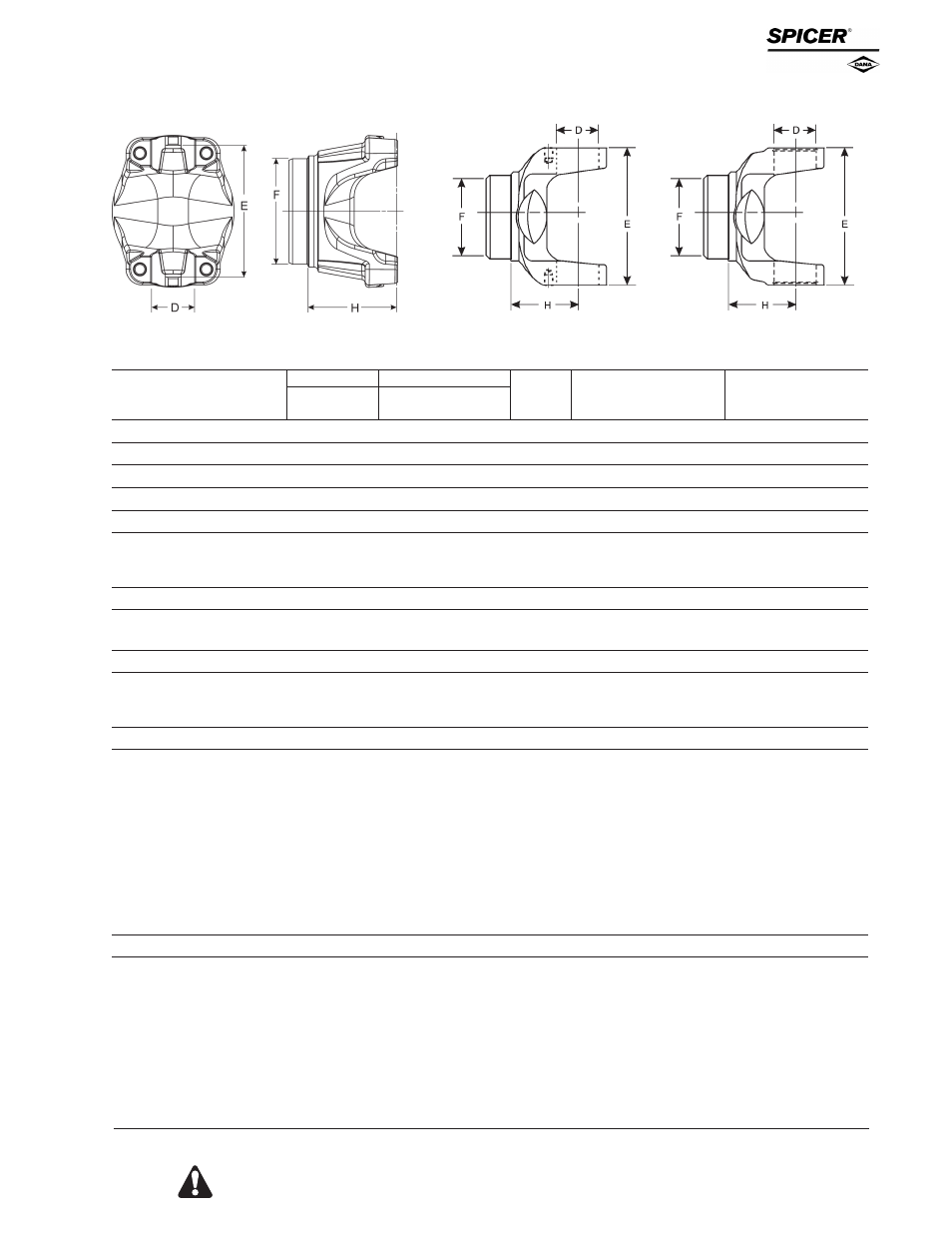

TUBE YOKES
Spicer Life Series™
F H Used in Tube
For Use With Butt C-line to Yoke & Yoke Tube Yoke
Tube Diameter & Wall Diameter Point of Weld Design Assembly Part Number
Spring Tab
Design
Snap Ring
Design
5 Important: See Safety Information in General Information Section (J300P-GI)
• Part is discontinued  Part is available until supply is exhausted © Not sold separately
Half Round
Design
SPL55 SERIES E=4.438 (UB,BS STYLE E=4.188) D=1.375 USE KIT SPL55X, SPL55-1X
3.500 X.083 W 3.344 2.834 HR — 55-28-27
SPL70 SERIES E=5.250 (HR STYLE E=4.965) D=1.375 USE KIT 5-155X, SPL70X
3.500 X.095 W 3.321 2.875 HR — 70-28-27
SPL90 SERIES E=5.375 (HR STYLE E=4.958) D=1.625 USE KIT NO. SPL100-1X
4.000 X.095 W 3.812 2.969 SR — 90-28-17
90-28-17 was replaced by 100-28-17
4.000 X.134 W 3.734 2.969 SR — 90-28-27
SPL100 SERIES E=5.375 (HR STYLE E=4.957) D=1.625 USE KIT NO. SPL100-1X
4.000 X.095 W 3.810 2.969 SR — 100-28-17
4.000 X.095 W 3.810 3.240 HR — 100-28-27
SPL140 SERIES E=5.028 (HR STYLE E=5.457) D=1.938 USE KIT SPL140X
4.331 X.197 W 3.957 3.504 ST — 140-28-17
Also fits 4.213 x .138 wall tube
4.560 X.165 W 4.245 3.504 ST — 140-28-27•
SPL170 SERIES E=6.026 (HR STYLE E=6.456) D=2.166 USE KIT SPL170-4X, SPL170-SF4X
— 4.112 4.567 ST — 170-28-13415
Tube yoke presses into splined sleeve
— 4.112 4.567 ST — 5013415
5013415 will be replaced by 170-28-13415 when supply is exhausted; Tube yoke presses into splined sleeve
— 4.350 4.724 ST — 170-28-37
Tube yoke presses into splined sleeve
4.500 X.134 W 4.242 4.567 ST — 5009269
5009269 will be replaced by 170-28-09269 when supply is exhausted;
4.500 X.137 W 4.242 4.567 ST — 170-28-09269
4.724 X.197 W 4.350 4.724 ST — 170-28-27
4.961 X.118 W 4.750 3.700 ST — 170-28-17
SPL250 SERIES E=5.986 (HR STYLE E=6.417) D=2.362 USE KIT SPL250-3X, SPL250-SF3X
— 4.423 4.882 ST — 250-28-37
Tube yoke presses into splined sleeve
5.197 X.236 W 4.746 4.094 ST — 250-28-17
