Fill Plug
(35-45 Lb-Ft)
(47-61 N-m)
Differential
Support Case

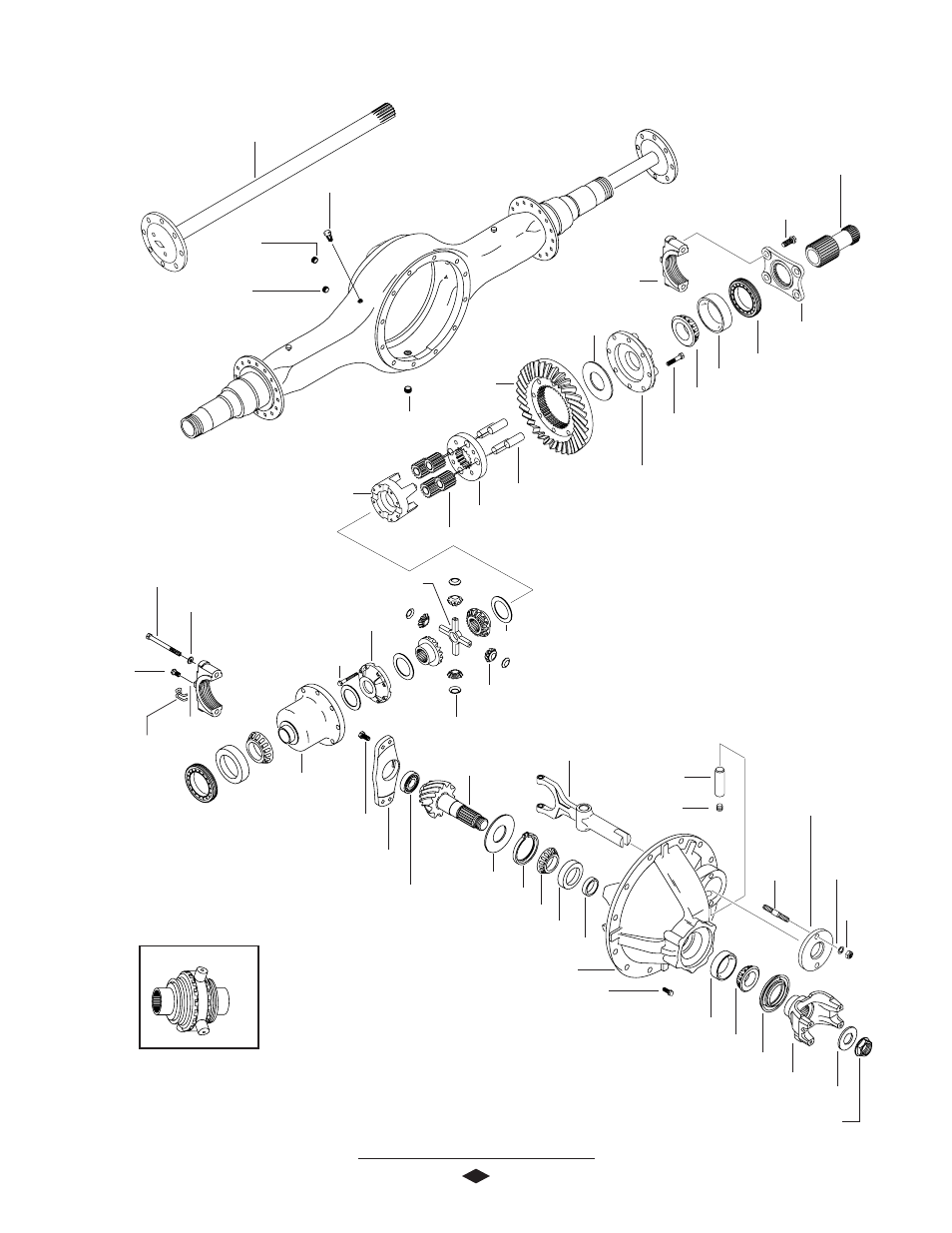

AXLE COMPONENTS
Differential Thrust Plate
Carrier Housing
Carrier Mounting Bolt
(See Torque Specifications)
End Yoke Assembly
Optional No-SPIN ®
Differential Gear Thrust Washer
Pinion
Shift Fork Assembly
Set Screw
Differential Pinion Mate
Differential Pinion Mate Thrust Washer
Stud
Shift Housing Seal
Washer
Nut
Flanged Hex Nut
(700-900 Lb-Ft)
(949-1,220 N-m)
Pinion Oil Seal
Outer Pinion Bearing Cone
Outer Pinion Bearing Cup
Inner Pinion Bearing Cup
Inner Pinion Bearing Cone
Pinion Pilot Bearing Cap
Pinion Bearing Spacer (Selective)
Differential Bearing Cap
Ring Gear
Vent Plug
Oil Slinger Seal Pinion Pilot Bearing
Differential Case (Planetary) Half
6
Adjusting Ring
Retainer
Washer
Differential Bearing Cap Washer
Differential Bearing Cap Bolt
(See Torque Specifications)
Temperature
Sensor Plug
(35-45 Lb-Ft)
(47-61 N-m)
Axle Shaft
Sun Gear
Hex Bolt
(255-275 Lb-Ft)
(298-339 N-m)
Magnetic Drain Plug
(35-45 Lb-Ft)
(47-61 N-m)
Sun Gear
Retainer Plate
Adjusting Ring
Differential Bearing Cone
Differential Bearing Cup
Ring Gear Bolt
(See Torque Specifications)
Differential Support Case
Planet Gear Shaft
Planet Gear Mounting Plate
Planet Gear
Differential Case Cap Half
Differential Case Bolt
(See Torque Specifications)
Shift Fork Shaft
Differential Cross Shaft
Pinion Pilot Bearing Cap Bolt
(See Torque Specifications)
Pinion Oil Slinger
Hex Bolt
(30-40 Lb-Ft)
(41-54 N-m)
