1. Apply a small amount of lubricant to all mating
surfaces. This will keep the thrust washers in place
during assembly, and provide for initial lubrication.
2. Place thrust washer and differential side gear in
differential case (planetary) half.
3. Assemble differential components and place into
differential case (planetary) half.
4. Place side gear and thrust washer in position on
differential pinion mates.
5. Position differential case cap half onto above
assembly, making sure match marks line up.
See
Figure 6.
4. Install differential case bolts (M230-T export model
has 12 bolts). Tighten alternately and evenly.
Torque bolts to:
G Model: 70-80 Lb-Ft (95-108 N-m)
M Model: 110-125 Lb-Ft (149-169 N-m)

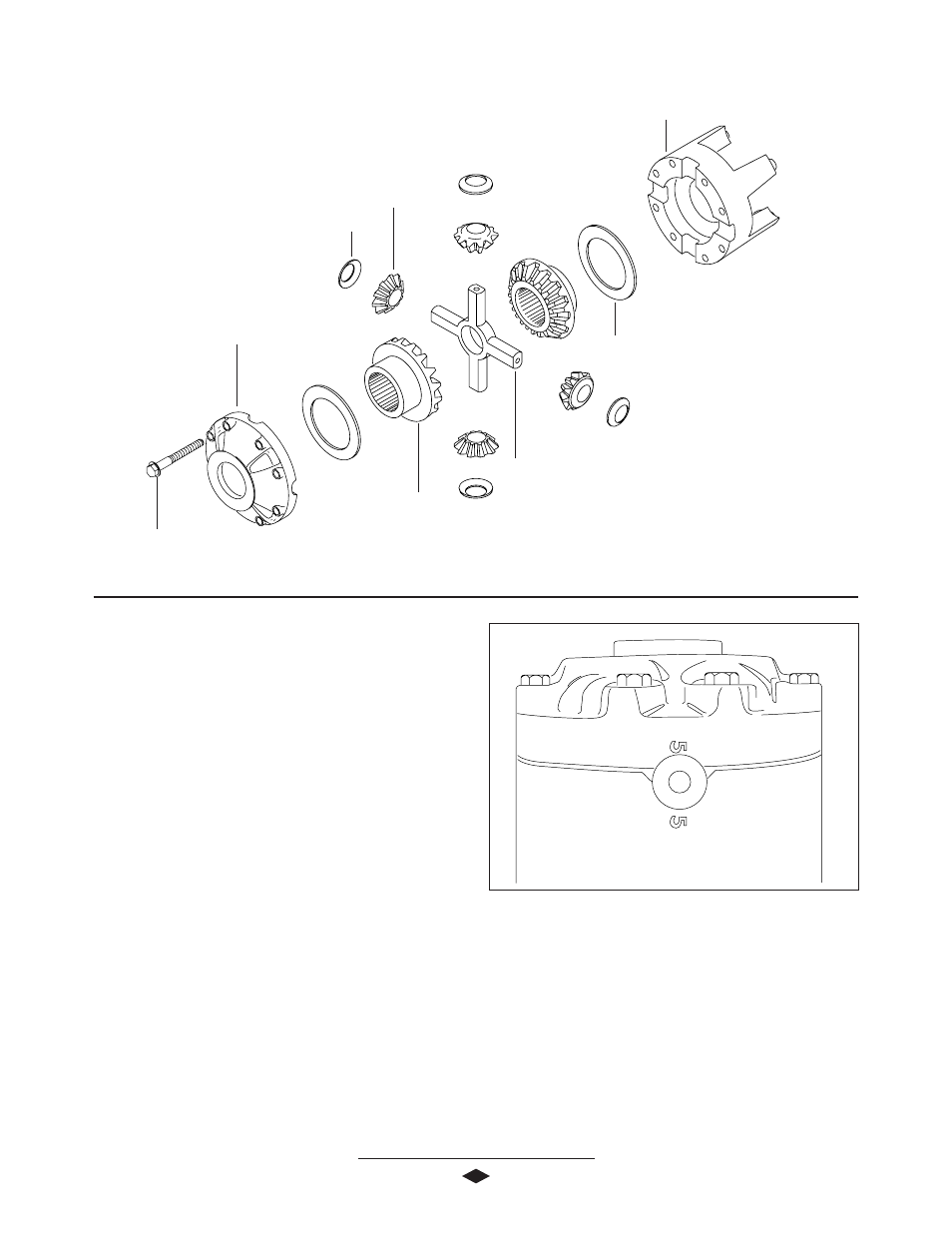

DIFFERENTIAL ASSEMBLY
Differential Gear Thrust Washer
Differential Cross Shaft
Differential Case Bolt
(See Torque Specifications)
Differential Side Gear
Differential Case (Planetary) Half
Differential Pinion Mate Thrust Washer
Differential Pinion Mate
18
FFFFFigur
igur
igur
igur
igure 6
e 6
e 6
e 6
e 6
Differential Case Cap Half
Differential Assembly Complete
