EXPORT IMPROVEMENT FOR M230-T MODEL
SUN GEAR RETAINER INSTALLATION
1. Install sun gear retainer plate. Apply Loctite #277
to threads of bolts with a grooved head and install.
Torque bolts to 220-250 Lb-Ft (238-339 N-m).
NOTE: Figures 18, 19 for proper assembly.
2. Install sun gear lock plates over bolts.
NOTE: If lock plates will not fit correctly over bolts and
retainer plate, tighten the bolt until lock plate can be
installed.
3. Install E-clips to grove in head of bolt.
4. Install sun gear.
5. Slide shift fork into carrier housing and position on
sun gear. Install shift fork shaft through hole in
carrier housing and shift fork.
6. Insert and tighten set screw 30-40 Lb-Ft
(41-54 N-m).
7. Install shift fork seal and spring.
NOTE: Continue assembly with Installation of Carrier
into Axle Housing procedures outlined on Pg. 22.

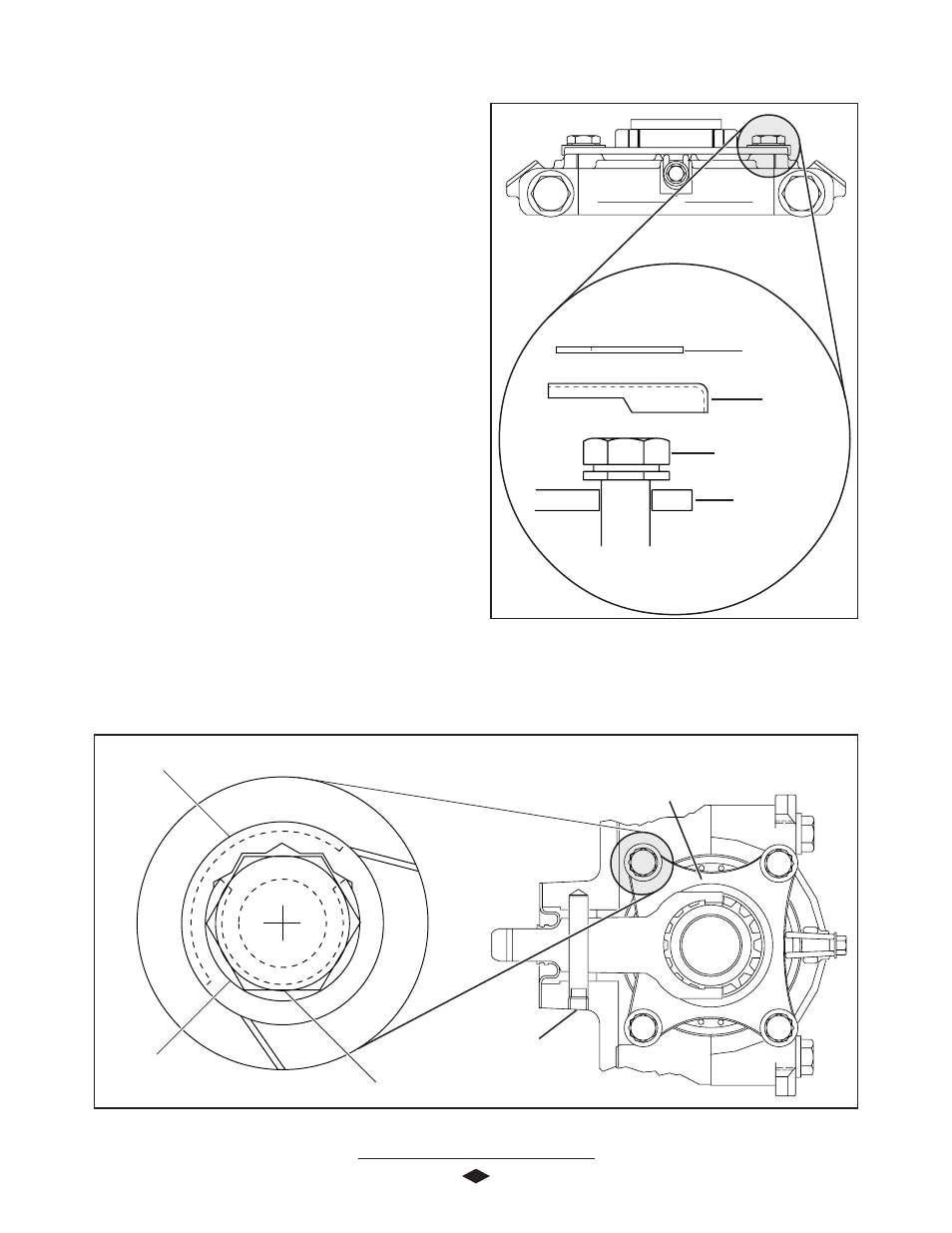

FFFFFigur igur igur igur igure 1 e 1 e 1 e 1 e 18 8 8 8 8
Sun Gear Sun Gear Sun Gear Sun Gear Sun Gear
Lock Pla Lock Pla Lock Pla Lock Pla Lock Plattttteeeee
E-clip E-clip E-clip E-clip E-clip
Gr Gr Gr Gr Groo oo oo oo oovvvvved R ed R ed R ed R ed Reeeeetttttainer Bolt ainer Bolt ainer Bolt ainer Bolt ainer Bolt
FFFFFigur igur igur igur igure 1 e 1 e 1 e 1 e 19 9 9 9 9
Se Se Se Se Set Scr t Scr t Scr t Scr t Screeeeew w w w w
Sun Gear Sun Gear Sun Gear Sun Gear Sun Gear
R R R R Reeeeetttttainer Pla ainer Pla ainer Pla ainer Pla ainer Plattttteeeee
Sun Gear Sun Gear Sun Gear Sun Gear Sun Gear
R R R R Reeeeetttttainer Pla ainer Pla ainer Pla ainer Pla ainer Plattttteeeee
Gr Gr Gr Gr Groo oo oo oo oovvvvved R ed R ed R ed R ed Reeeeetttttainer Bolt ainer Bolt ainer Bolt ainer Bolt ainer Bolt
Sun Gear Sun Gear Sun Gear Sun Gear Sun Gear
Lock Pla Lock Pla Lock Pla Lock Pla Lock Plattttteeeee
E-clip E-clip E-clip E-clip E-clip
Sun Gear Retainer Installation Complete
