Export improvement for m230-t model – Spicer Drive Axles Service Manual G & M User Manual
Page 28
EXPORT IMPROVEMENT FOR M230-T MODEL
3. Apply a thin layer of Loctite #277 on the
threads of the ring gear bolts and install as shown
in
Figure 16.

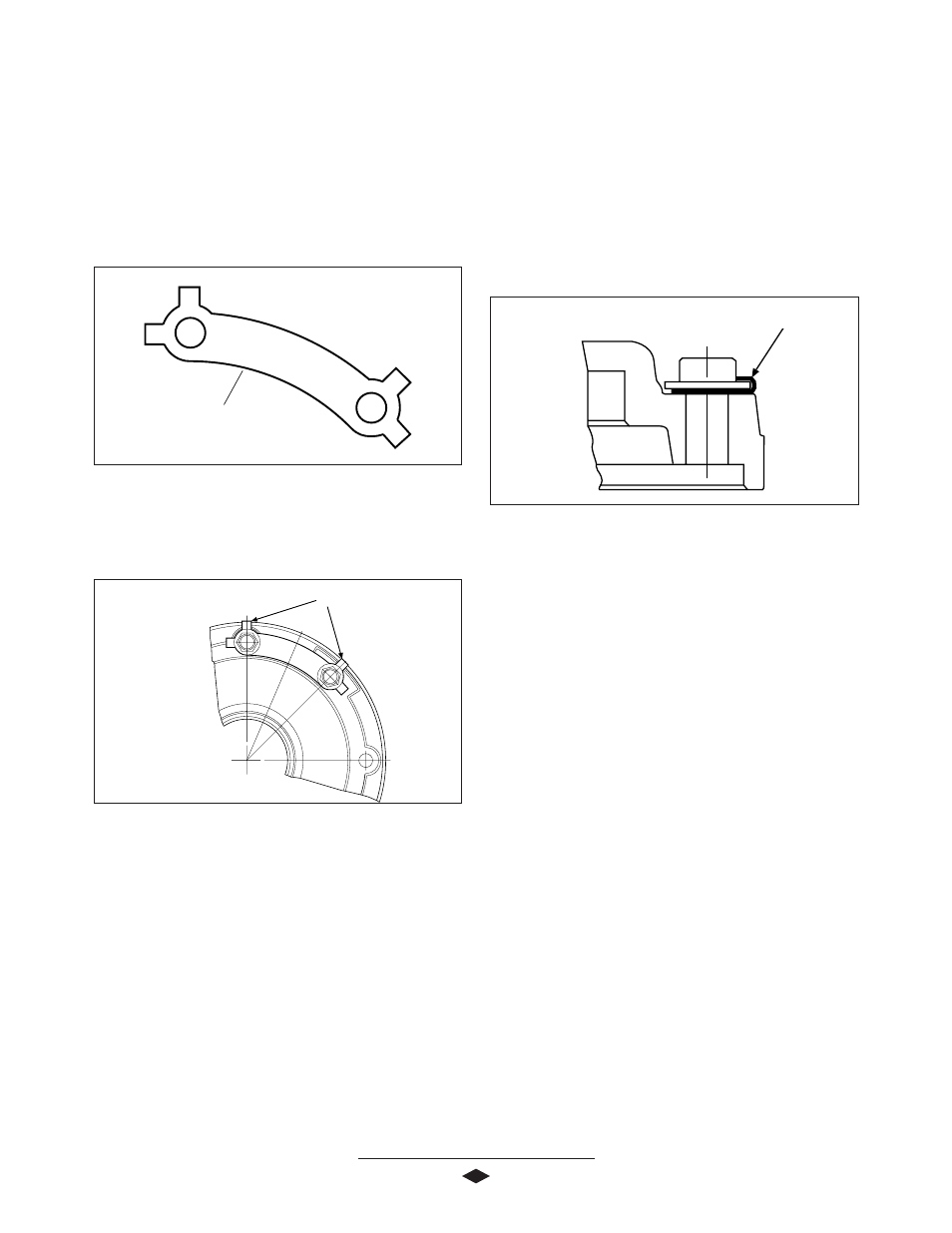

RING GEAR BOLT RETAINER INSTALLATION
1. Follow Ring Gear and Support Case Assembly
procedures 1 thru 8.
2. Insert ring gear bolts through ring gear bolt
retainers.
See Figure 15.
4. Torque the ring gear bolts to 160-180 Lb-Ft (217-
244 N-m).
5. Bend tabs on retainers over flats of bolts. See
Figure 17.
CAUTION: If tabs on retainers do not align with flats on
bolts, tighten bolts to next flat that will align with tab.
NOTE: Continue assembly with Differential Support
Case Installation procedures outlined on Pg. 20.
FFFFFigur
igur
igur
igur
igure 1
e 1
e 1
e 1
e 17
7
7
7
7
Bent Tab
Ring Gear and Support Case Assembly Complete
FFFFFigur
igur
igur
igur
igure 1
e 1
e 1
e 1
e 16
6
6
6
6
Tabs
FFFFFigur
igur
igur
igur
igure 1
e 1
e 1
e 1
e 15
5
5
5
5
Ring Gear Bolt Retainer
26
