Axle components – Spicer Drive Axles Service Manual User Manual
Page 7
5

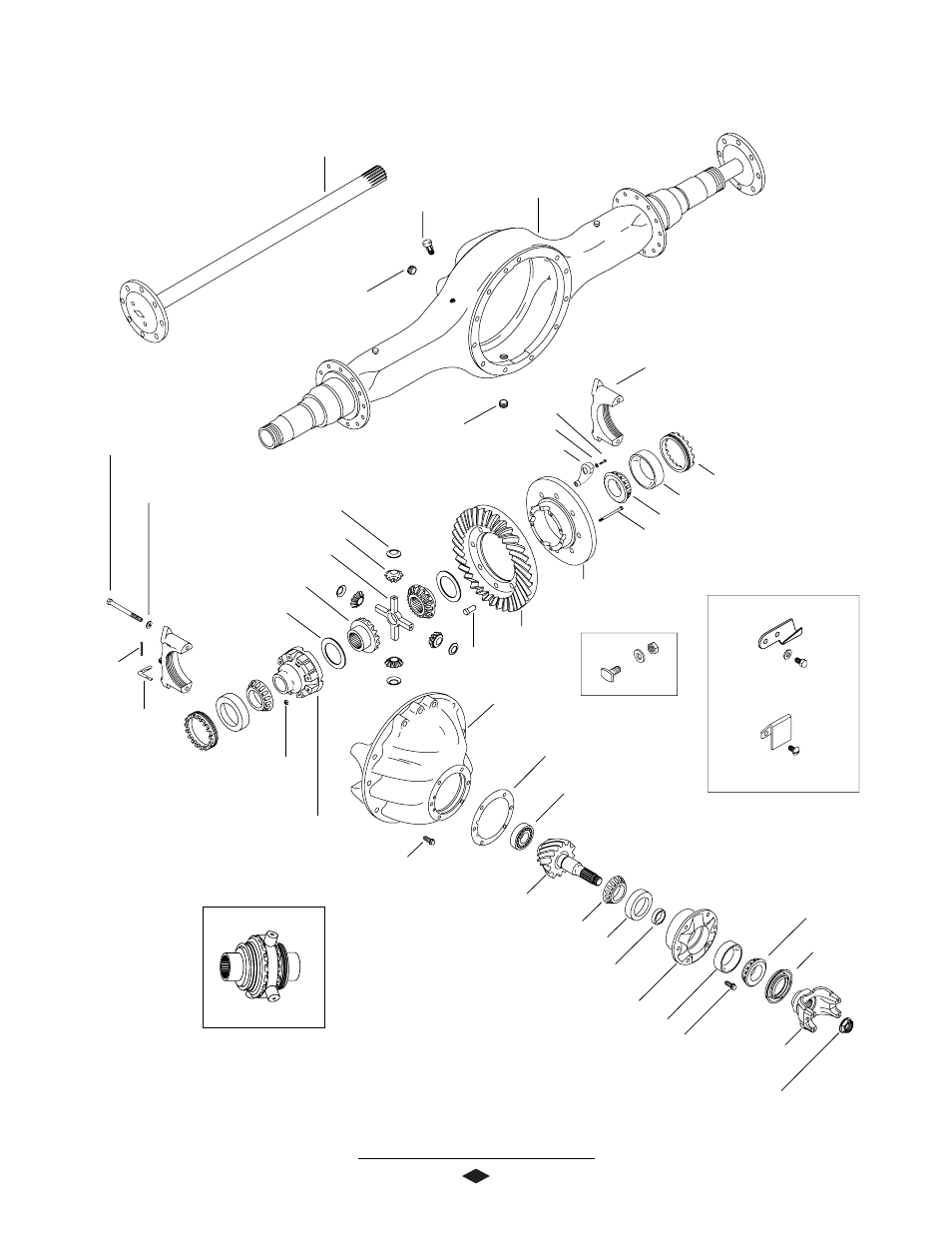

AXLE COMPONENTS
Axle Shaft
Fill Plug
(35-45 Lb-Ft)
(47-61 N-m)
Vent Plug
Housing
No-SPIN
®
Differential
Magnetic Drain Plug
(35-45 Lb-Ft)
(47-61 N-m)
Adjusting Ring
Differential Bearing Cap
Differential Side Gear
Differential Pinion Mate
Thrust Washer
Differential Gear
Thrust Washer
(Optional)
Differential Pinion Mate
Differential Cross Shaft
Differential Bearing Cone
Differential Bearing Cup
Differential Case Nut
(75-90 Lb-Ft)
(100-120 N-m)
Differential Case
Cap Half
Pinion
Pinion Pilot Bearing
Pinion Bearing Cage Bolt
(160-180 Lb-Ft)
(217-244 N-m)
Inner Pinion Bearing Cup
Inner Pinion Bearing Cone
Pinion Position Shim(s)
Pinion Bearing Spacer
(Selective)
Pinion Bearing Cage
Outer Pinion Bearing Cup
Pinion
Oil Seal
Flanged Hex Nut
(700-900 Lb-Ft)
(950-1,220 N-m)
Carrier Mounting Bolt
(100-120 Lb-Ft)
(136-162 N-m)
Outer Pinion
Bearing Cone
End Yoke
Assembly
Differential Bearing Cap Bolt
(115-135 Lb-Ft)
(155-183 N-m)
Differential Bearing
Cap Washer
Differential Case
Flange Half
Ring Gear
Ring Gear Rivet
Carrier Housing
Ring Gear Bolt Kit
(300-320 Lb-Ft)
(406-434 N-m)
Cotter
Pin
Adjusting Ring
Lock
Differential Case Bolt
Oil Scoop
Pinion-Up Components
Oil Deflector
Oil Scoop
Washer
Hex Bolt
(7-9 Lb-Ft)
(9-12 N-m)
