MODEL IDENTIFICATION NUMBERING SYSTEM
HEAT
CODE
SPICER
TRADEMARK
MFG.
DATE MATCHED
SET NUMBER
PART
NUMBER
TOOTH
COMBINATION
41-11
260
SPICER
TRADEMARK
+15
L10
PINION
ETCH
BACKLASH
ETCH
401
* No-SPIN ® is a registered trademark of Tractech

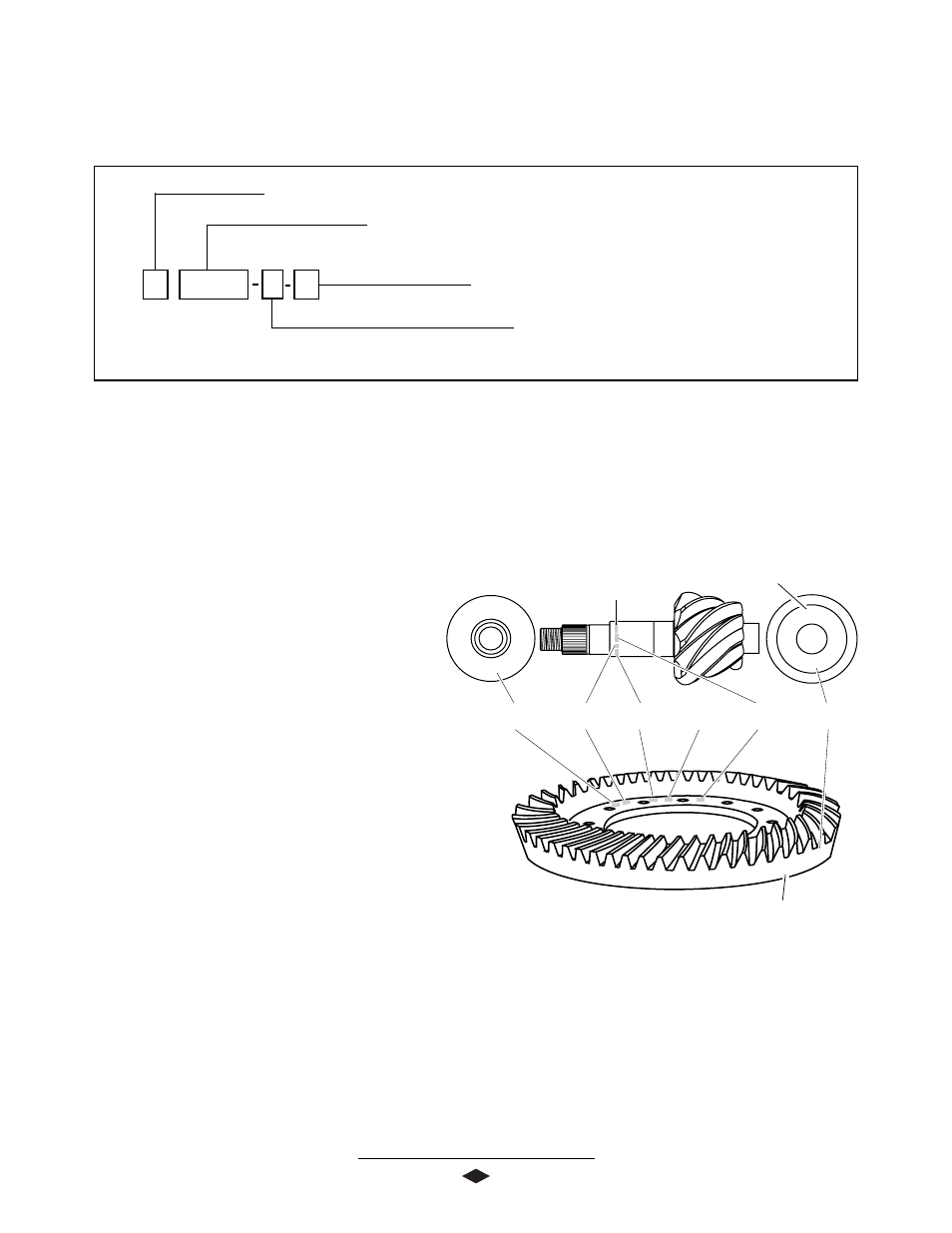

GEAR SET IDENTIFICATION
Manufacturer's Date- Date gear set was made.
Spicer Trademark- Dana Diamond and location of
manufacturing facility.
029GP100- Part number of pinion. (TYPICAL)
029GR107- Part number of ring gear. (TYPICAL)
Tooth Combination(i.e. 41-11)- Indicates the pinion
has 11 teeth and the ring gear has 41 teeth which
results in a 3:73:1 ratio.
Matched Set Number- Spicer ring gears and pinions
are manufactured as matched sets. Both ring gear and
pinion are marked with a corresponding number (i.e.
401), which identifies them as a matched set.
A gear set that does not have the same match set
numbers should not be run together. If either ring gear
or pinion require replacement,
a new matched set must
be used.
Backlash Etch- Indicates backlash setting for assembly.
Pinion Etch- Indicator for proper pinion position shim
stack up. See
Pinion Position Section.
