DIFFERENTIAL ASSEMBLY

Correct rivet head shape

when properly compressed

1. If ring gear was removed from the differential case,

reinstall it at this time. Bolt ring gear to differential
case in two places, 180

apart, before compressing

rivet; this will eliminate ring gear runout. Use a
hydraulic or mechanical press and riveting fixture.
Pressure requirement per rivet is 45-50 tons or
(41-45 metric tonnes).

NOTE: Ring gear and pinion must be replaced as a
matched set only.
2. Press differential bearing cones onto differential

case halves. Place differential bearing cups on

cones during remainder of assembly to prevent
damage of bearings.

3. Apply a small amount of gear lubricant to all mating

surfaces. This will aid in assembly by keeping parts
together and providing initial lubrication.

4. Place differential gear thrust washer and differential

side gear in differential case flange half.

5. Assemble differential pinion mates and differential

pinion mate thrust washers onto differential cross
shaft. Place assembly into differential case flange
half.

6. Place remaining differential side gear and differential

side gear thrust washer in position on differential
pinion mates.

7. Assemble case halves, making sure match marks are

lined up.

8. Install differential case bolts and torque differential

case nuts evenly to 75-90 Lb-Ft (100-120 N-m).

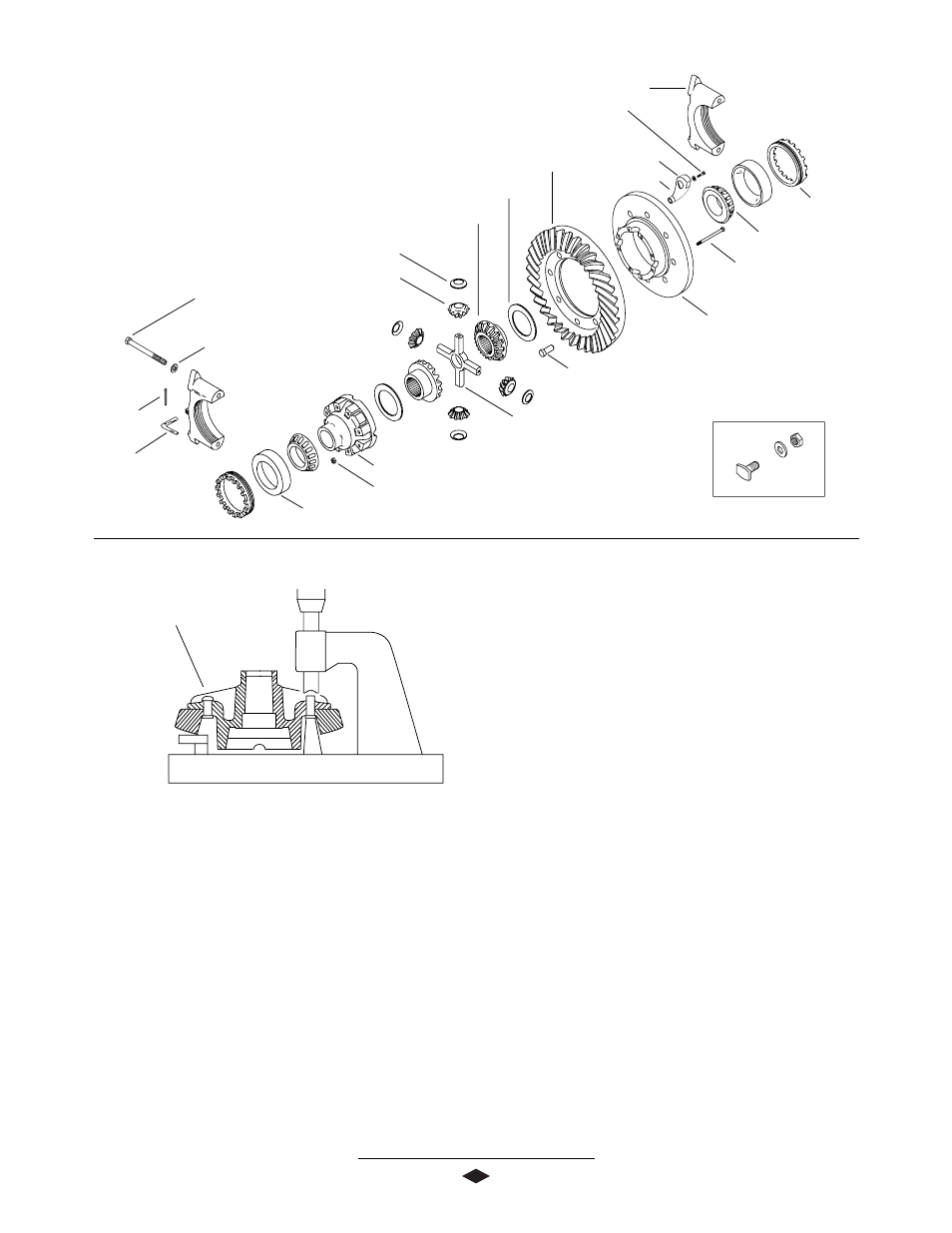

Differential Assembly Complete

Differential Case Cap Half

Differential Bearing Cap

Differential Bearing Cap Bolt
(115-135 Lb-Ft)
(155-183 N-m)

Differential Case Flange Half

Differential
Bearing Cup

Differential Pinion Mate

Differential Pinion Mate Thrust Washer

Differential Gear Thrust Washer

Differential Side Gear

Differential Case Bolt

Ring Gear

Oil Scoop

Hex Bolt

(7-9 Lb-Ft)
(9-12 N-m)

Cotter Pin

Adjusting Ring
Lock

Differential Bearing
Cap Washer

Adjusting
Ring

Differential
Bearing Cone

Differential Case Nut
(75-90 Lb-Ft)
(100-120 N-m)

Differential Cross Shaft

Ring Gear Rivet

Washer

Ring Gear Bolt Kit
(300-320 Lb-Ft)
(406-434 N-m)

(Optional)
