5.
6.

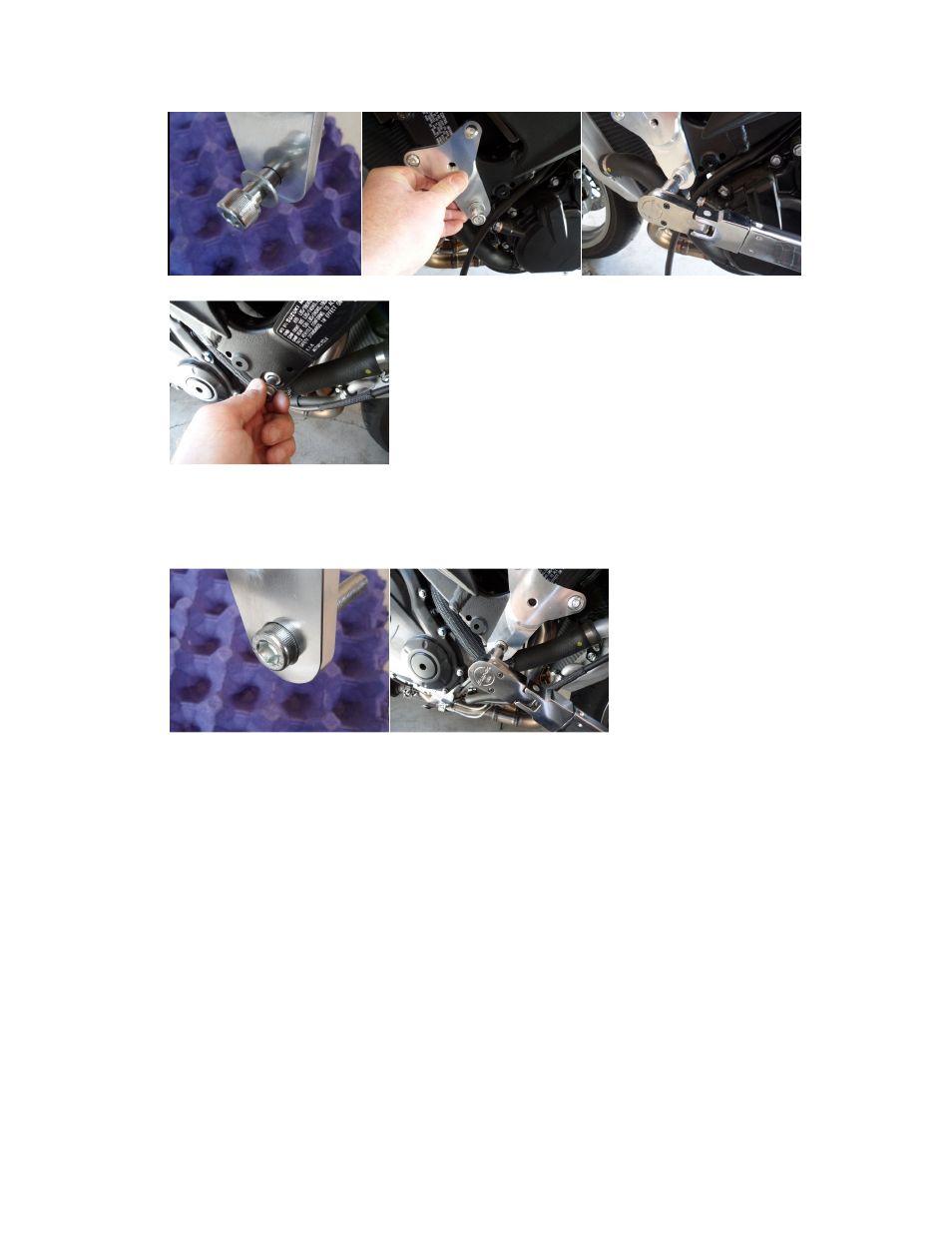

Remove right side engine stud.
7.
Mount right side offset to the motorcycle. Read your service manual for specific torque
specifications associated to those locations. Use (99-HB-SH10125060) 10 X 1.25 X 60 Socket cap
bolt to mount offset to the motorcycle. Torque down main engine stud. Tip: DO NOT use blue
thread locker on either bolts discussed in this section. Start bolt in by hand make sure you have
good thread engagement -
do not cross thread . No washer is needed for right side offset .
8.
Mount bodywork. On the left side you will need to guide the body panel up the offset as you
tighten body screw shown in this photo. This Shogun kit has a very tight fit on both the left and
right side this is to ensure the maximum strength of the offsets.
