Shogun Motorsports Suzuki GSXR600_750 (2011) NO CUT Frame Slider User Manual
Page 4

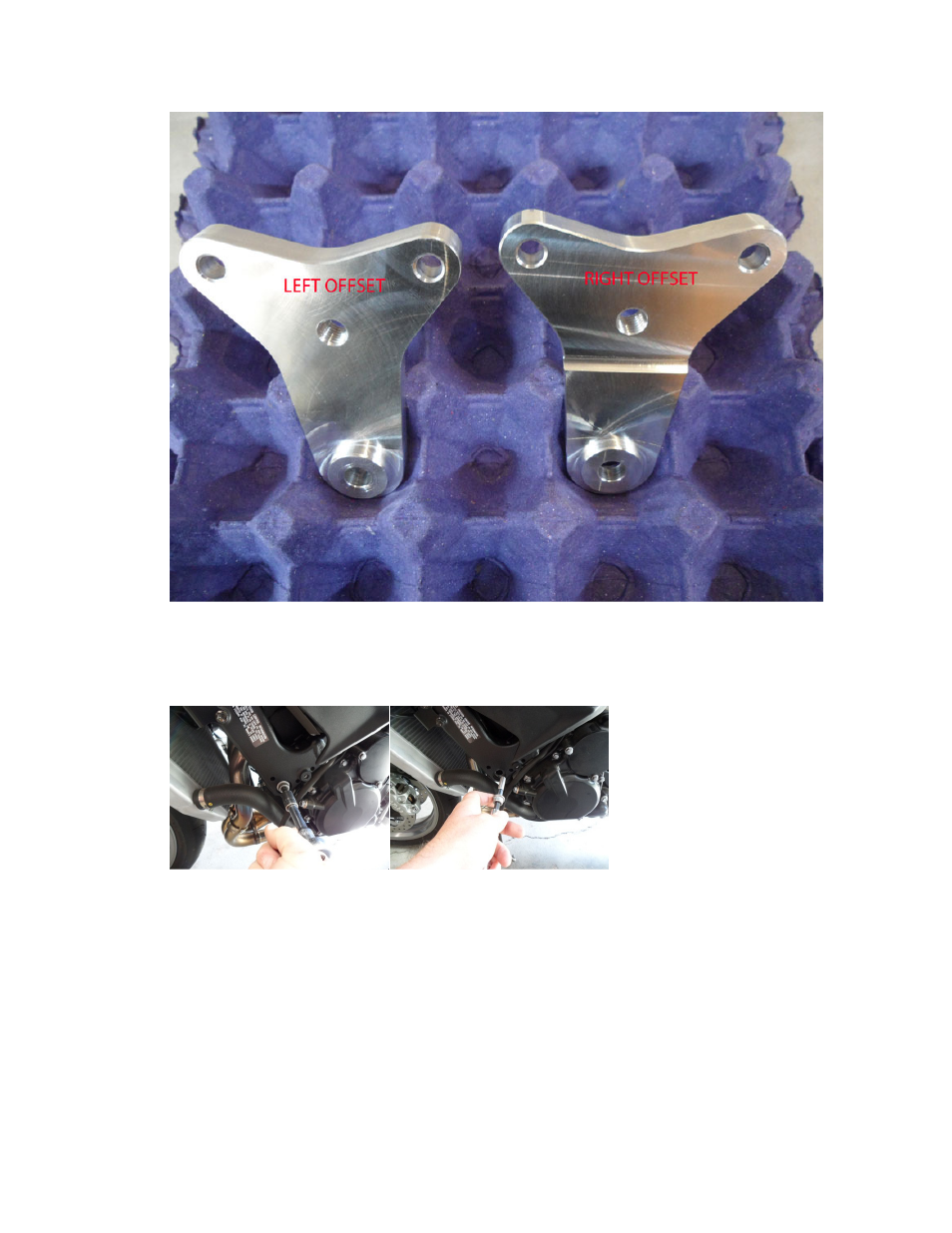

The photo above shows the back side of the offset (the side that will be facing the frame) you
can see the right side offset has a radius step. This is so the offset will clear VIN tag on the right
side of the frame.
3.
Remove left side engine stud.
4.
Mount left side offset to the motorcycle. Read your service manual for specific torque
specifications associated to those locations. Use (99-HB-SH10125060) 10 X 1.25 X 60 Socket cap
bolt
with 10mm steel washer
to mount offset to the motorcycle. Torque down main engine
stud. Tip: DO NOT use blue thread locker on either bolts discussed in this section. Start bolt in by
hand make sure you have good thread engagement
do not cross thread
.
