Shogun Motorsports BMW S1000RR (12-13) NO CUT Frame Slider - Manual (Page 3)

7.

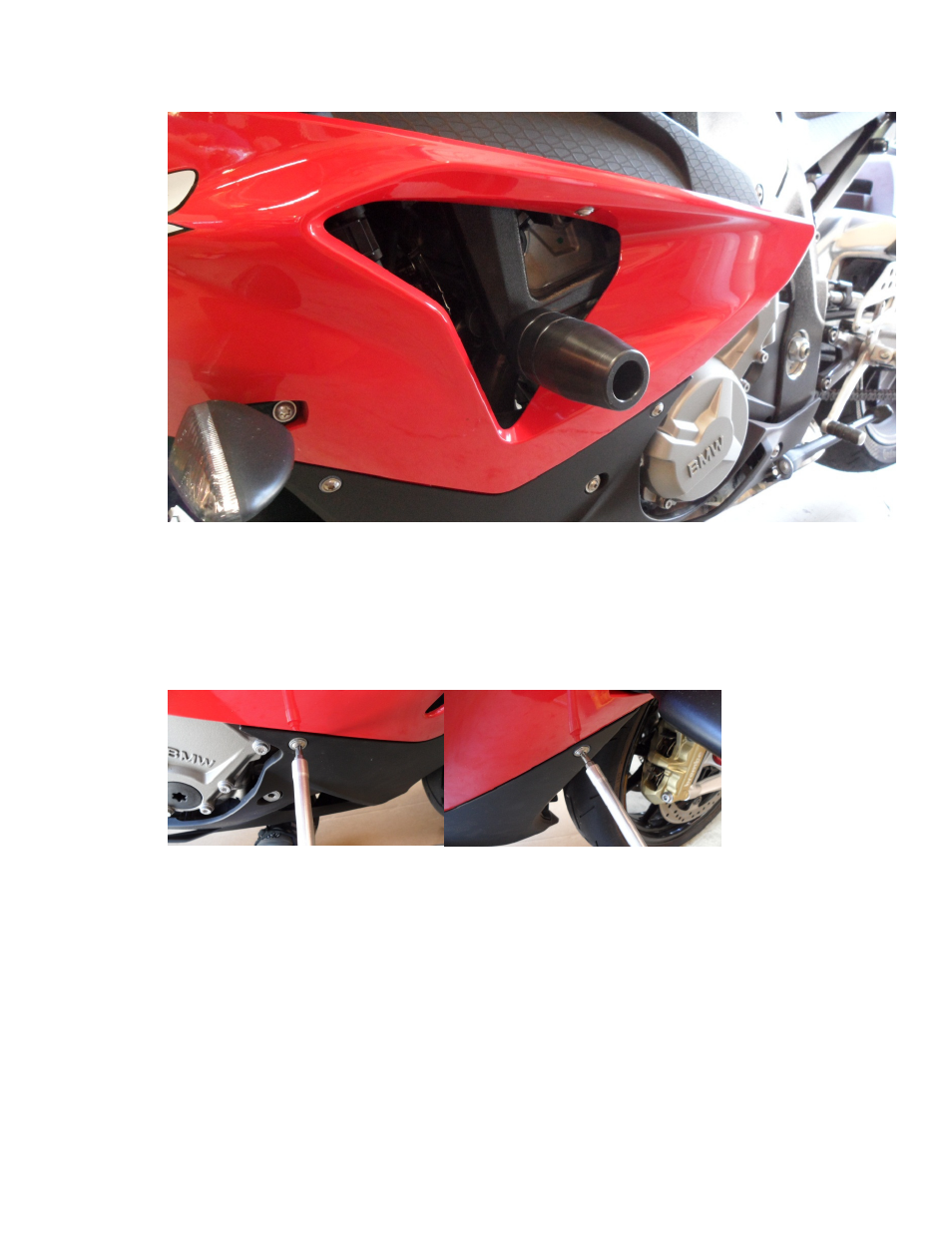

Mount bodywork. This Shogun kit has a very tight fit on the right hand side this is to ensure the
maximum strength of the offset. Mount bodywork loosely and do not tighten body screws yet.
8.
After body is loosely mounted tighten the two mid-section screws first. To close the gap in the
mid-section to match the left side, you can squeeze the panels together with one hand and
tighten with the other or as illustrated here with your foot pressing upwards wile tightening the
two body panels together.
9.
Once mid-section screws are tight, tighten the rest of the bodywork screws starting at the front
moving your way towards the rear of the motorcycle.
10.
Mount right side frame slider to the offset. Use (99-HB-SH10150050) 10 X 1.5 X 50 Socket cap
bolt with one drop of blue thread locker and torque down to 32 foot lbs.
