2
ASRock H61M-DG3/USB3 Motherboard

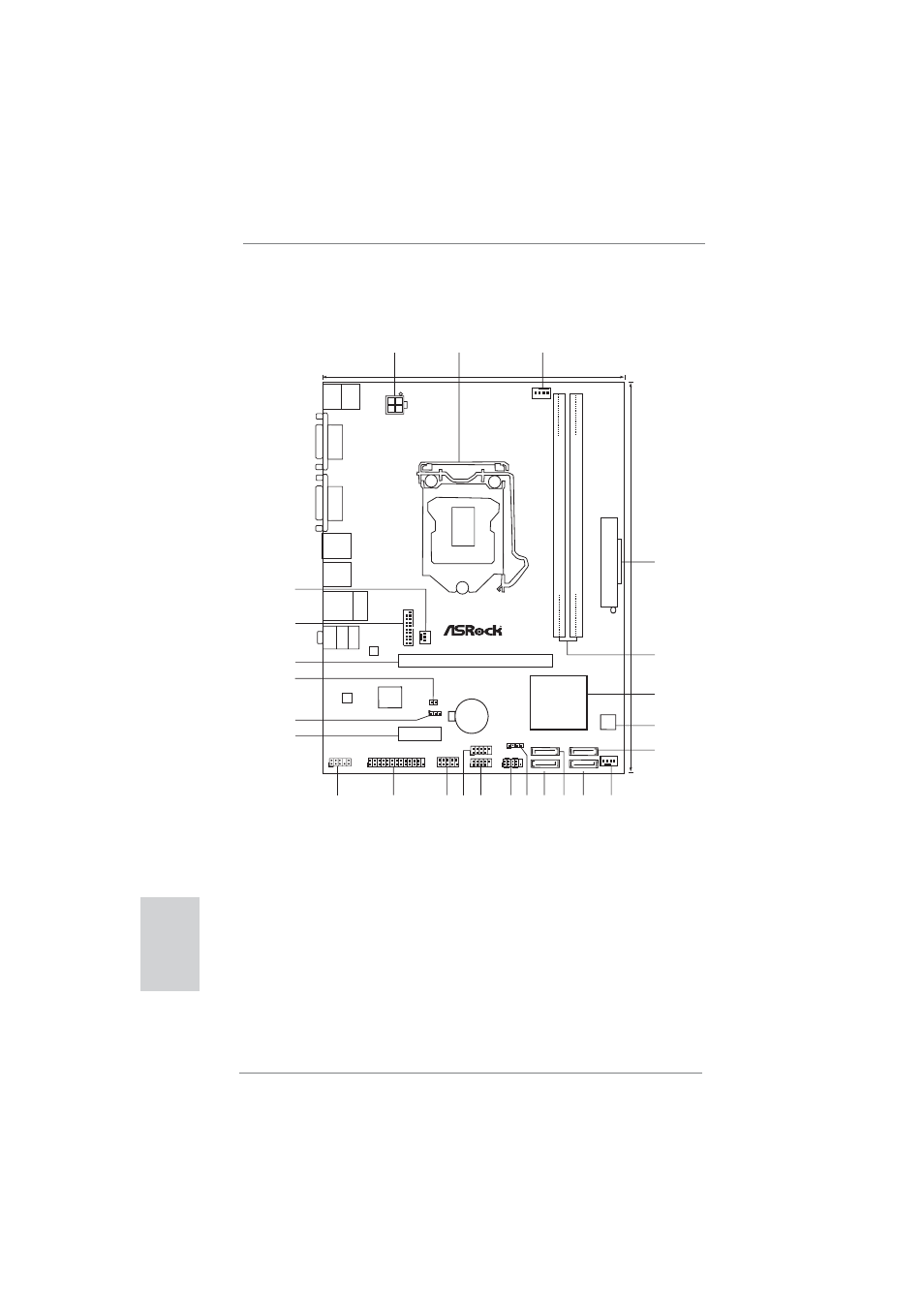

Motherboard Layout
English
1 ATX 12V Power Connector (ATX12V1) 13 Chassis Speaker Header (SPEAKER1)
2 1155-Pin CPU Socket 14 System Panel Header (PANEL1)
3 CPU Fan Connector (CPU_FAN1) 15 USB 2.0 Header (USB6_7)
4 ATX Power Connector (ATXPWR1) 16 USB 2.0 Header (USB8_9)
5 2 x 240-pin DDR3 DIMM Slots 17 COM Port Header (COM1)
(Dual Channel: DDR3_A1, DDR3_B1) 18 Print Port Header (LPT1)
6 Intel H61 Chipset 19 Front Panel Audio Header (HD_AUDIO1)
7 32Mb SPI Flash 20 PCI Express 2.0 x1 Slot (PCIE2)
8 SATA2 Connector (SATA2_1) 21 Clear CMOS Jumper (CLRCMOS1)
9 Chassis Fan Connector (CHA_FAN1) 22 Chassis Intrusion Header (CI1)
10 SATA2 Connector (SATA2_0) 23 PCI Express 2.0 x16 Slot (PCIE1)
11 SATA2 Connector (SATA2_3) 24 USB 3.0 Header (USB3_2_3)
12 SATA2 Connector (SATA2_2) 25 Power Fan Connector (PWR_FAN1)
A
T
XPWR1
DDR3_A1
(64
b
it,
2
40-pin
module)
DDR3_B1
(64
bit,
240-pin
module)
CPU_FAN1
Intel
H61
CMOS
Battery
17.3cm (6.8 in)
22.6cm
(8.9
in)
ErP/EuP
Ready
D
DR3
Front
USB
3.0 32Mb
BIOS
Super
I/O
CHA_FAN1
PWR_FAN1
1
SPEAKER1
PCIE1
PCIE2
1
HD_AUDIO1 COM1
1 1
LPT1
CLRCMOS1
1
HDLED RESET
PLED PWRBTN
PANEL1
1
LAN
PHY
AUDIO CODEC
USB6_7
1
USB8_9
1
SATA2_2 SATA2_0
SATA2_3 SATA2_1
ATX12V1
PS2
Keyboard
PS2 Mouse
VGA1
Top:
RJ-45
USB 2.0
T: USB4
B: USB5
USB 2.0
T: USB0
B: USB1
T op: LINE
IN
Center: FRONT Bottom: MIC
IN
USB 3.0
T: USB0
B: USB1
1 2 3
4
5
6
7
9 10 11 12
8
14 13 15 16 17 18 19
20
21
22
24
RoHS
DVI1
X
Fast
LAN
X
Fast USB
X
Fast RAM
H61M-DG3/USB3
USB3_2_3
1 CI1
23
25
