Installation Procedure
These steps apply to all mounting conditions. Although this may
not pictorially represent your application, your installation proce-
dure should follow these steps.
ACU-RITE bracket kit instructions supercede this
section.
•
Adjust drill depths and fastener lengths as required.
•
Contact your authorized ACU-RITE distributor if assistance is
required.
First Steps:
1. Move the machine axis to its center of travel.
2. Mark the machine axis location so that it can be recentered
easily.
3. Slide the reading head with the alignment brackets attached,
along the scale case to the center of the scale case.

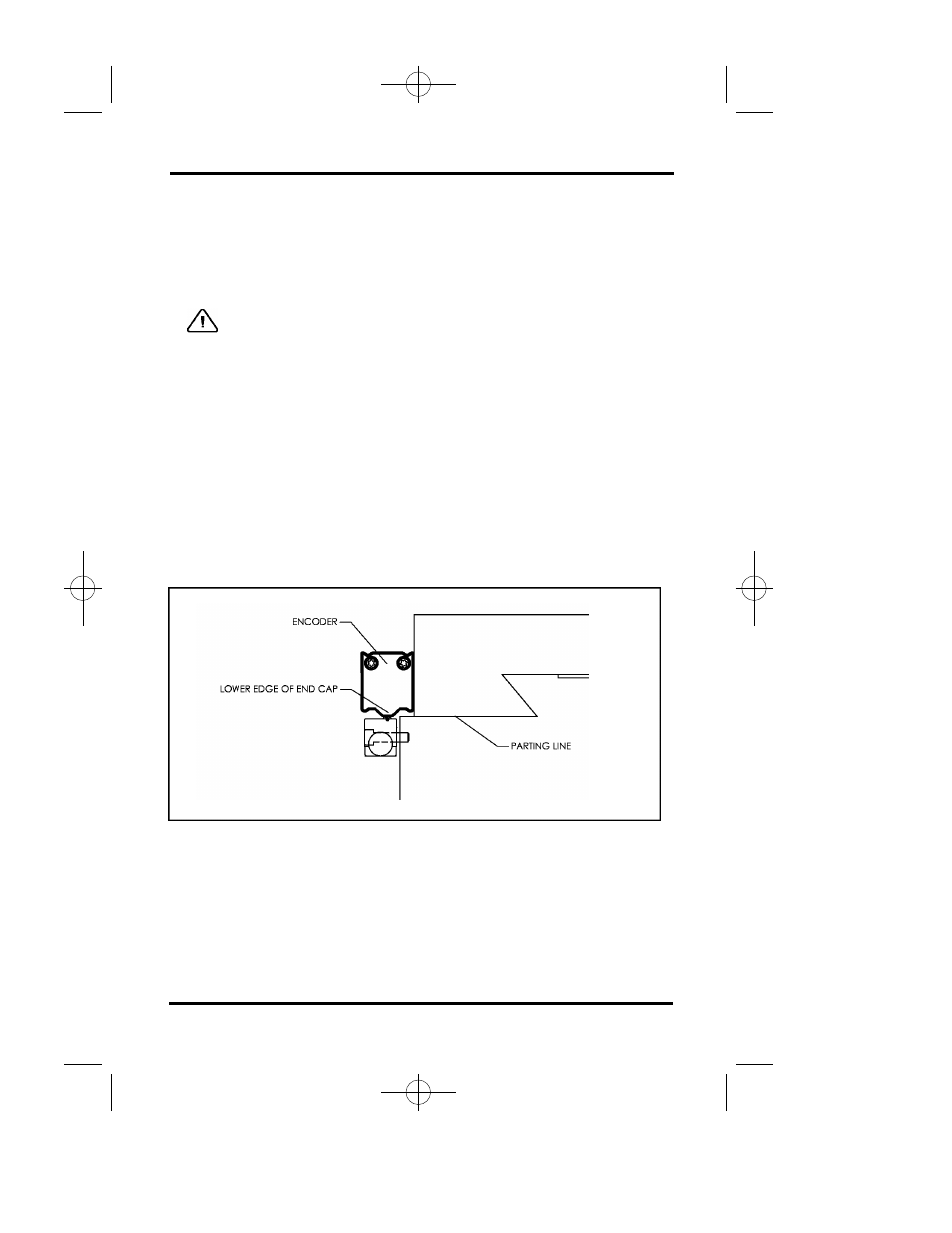

4. Locate the bottom of the end cap flush with the axis parting line.
5. Mark one end mounting hole.
6. Drill and tap the first end mounting hole. Drill and tap a
10-32 x 1/2” deep hole for a top mounting form or a
1/4-20 x 1/2” deep hole for an end mounting form. Attach the
scale.
