Reference, Mounting information – ACU-RITE Micro-Line T User Manual
Page 39

36
MICRO-LINE
Reference Manual
REFERENCE
•

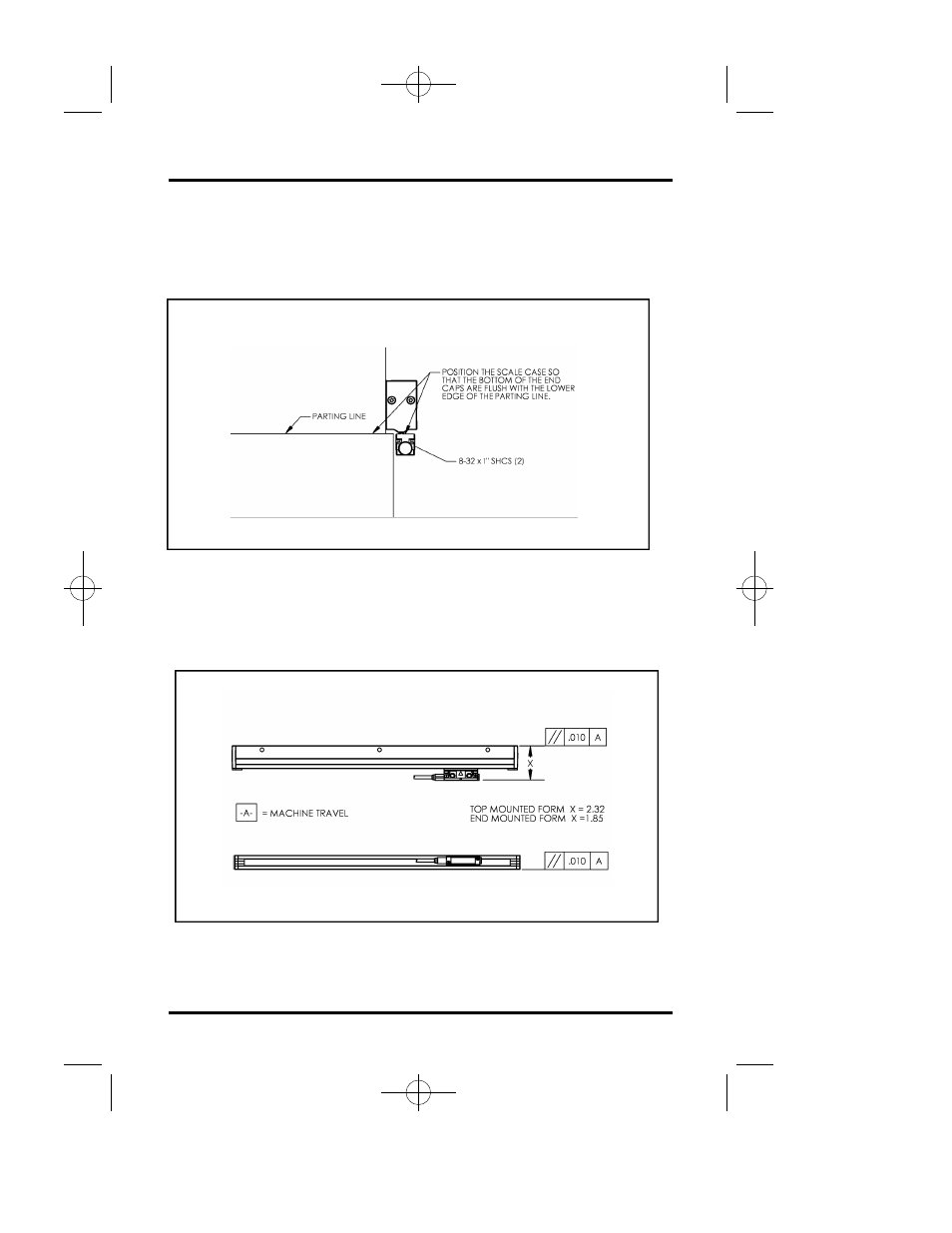

Tolerances of .010” TIR apply to all mounting dimensions.
•
Mount the scale close to machine guide ways to ensure system
accuracy.
•
Follow kit instructions when using an ACU-RITE bracket kit.
Mounting Information
•
Mounting surfaces offset greater than .18” between the
reading head and mounting surface require a spacer or bracket.
•
Use reading head leveling set screws to adjust for gap behind
the reading head.
