38 I
I - 3 Milling Specific Oper
ations
Circle, and Linear Patterns
This section describes the Circle, and Linear pattern tables, and
capabilities. The 300S provides storage of 10 user definable patterns
each for Circle, and Linear. Once patterns are defined, they are
remembered when power is cycled. They can be recalled, and
executed from the DRO, or from a program.
The View Graphic enables verification of the hole pattern before you
start machining. It is also useful when selecting holes directly,
executing holes separately, and skipping holes.
To access the Circle Pattern Table, or Linear Pattern Table, press the
FEATURES soft key. The CIRCLE PATTERN, and LINEAR PATTERN
soft keys are shown. Pressing one of these soft keys will open the
corresponding hole pattern table.

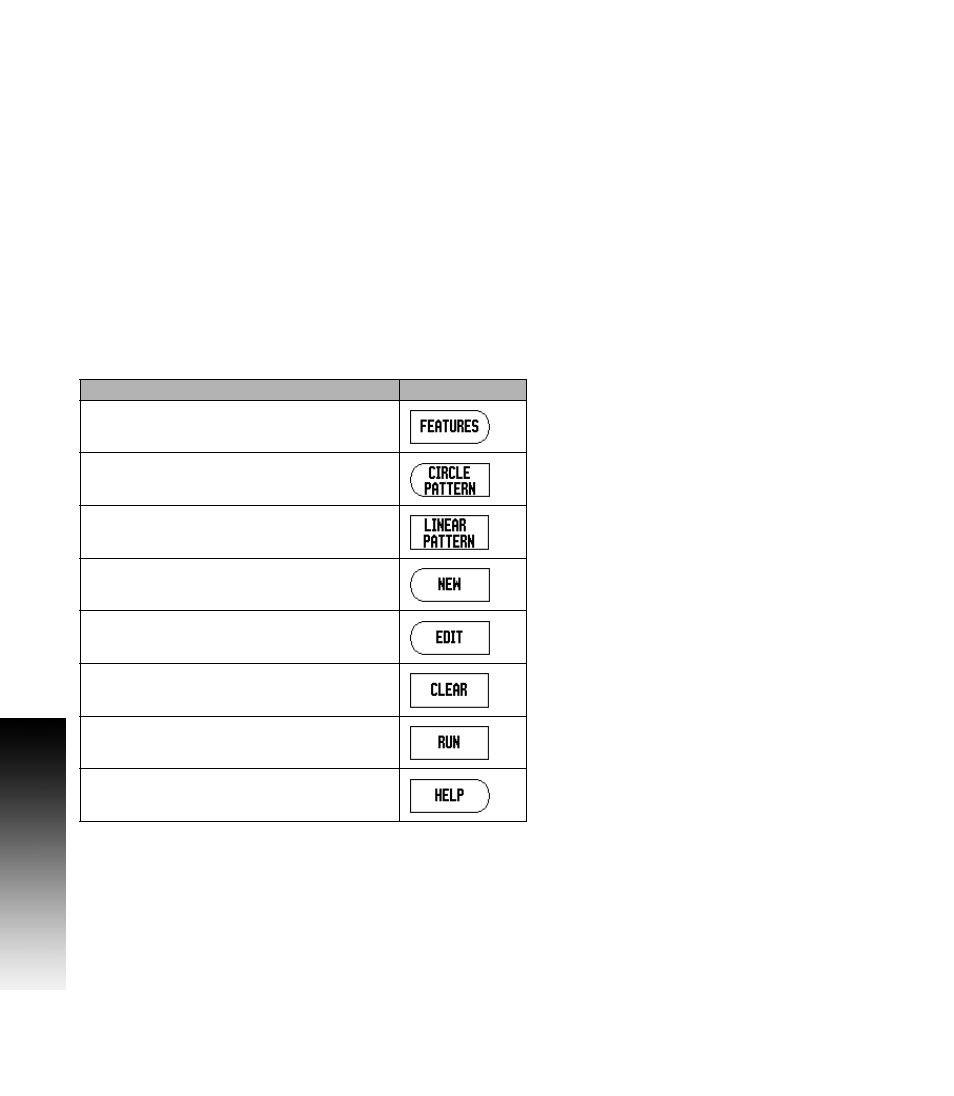

Soft key Functions
The following soft keys are available while in the Circle, and Linear
Pattern Milling feature.
Function Soft key
Press to access the FEATURES soft keys.
Press to access the circle pattern table.
Press to access the linear pattern table.
Press to create a new circle, or linear pattern.
Press to edit an existing pattern.
Press CLEAR to delete an existing pattern.
Press RUN to execute a pattern.
Press HELP for additional information about
the pattern.
