4. How to Use
User Guide Page 4-20

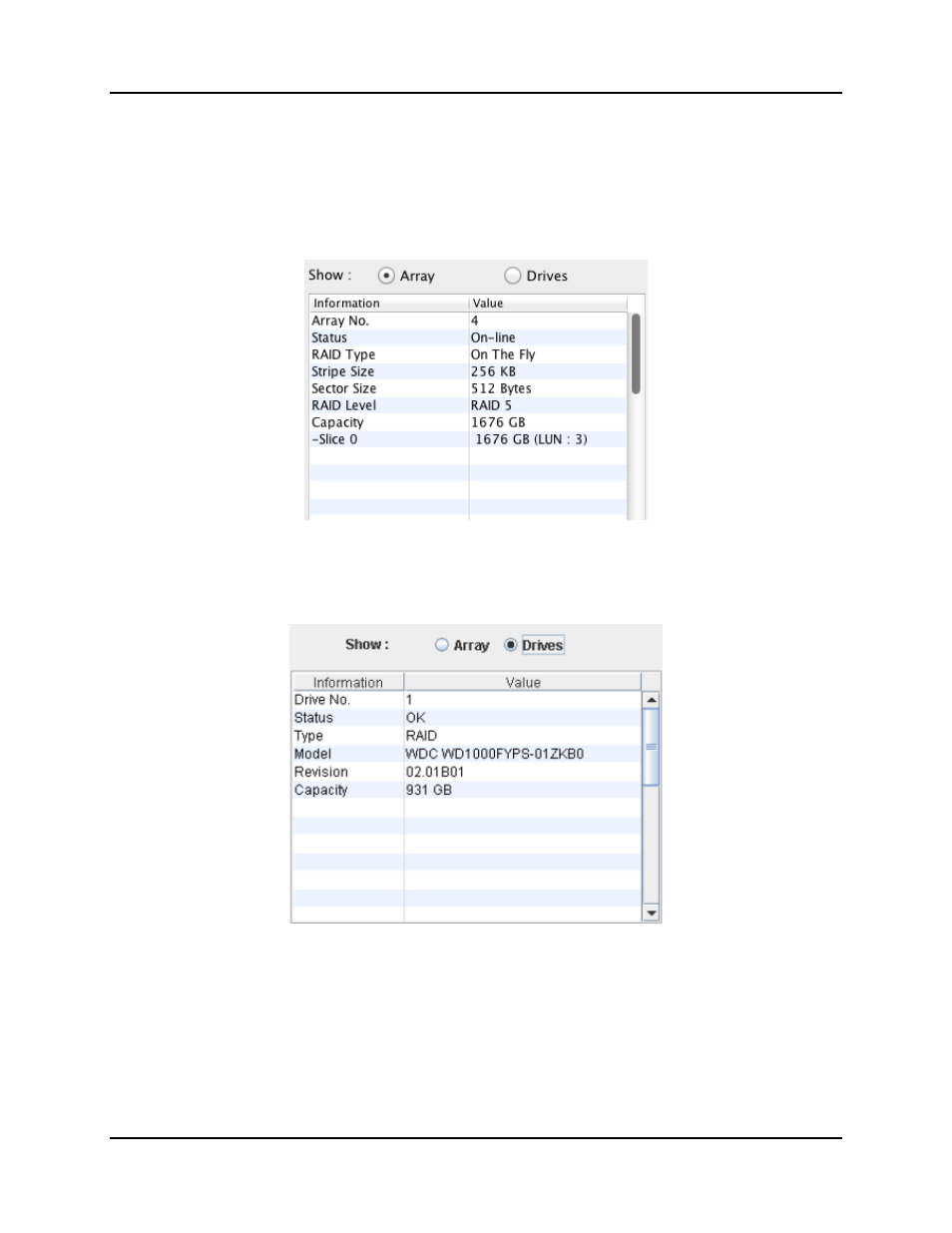

Clicking the Array radio button displays information about the array: the array number,
Status, RAID type, stripe size, sector size, RAID Level, capacity, and slice.
The status of array actions, such as initialization, migration, and expansion, can be
viewed under the Array tab.
Clicking the Drives radio button displays information about individual drives. Click on
each drive image to view the drive number, status (On-line or Failed), drive type (RAID
or Spare), model, revision status and capacity.
Drives
Displays the overview of all drives for the selected controller.
Snapshot
The progress of the snapshot is displayed in the snapshot tab. To enable the snapshot
function, see Options > Snapshot.
