3. Installation
User Guide Page 3-6
2. Slide the disk array into the rack and secure into place with the fixing screws.

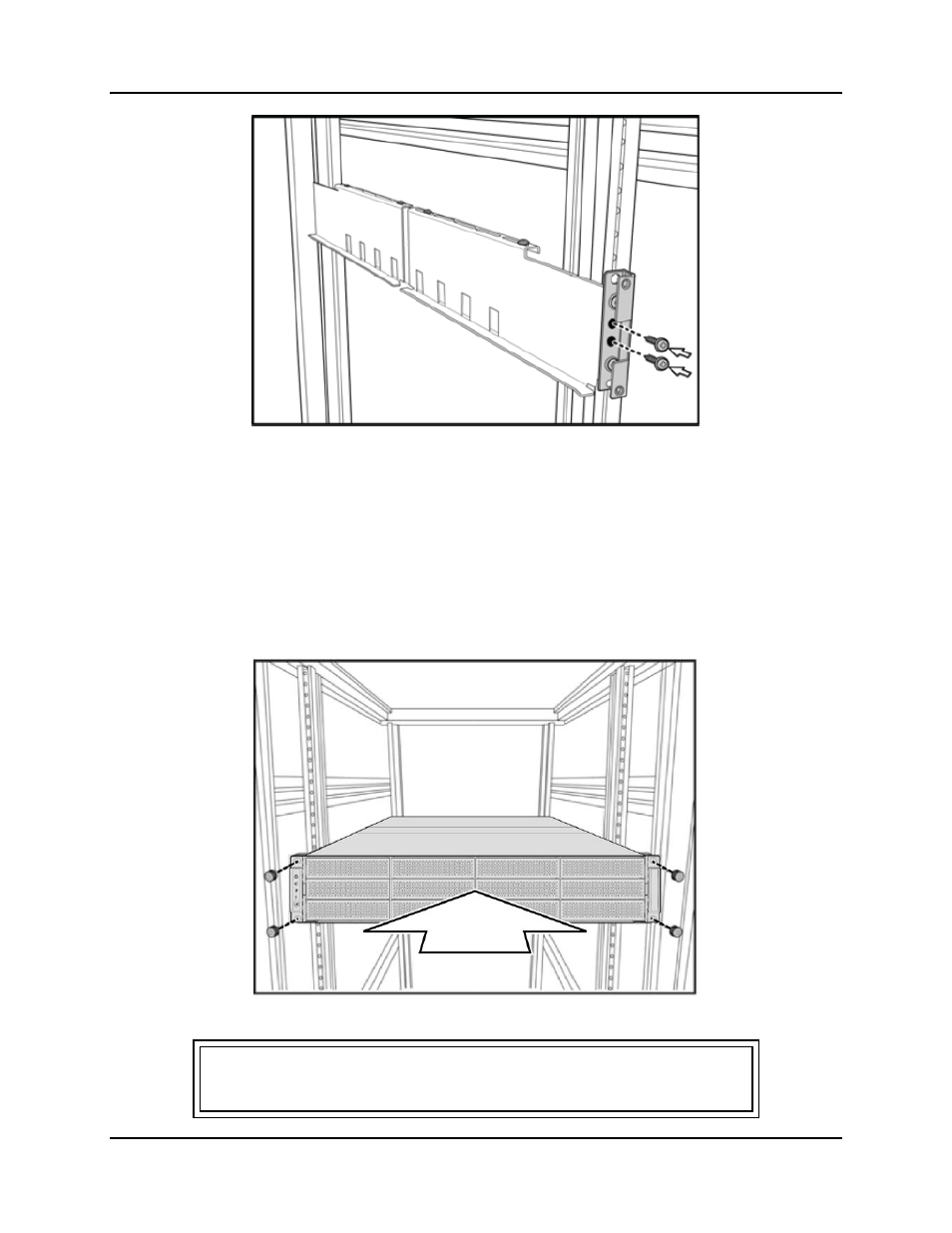

To mount the disk array in a rack:
1. Attach eight rack nuts into the rack, making sure that they correspond with the
mounting points on the rails.
2. Attach the rails and adjust the length to fit the rack.
3. Secure the rails with two nuts and bolts on both the front and back of the rack.
4. Tighten the locking screws on the top of the rails.
5. Slide the disk array into the rack and secure it into place with the fixing screws.
Caution
The disk array is heavy. To prevent injury, follow proper lifting
procedures and always move the disk array with the help of at
