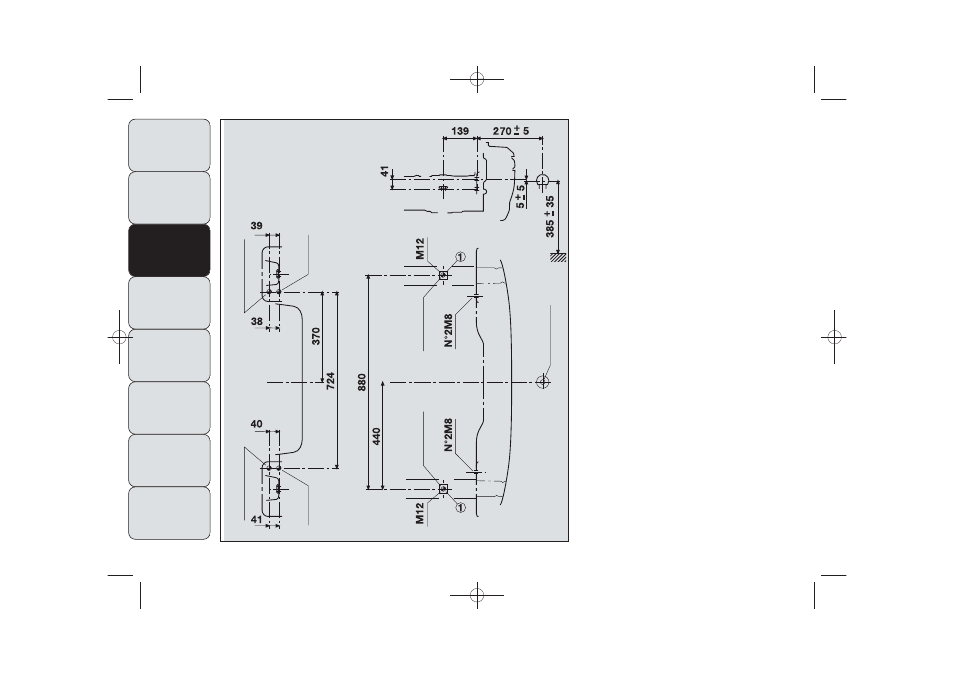

Assembly diagram fig. 119

The tow hook structure must be fas-
tened in the points shown by the sym-
bol

Ø using a total of 4 M8 screws and

2 M12 screws.

The internal counterplates 1 are to be
at least 6-mm thick. The hook should
be fastened to the body avoiding any
type of drilling and trimming of the
rear bumper that remains visible when
the hook is removed.

IMPORTANT It is compulsory to fas-
ten a label (plainly visible) of suitable size
and material with the following word-
ing:

MAX. LOAD ON BALL 60 kg

After fitting, screw holes shall be
sealed to prevent a exhaust gas inlet.

fig. 119

F0Z0226m

Existing hole

Standard ball

Existing screw
