ENGLISH
Step 2: Add Arm Assembly to a television with a flat back
NOTE: If your television has a curved back, or any other obstruction, proceed directly to Step 3.

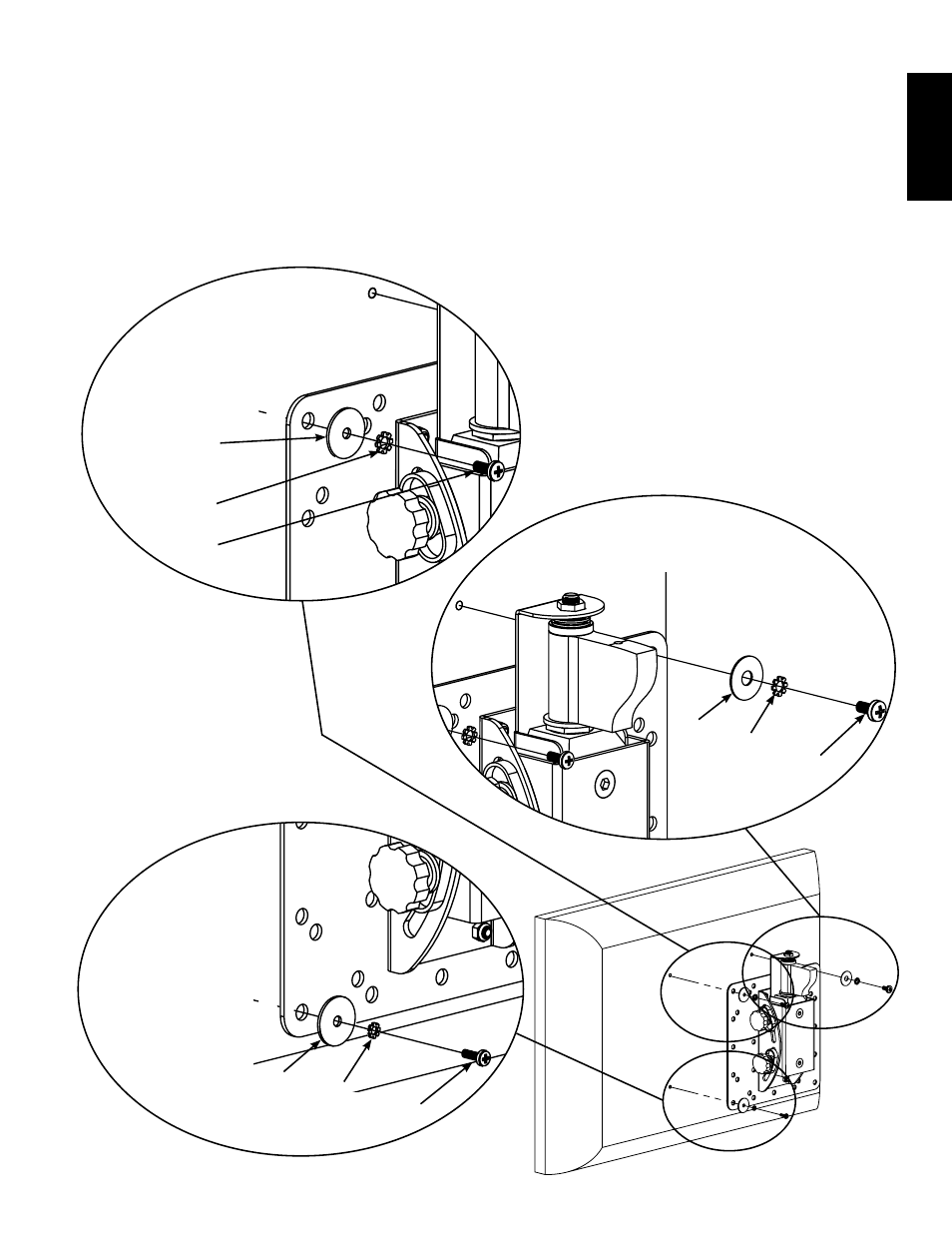

First, determine the diameter of the Bolt (C,D,E) your TV requires by hand threading them into the threaded insert on the
back of the TV. If you encounter any resistance stop immediately! Once you have determined the correct diameter, see the
appropriate Diagram below. You will thread the Bolt through the appropriate Lock Washer (I,J,K), a Washer (N, O), the Moni-
tor Plate, and finally thread it into the TV. Proceed to tighten all 4 Bolts until tight with a phillips screw driver.
NOTE: Arm has been cutaway in this Step to show critical parts.
M5 Diameter Bolt
M6 Diameter Bolt
M4 Diameter Bolt
N
J
D
O
K
E
N I
C
