55

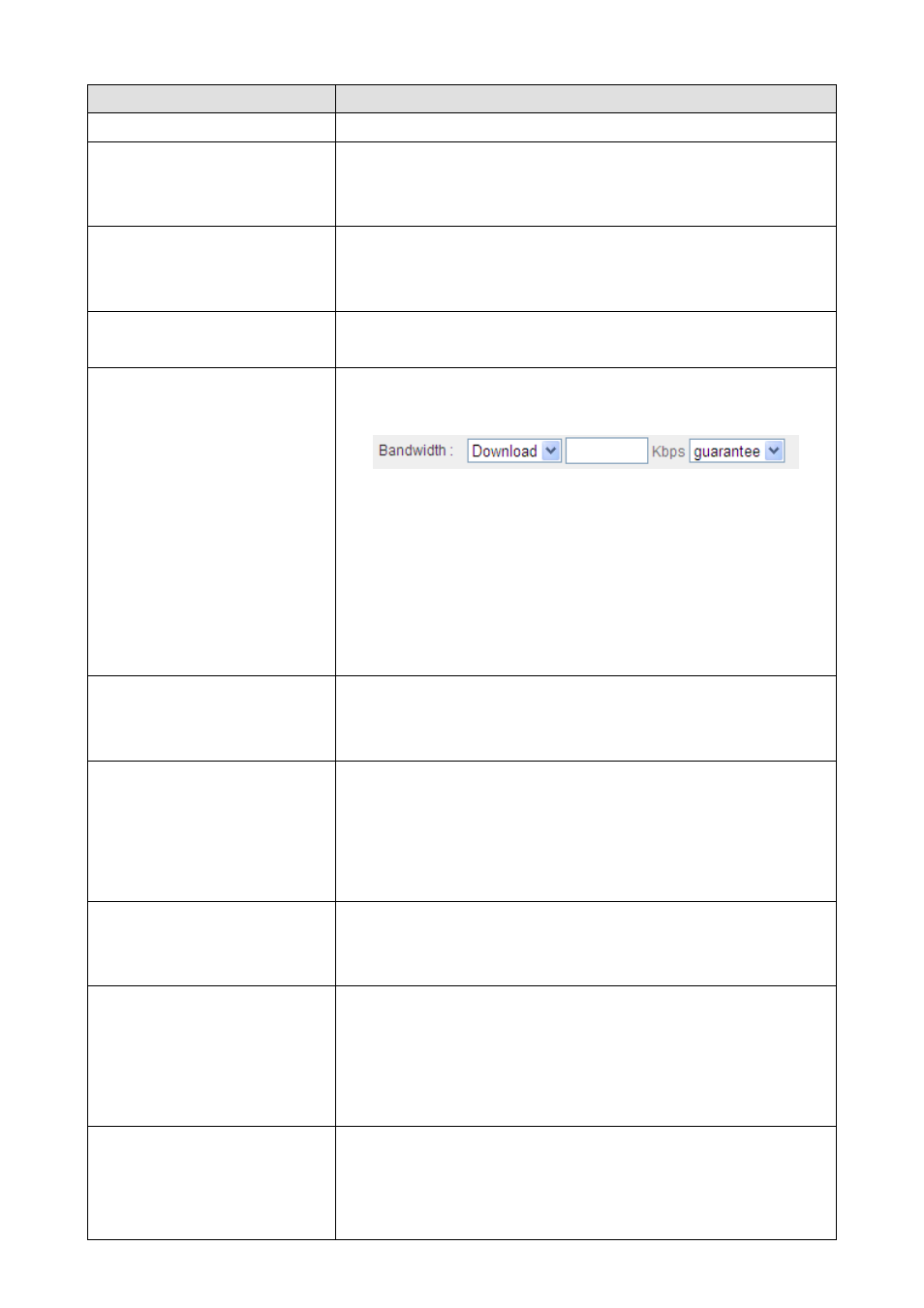

Item Name Description
Enable QoS Check this box to enable the QoS function.
Total Download
Bandwidth You can set a limit to the total download bandwidth
here. To disable download bandwidth limitation, input
“0” here.
Total Upload Bandwidth You can set a limit to the total upload bandwidth here.
To disable upload bandwidth limitation, input “0”
here.
Rule Name Input a name for this QoS rule for identification
purposes.
Bandwidth Set the speed limitation for this QoS rule here:
1 2 3
1. Select the direction of data transfer for this rule
2. Input the maximum data rate for this QoS rule
3. Define the data rate value as “Guarantee”
(guaranteed bandwidth) or “Max” (maximum
bandwidth allowed)
Local IP Address Set the IP address range that will be affected by this
QoS rule. If only one IP address is involved, input the
IP address in the left field only.
Local Port Range Set the port range that will activate this QoS rule. If
only one port is involved, input a single number here
(1 to 65535). If multiple ports are involved, input the
starting and ending port numbers in x‐y format (e.g.
10‐20).
Remote IP Address Set the remote IP address range that will be affected
by this QoS rule. If only one remote IP address is
involved, input the IP address in the left field only.
Remote Port Range Set the remote port range that will activate this QoS
rule. If only one remote port is involved, input a single
number here (1 to 65535). If multiple remote ports are
involved, input the starting and ending port numbers
in x‐y format (e.g. 10‐20).
Traffic Type If you are creating a QoS rule for a specific type of
traffic, you can define it here. You do not need to fill in
any port range information (above) for this type of
QoS rule.
