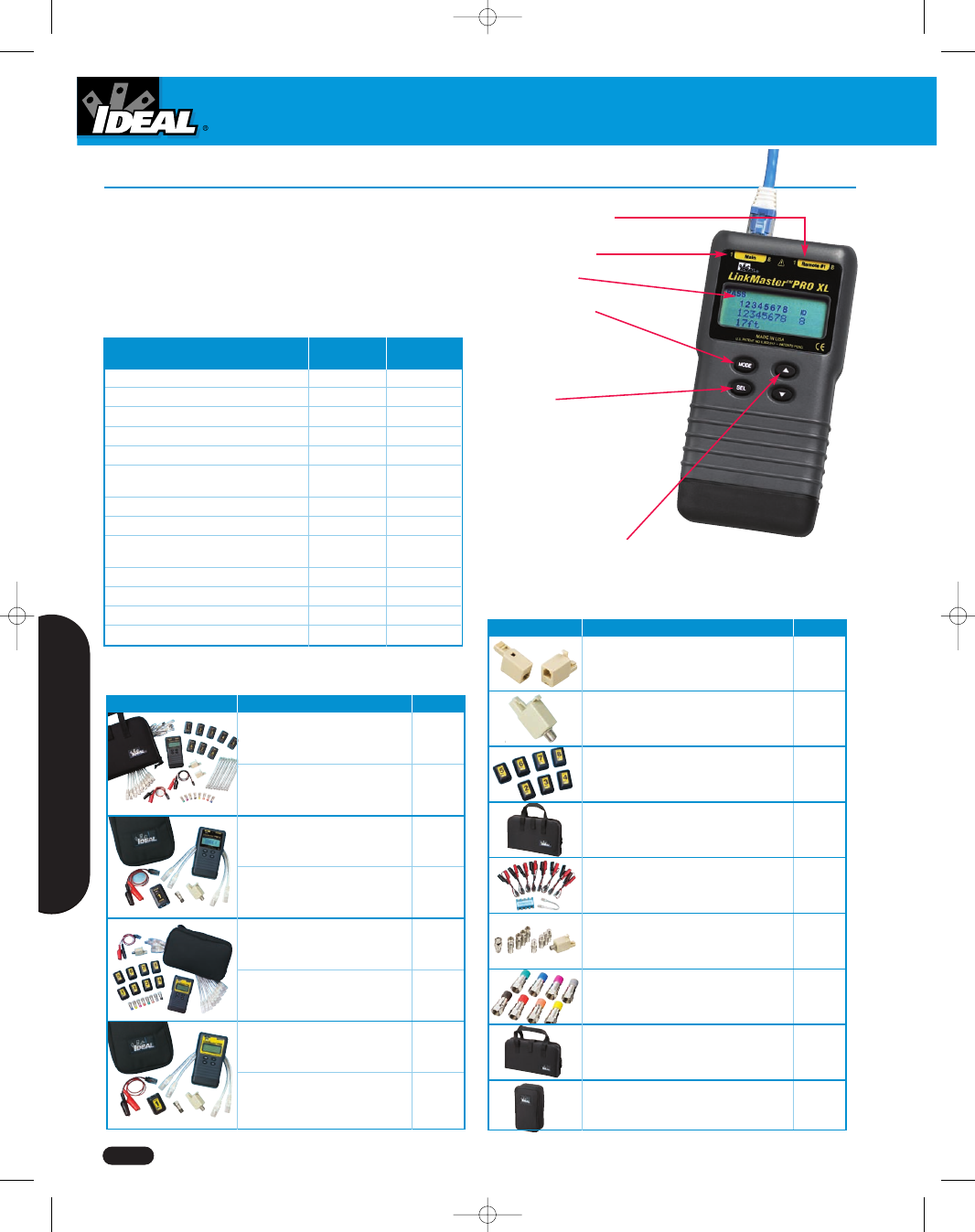

LinkMaster™ PRO and LinkMaster™ PRO XL Testers
Six Modes of Operation
• Cable Test
• Hub Blink
• Tone
• Length
• Coax
• Setup Mode
Main Jack for all Testing
Remote Jack for Patch Cords
Larger Backlit LCD
Screen
Press SEL to:
• Turn on back-light (Hold 2 sec)
• Execute current displayed mode
• Start new test cycle
• Select one of four tones
• Change pair being measured
for length
• Change user selectable options
– Beep On/Off
– Unshielded or Shielded Cable
– Units—Feet or Meters
Arrow Keys
• To change length constant
• To change pair or pin selection for tone
• To scroll through setup selectable options
Features
The LinkMaster™ PRO & LinkMaster™ PRO XL Testers enable
installers, contractors and maintenance technicians to map, test
and troubleshoot data and voice communication cable and coax
runs. Rugged, versatile, and easy-to-use, they have mastered the
link between performance, simplicity and value for both commercial
and residential applications.
RJ-45 to RJ-11Jack Adapter (2/card),
POP Packaging
RJ-45 to F-Connector Adapter (2/card),
POP Packaging
LinkMaster™ Pro XL Remotes UTP/STP,
2-8 only (white carton)
LinkMaster™ Pro XL Large Replacement Case
BNC Accessory Kit
Set of Eight Color-Coded F-Terminators for
LinkMaster™ Pro or Pro XL
LinkMaster™ Pro Large Replacement Case
Replacement Economy Kit Case
LA-4233
LA-4234
LA-4235
H-3412
LA-4157
LA-4173
LA-4159
H-3324
H-4868
Accessories
Description Cat. No.
Kits
Description Cat. No.
LinkMaster™ PRO XL Kit w/eight
remotes
33-880
LinkMaster™ PRO XL Kit w/eight
remotes and Tone & Probe
33-881
LinkMaster™ PRO XL Kit w/eight
remotes – International Packaging
33-886
LinkMaster™ PRO XL Economy Kit 33-887
w/one remote
LinkMaster™ PRO Kit w/eight
remotes – Unshielded Jumper Cables
33-825
LinkMaster™ PRO Kit w/eight
remotes – Shielded Jumper Cables
33-826
LinkMaster™ PRO Economy Kit w/one
remote – Unshielded Jumper Cables
33-835
LinkMaster™ PRO Economy Kit w/one
remote – Shielded Jumper Cables
33-836
Description
LinkMaster™ LinkMaster™
PRO PRO XL
Blinks the hub
■
Displays length measurement with test results
■
Remotes have both RJ-11 and RJ-45 jacks
■
Backlight LCD screen
■
Measures length on UTP, STP and coax
■ ■
Tests UTP for shorts, opens, miswires, reversals,
■ ■
split pairs and shield continuity
Test coax for opens, shorts and continuity
■ ■
Shows wiring errors
■ ■
Tests and identifies with all eight twisted pair
and coax remotes ■ ■
Sends tone with four different signals ■ ■
Displays test results in wire map format ■ ■
Snap-off battery cap ■ ■
9 volt battery included ■ ■
Security/Speaker Kit – 8-Position Modular
Adapter and eight RJ-45 to Alligator Clip
Lead Sets
