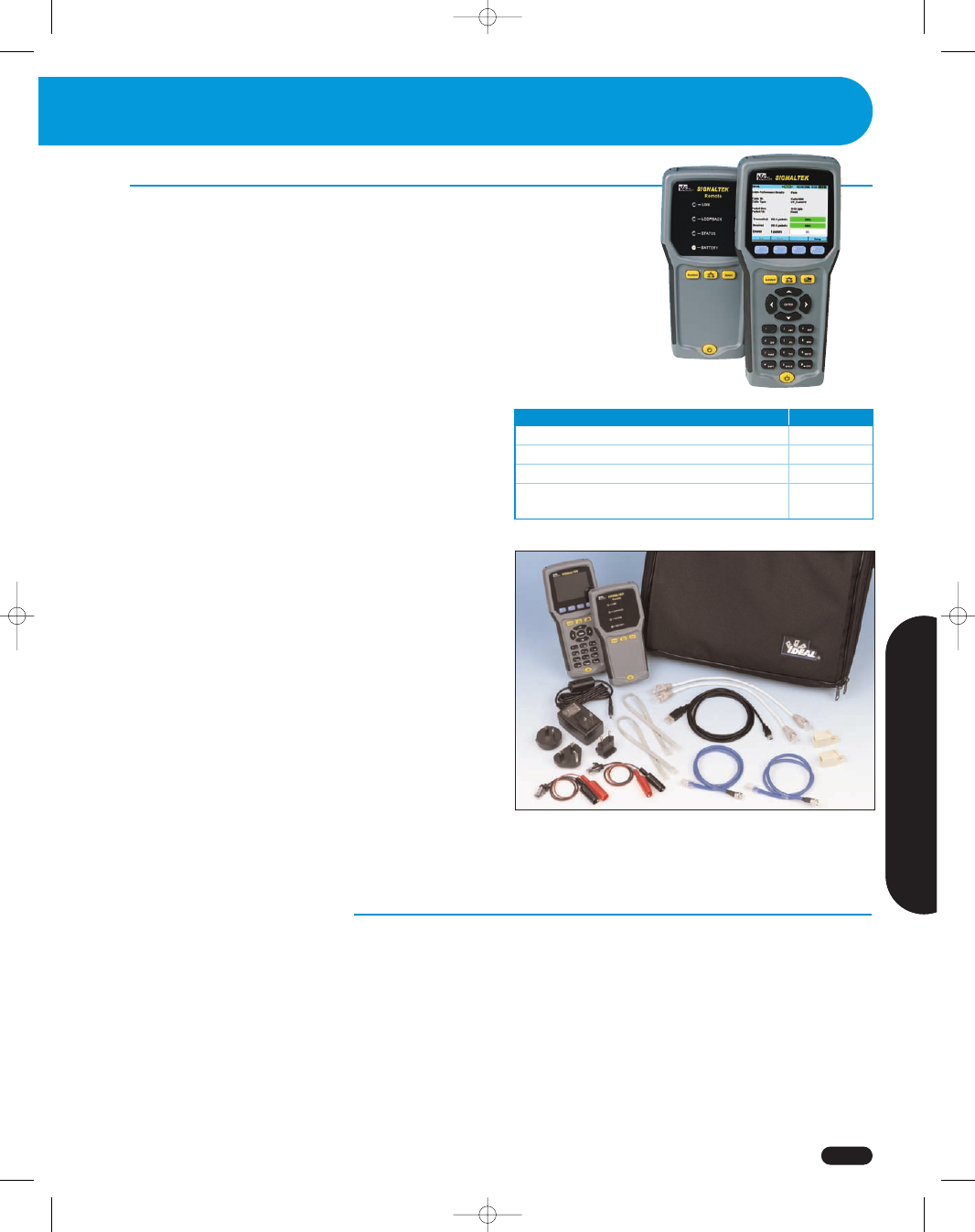

SIGNALTEK™ Gigabit Ethernet Certifier
SIGNALTEK™ provides a technically innovative method to test and document performance of voice,
data, video and VoIP applications for cabling installers and network technicians. It tests the link's
ability to support applications by transmitting Ethernet packets on the wire and measuring the link
performance according to IEEE 802.3ab Gigabit Ethernet standard. By monitoring transmitted and
received data packets, it can report the BERT (Bit Error Rate Test) for the link. It uses the latest
generation of Gigabit Ethernet technology to provide the best performance to this new class of testers.
Features of SIGNALTEK™
■
Unique - Simulate real world network traffic with full-duplex
gigabit performance testing
■
Unique - User selectable 10/100/1000 Bit Error Rate Testing
(BERT) to ensure performance for all Ethernet devices
■
Unique - Smart autotest function detects line condition and
automatically chooses appropriate test to run to allow testing
cable that is terminated with a SIGNALTEK remote, a
network device or unterminated
■
Unique - Save time using the remote to perform 10/100 or
gigabit service detection AND initiate an Autotest when main
unit is connected
■
Unique - Maximum flexibility with two USB ports. Connect
to a computer to upload test results, connect directly to a
printer, or connect a USB memory drive for unlimited storage
■
Unique - Get maximum coverage with a full two-year warranty
■
Unique - Configure multiple target IP addresses for pinging
several network devices to ensure communications with
servers, printers, IP cameras, home automation controls, etc.
■
Offers network interrogation tools such as link establishment,
port LED blink and ping
■
TDR to accurately measure length and locate shorts and opens
■
ARP test discovers active network devices
■
Exceeds 100m measurement distance required by IEE
802.3ab gigabit Ethernet standard
■
Easy-to-read Pass/Fail performance reports that can be
stored and printed for customer documentation
■
Multiple BERT configurations for VoIP, data, and video-over-
IP specific testing
■
Brilliant high-resolution color display visible in any lighting
condition
■
Uses readily available AA batteries
■
Wiremap faults easily with selectable 568 A/B color coding
Description Cat. No.
SIGNALTEK™ Kit 33-974
Universal 120-240V Power Adapter 4010-00-0136
RJ-45 to 8 Head Alligator Clip K-7920
Replacement Cable Accessory Kit - contains all original
cables in SIGNALTEK™ Kit
1219-91-0003
#33-974
SIGNALTEK™ Specifications
Cable Types
■
Voice/phone cable - USOC/RJ-11/RJ-12 interface
■
Data Cable - STP/UTP (RJ-45) for CAT 3/5e/6/6a/7 cabling
■
Coax cable - via RJ-45 to F Patchcord, series 6, 59, 58 cabling
(50/75 Ohm)
Physical Dimensions
■
Display handset: 7.9” L x 3.6” W x 1.5” D
■
Remote handset: 6.8” L x 3.5” W x 1.5” D
■
Near-end Weight: 12.5 oz.
Ports/Connections
■
RJ-45 test interface port
■
Mini USB “A” port
■
Standard USB “B” port
■
DC power input for long-term network monitoring
