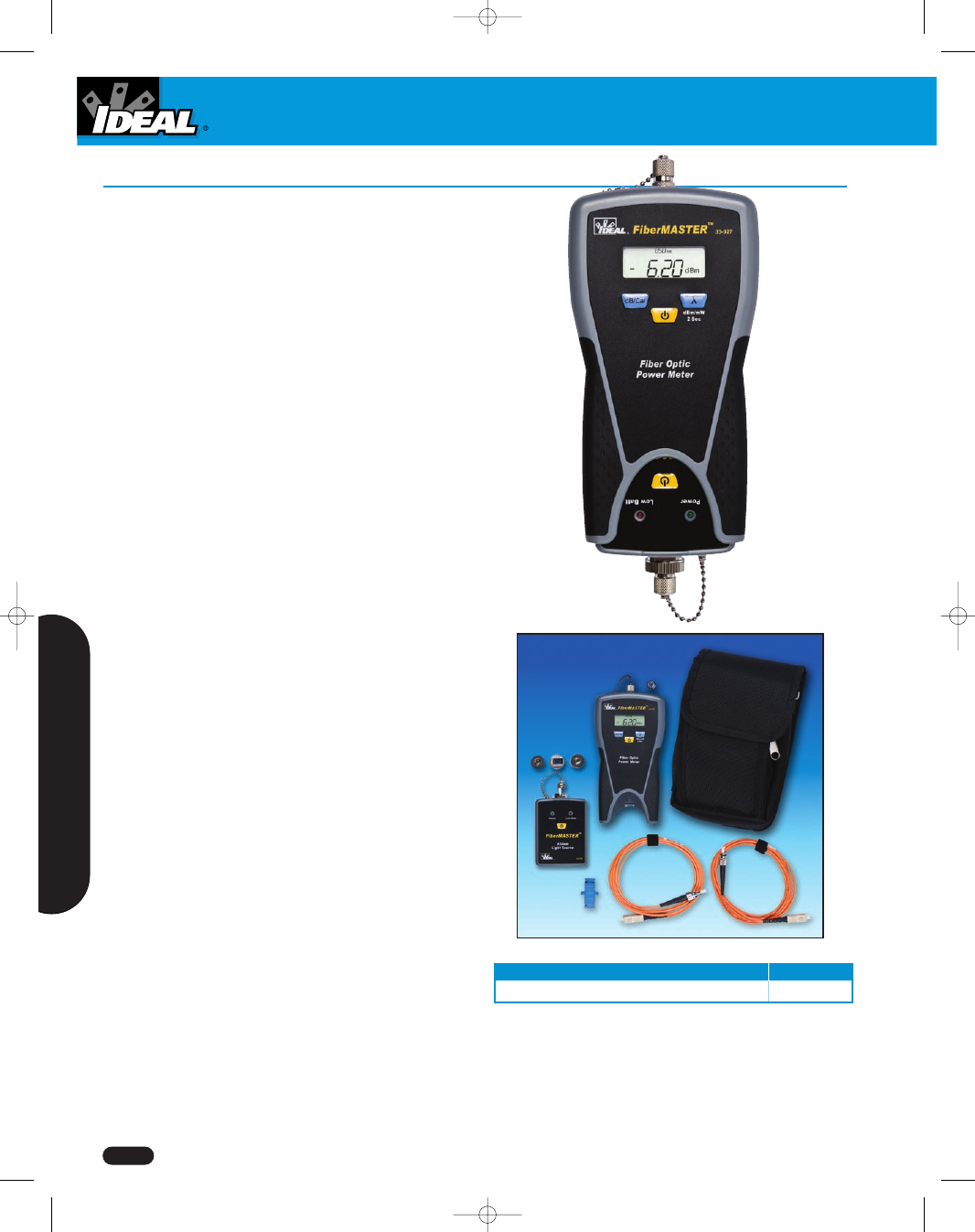

FiberMASTER™ Fiber Optic Test Kit
Description Cat. No.
Kit with integrated remote and accessories 33-928
Measure fiber optic power in milliwatts (mW) and decibel-milliwatts
(dBm) to test and troubleshoot active LANs. Quickly measure cabling
loss with the automatic calibration feature that stores reference power
from any light source for quick dB loss calculations. Plus, the 1490nm
wavelength measurement mode is perfect for troubleshooting
emerging Fiber-To-The-Home cabling systems.
■ Fiber Optic Power Meter & Light Source — Four wavelength
power meter for multimode and single mode testing, and 850nm
multimode LED light source.
■ Calibration Function — Stores reference power level for quick
dB loss measurements eliminating the need to manually calculate
loss.
■
Save Time and Money — Power meter features 2.5mm
universal and FC adapters, light source includes ST
® , SC and FC
adapters to test the most common interfaces.
■
Ready for FTTx — 1490nm measurement wavelength for use
with nearly all single mode Fiber-To-The-Home applications.
■ Designed for the Field — Unique “docking” light source and
easy three-button operation make this the perfect fiber tester for
use in the field.
FiberMASTER Kit Includes:
• 33-926 Light source, 850nm LED with ST ® , SC and FC adapters
• 33-927 Power meter, 4 wavelength with universal 2.5mm and
fixed FC adapter
• 2x FC-SC 62.5um multimode cables
• 1 SC calbration coupler
• Carrying case
• English, Spanish, German, French, Portuguese, Italian and Chinese
user’s manual
Power Meter Specifications
Wavelength 850, 1300/1310, 1490, 1550nm
Detector InGaAs
Measurement Range -60 to +3dBm
Accuracy ±5%
Display Resolution .01
Connector Universal 2.5mm w/FC adapter
Power Supply AAA Alkaline Battery x 3
Operating Time 360 hours
Operating Temp -10 to +60°C
Storage Temp -25 to +70°C
Light Source Specifications
Wavelength 850nm LED
Output Power -6 to -7 dBm Typical
Stability .05dB after 15min, 0.1dB over 8 hrs
Connector 2.5mm w/ST ® , SC, FC adapters
Power Supply AAA Alkaline Battery x 3
Operating Time 40 hours
Operating Temp -10 to +60°C
Storage Temp -25 to +70°C
