www.idealindustries.com 1-800-435-0705 for Customer Service G-18

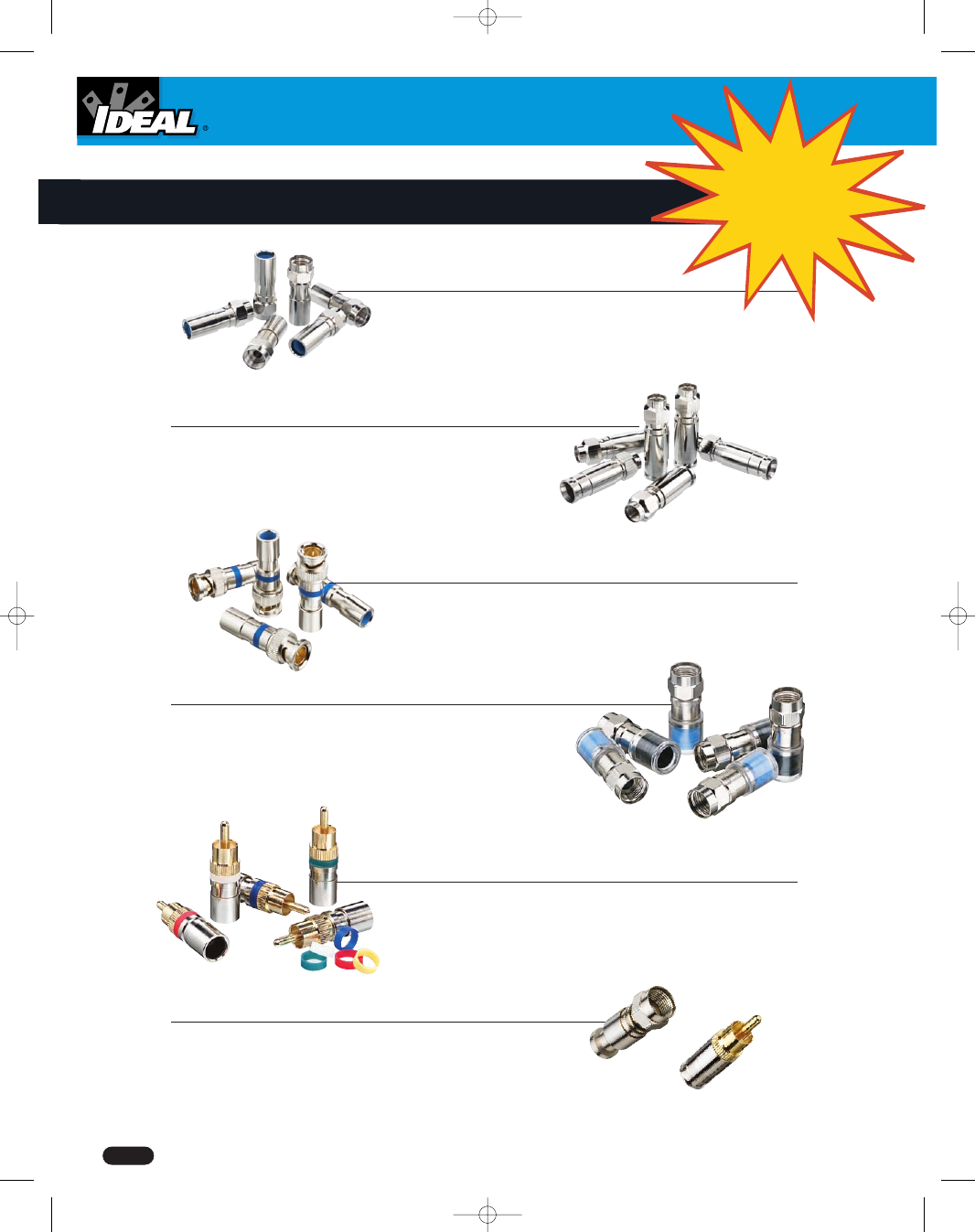

Compression Connectors for Every Application
Reg/Tri/Quad & Plenum F-Connectors
• Fits 60% regular, tri-shield and quad cables
• Nickel-plated, brass-construction for superior corrosion resistance
• Approved for use by satellite and cable TV companies
• Approved for indoor and outdoor use
• Use 30-603, 30-793 or 30-633 Compression Tools
RG-11 F-Connectors
• Fits 60% regular RG-11 cable
• Nickel-plated, brass-construction for superior corrosion
resistance
• Approved for use by satellite and cable TV companies
• Approved for indoor and outdoor use
• Use 30-603 or 30-793 Compression Tools
OmniCONN™ F-Connectors
• Non corrosive nickel plated brass body and polycarbonate bushing
• Delrin/Nylon adapter sleeve and o-ring provide double protection for
a watertight seal
• Free spinning hex nut for ease of installation onto all 7/16 ports
• 75 ohm nominal impedance
• Bandwidth up to 3 GHZ
Mini RCA Connectors
• For use with most 21-25 AWG mini coax cable
• Body is nickel plated for outstanding corrosion resistance
• Mini RCA head is gold plated for superior contact performance
• Bandwidth is 5 MHz - 3 GHz, Impedence is 75 Ohms (nominal),
return loss min. -30 dB @ 3 GHz
RCA Connectors
• Constructed of nickel plated brass and gold plated head
• 75 ohm nominal impedance
• Bandwidth up to 3 GHZ
• Compatible with 30-603 and 30-793 Compression Tools
F-Connector
RCA Connector
BNC Connectors
• Nickel-plated, brass-construction for superior corrosion resistance
• Moisture-inhibiting design
• Approved for indoor and outdoor use
• Use 30-793 Compression Tool
• 75 Ohm nominal impedance
• Gold-plated pin contact area
NEW
