Figure 3-2 simple transfer switching, Figure 3-3 automatic transfer switch, Figure 3-2 – Xantrex Technology PROwatt 1000 User Manual
Page 31: Figure 3-3
Connecting to an Existing AC Circuit
3–9
Manual and automatic transfer switches are available from marine and RV
dealers. Make sure you buy an approved switch with AC voltage and current
ratings that exceed the output ratings of both the inverter and the other
power source.

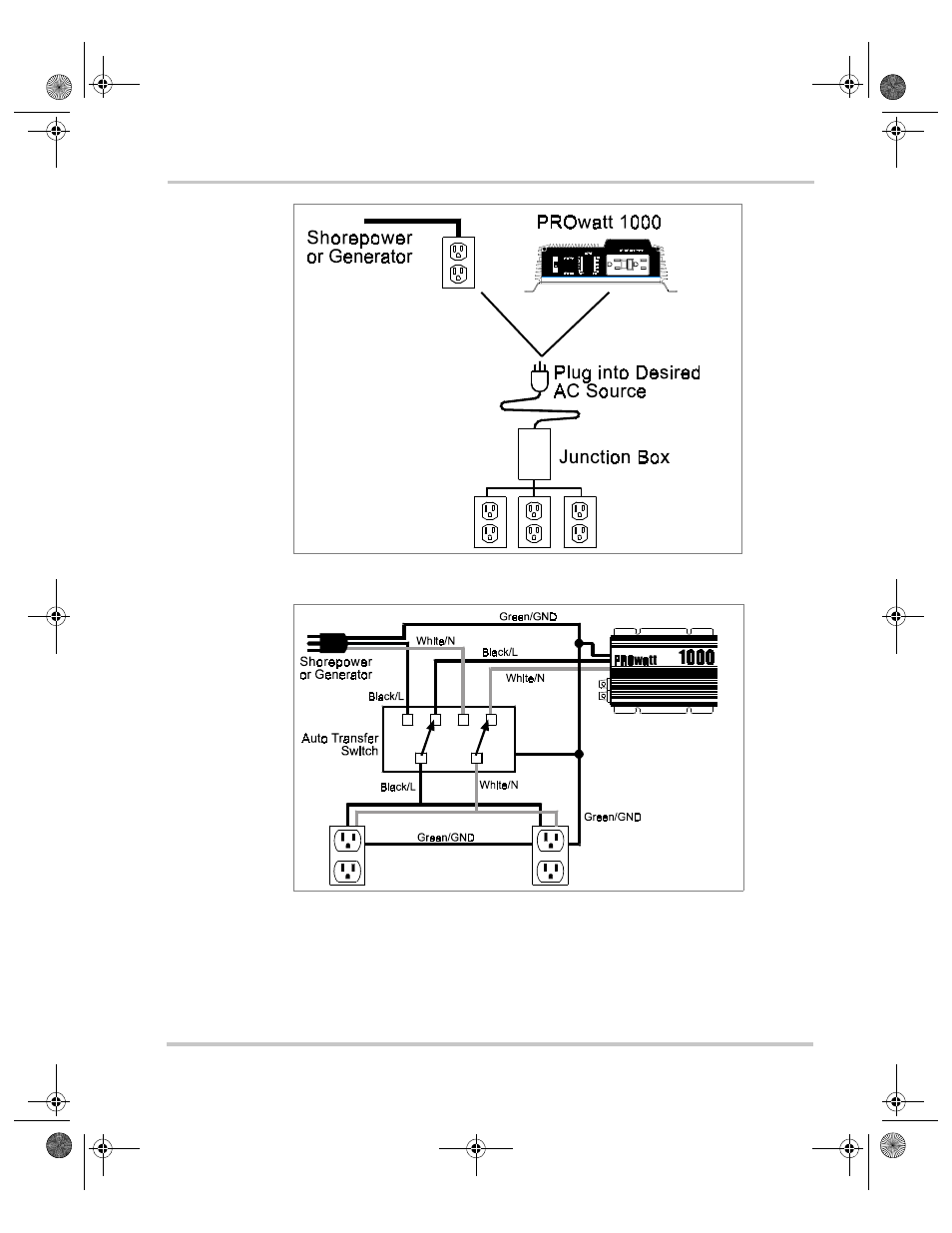

Figure 3-2 Simple Transfer Switching
Figure 3-3 Automatic Transfer Switch
