Printing on Specialty Media
Phaser® 5550 Printer
4-39
Printing Envelopes from Tray 1 (MPT)
1. Insert the envelopes in Tray 1 (MPT):
■ Place C4 envelopes short-edge feed in the tray.
■ Place Monarch, #10, C5, and DL envelopes long-edge feed in the tray.
■ Place the side to be printed facedown.
■ Place the envelope with the flap entering the printer first.
2. Adjust the paper guides to the size of the envelopes.
3. If prompted on the control panel, press the OK button to accept the envelope size that is
highlighted. If you have changed the paper size or type, do the following:
a. Select Change setup , and then press the OK button.
b. Select Envelope , and then press the OK button.
c. Select the paper size, and then press the OK button to save your selection.
4. In the printer driver, select Envelope as the paper type or Tray 1 (MPT) as the paper
source.

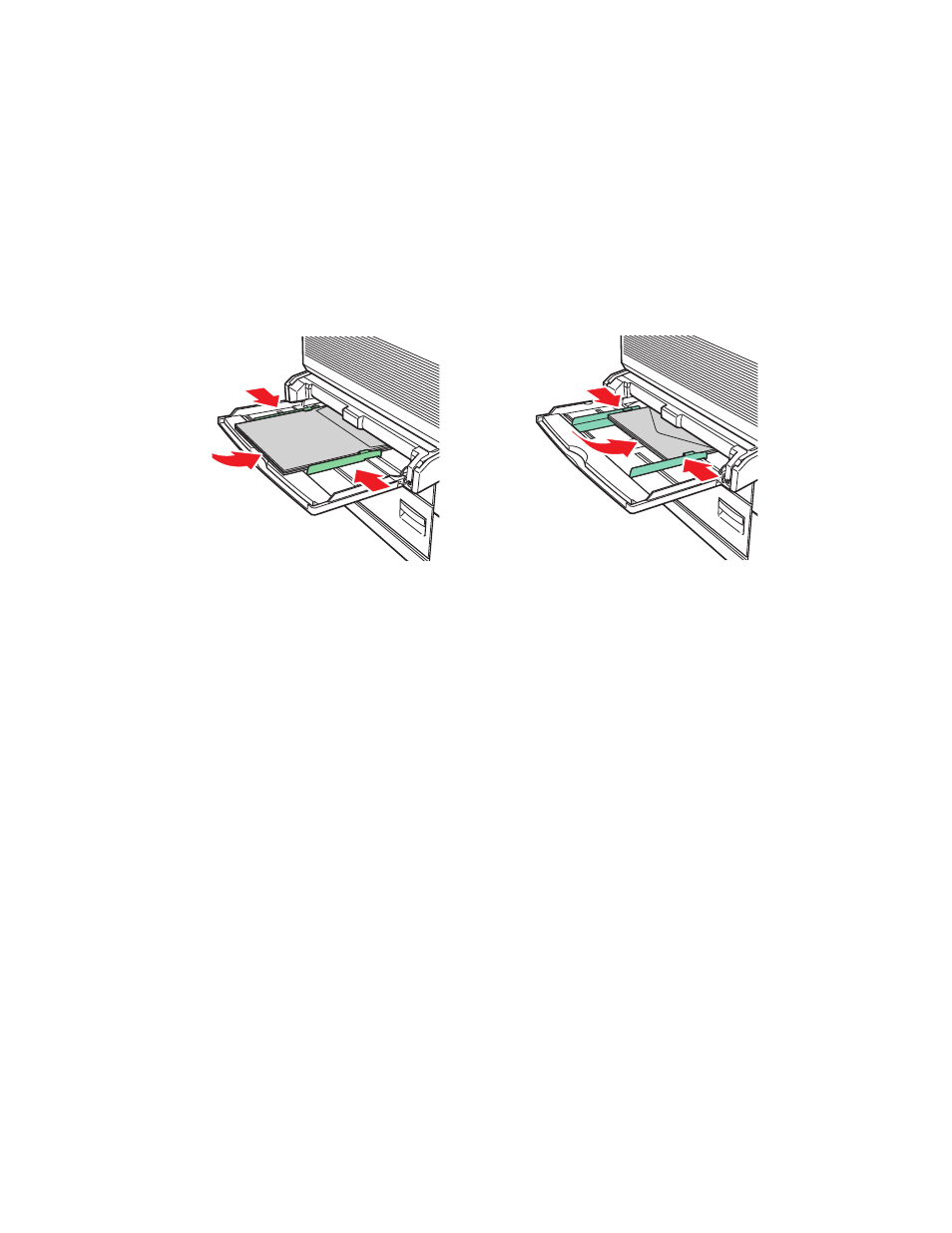

Short-Edge Feed – C4 and Some Custom
Sizes
Long-Edge Feed – All Other Sizes
5550-144 5550-145
