Johnson Controls Unitary Products

All dimensions are in inches. They are subject to change with-
out notice. Certified dimensions will be provided upon request.

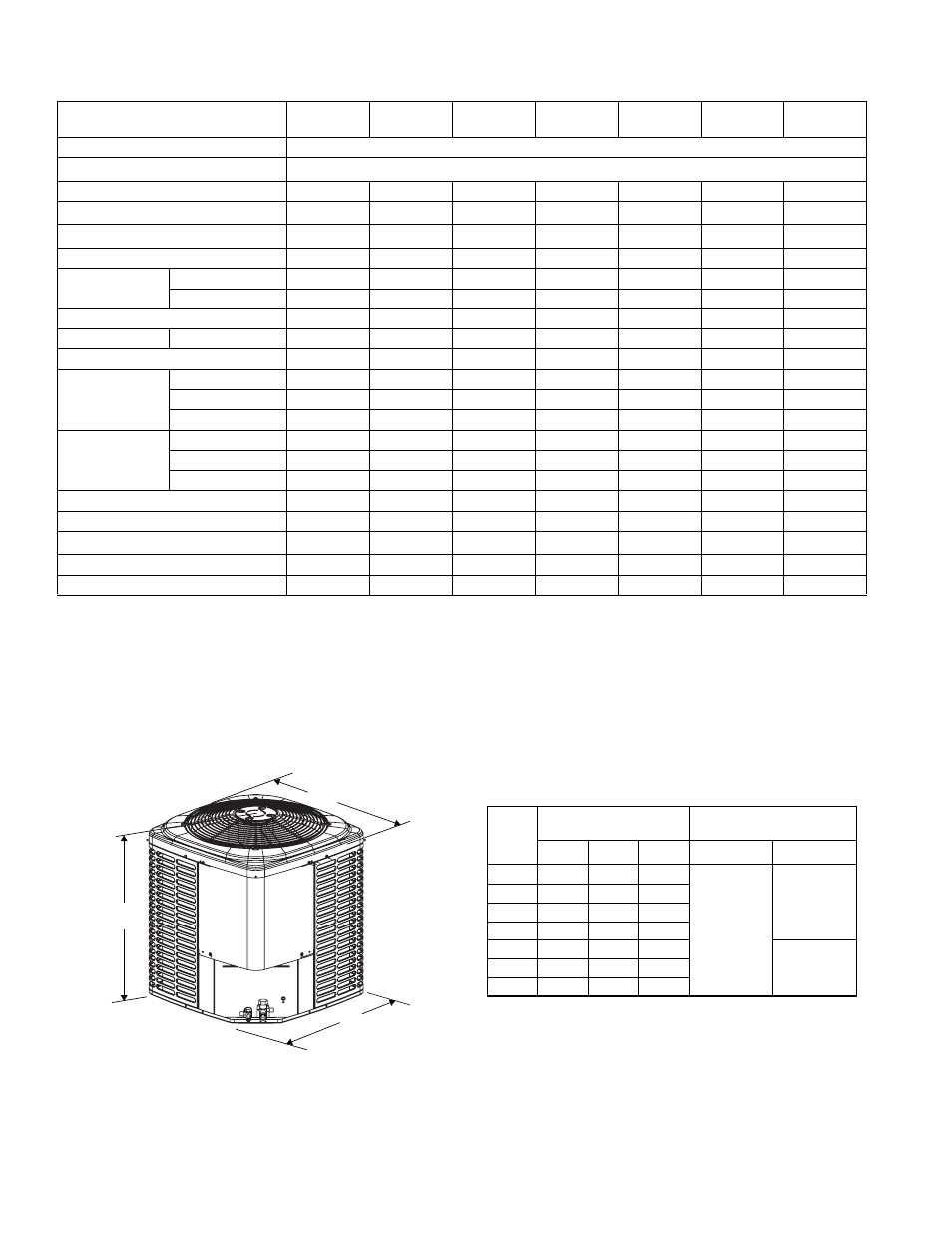

Physical and Electrical Data

MODEL

YHJD

18

S41S1

YHJD

24

S41S1

YHJD

30

S41S1

YHJD

36

S41S1

YHJD

42

S41S1

YHJD

48

S41S1

YHJD

60

S41S2

Unit Supply Voltage

208-230V, 1

 60Hz

Normal Voltage Range

1

187 to 252

Minimum

Circuit

Ampacity

9.6 12.0 15.4 19.6 28.6 30.9 37.4

Max. Overcurrent Device Amps

2

15 20 25 30 50 50 60

Min. Overcurrent Device Amps

3

15 15 20 20 30 35 40

Compressor

Type

Recip Recip Recip Recip Scroll Scroll Scroll

Compressor Amps

Rated

Load

7.12 8.9 11.65 14.72 21.76 23.61 28.8

Locked

Rotor

47.0 48.0 60.0 83.0 105.0

150.0

150.0

Crankcase

Heater

Yes Yes Yes Yes No No No

Fan Motor Amps

Rated Load

0.70

0.80

0.80

1.5

1.5

1.5

1.5

Fan

Diameter

Inches

24 24 24 24 24 24 24

Fan Motor

Rated

HP

1/10 1/8 1/8 1/4 1/4 1/4 1/4

Nominal

RPM

825 1075

1075 850 850 850 850

Nominal

CFM

2200 2900 3100 3800 3800 3600 3600

Coil

Face Area Sq. Ft.

15.7

18.3

21.0

23.58

23.58

23.58

23.6

Rows

Deep

1 1 1 1 1 2 2

Fin

/

Inches

22 22 22 22 22 18 18

Liquid Line Set OD (Field Installed)

3/8

3/8

3/8

3/8

3/8

3/8

3/8

Vapor Line Set OD (Field Installed)

3/4

3/4

3/4

3/4

7/8

7/8

7/8

Unit Charge (Lbs. - Oz.)

4

6 - 5

8 - 7

9 - 12

9 - 15

9 - 12

13 - 9

13 - 6

Charge

Per

Foot,

Oz.

.62 .62 .62 .62 .67 .67 0.67

Operating

Weight

Lbs.

172 184 196 208 208 275 290

1. Rated in accordance with ARI Standard 110, utilization range “A”.
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4. The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add

or subtract the amount of refrigerant, using the difference in length multiplied by the per foot value.

B

C

A

Unit

Model

Dimensions

(Inches)

Refrigerant Connection

Service Valve Size

A

1

1. Including Fan Guard.

B

C

Liquid

Vapor

18

28

34

34

3/8”

3/4”

24

32

34

34

30

36

34

34

36

40

34

34

42

40

34

34

7/8”

48

40

34

34

60

40

34

34
