036-21137-003 Rev. A (1102)
Unitary Products Group 11
All dimensions are in inches. They are subject to change without
notice. Certified dimensions will be provided upon request.
* Reducer Required
ACCESSORIES*
Refer to Price Manual for specific model numbers.
Hard Start Kit - Provides increased starting torque for areas
with low voltage.
Compressor Blanket - Designed to further reduce the nor-
mal compressor operating sound. Refer to price pages for
specific match-ups.
Off Cycle Timer Delay - Provides a 5-minute off cycle to pre-
vent rapid recycling of the compressor.
Room Thermostats - A wide selection of compatible thermo-
sets are available to provide optimum performance and fea-
tures for any installation.
1 Heat Stage only, manual, mechanical thermostat. Add sub-
base for 1H/1C.
1H/1C, manual change-over electronic non-programmable
thermostat.
1H/1C, auto/manual changeover, electronic programmable,
deluxe 7-day, thermostat.
1H/1C, auto/manual changeover, electronic programmable.
* For the most current accessory information, refer to the
price book or consult factory.
SOUND RATINGS*
*Rated in accordance with ARI Standard 270.

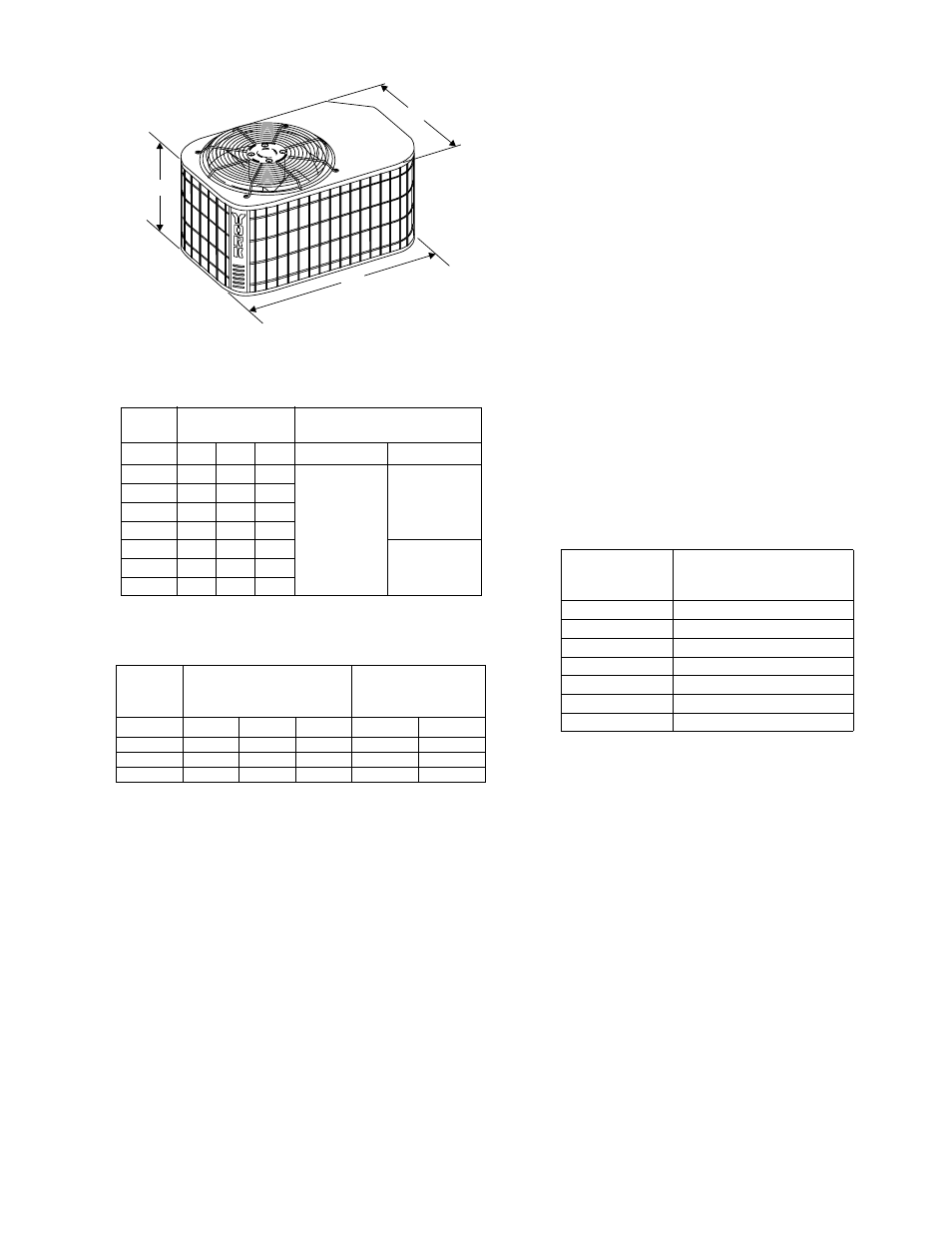

DIMENSIONS - 1 Phase
UNIT
MODEL
DIMENSIONS
(INCHES)
REFRIGERANT CONNECTION
LINE SIZE
A 1
1. Included Fan Guard
B C Liquid Vapor
018 25 35 23
3/8””
3/4
024 25 35 23
030 27 37 27
036 27 37 27
042 29 37 27
7/8 048 33 37 27
060 39 37 27
DIMENSIONS - 3 Phase
Unit
Model
Dimensions
(Inches)
Refrigerant
Connection
Line Size
A 1
1. Included Fan Guard
B C Liquid Vapor
036 27 37 27 3/8” 3/4
048 29 37 27 3/8” 7/8
060 39 37 27 3/8” 1-1/8*
C
A
B
UNIT MODEL
SOUND
RATINGS
DECIBELS
018 75
024 80
030 76
036 79
042 78
048 80
060 79
