Adjust Printhead Pressure
10/21/05
S4M User Guide
13290L-001 Rev. A
Adjust Printhead Pressure
See
. You may need to adjust printhead pressure if printing is too light on one side or
if you use thick media.

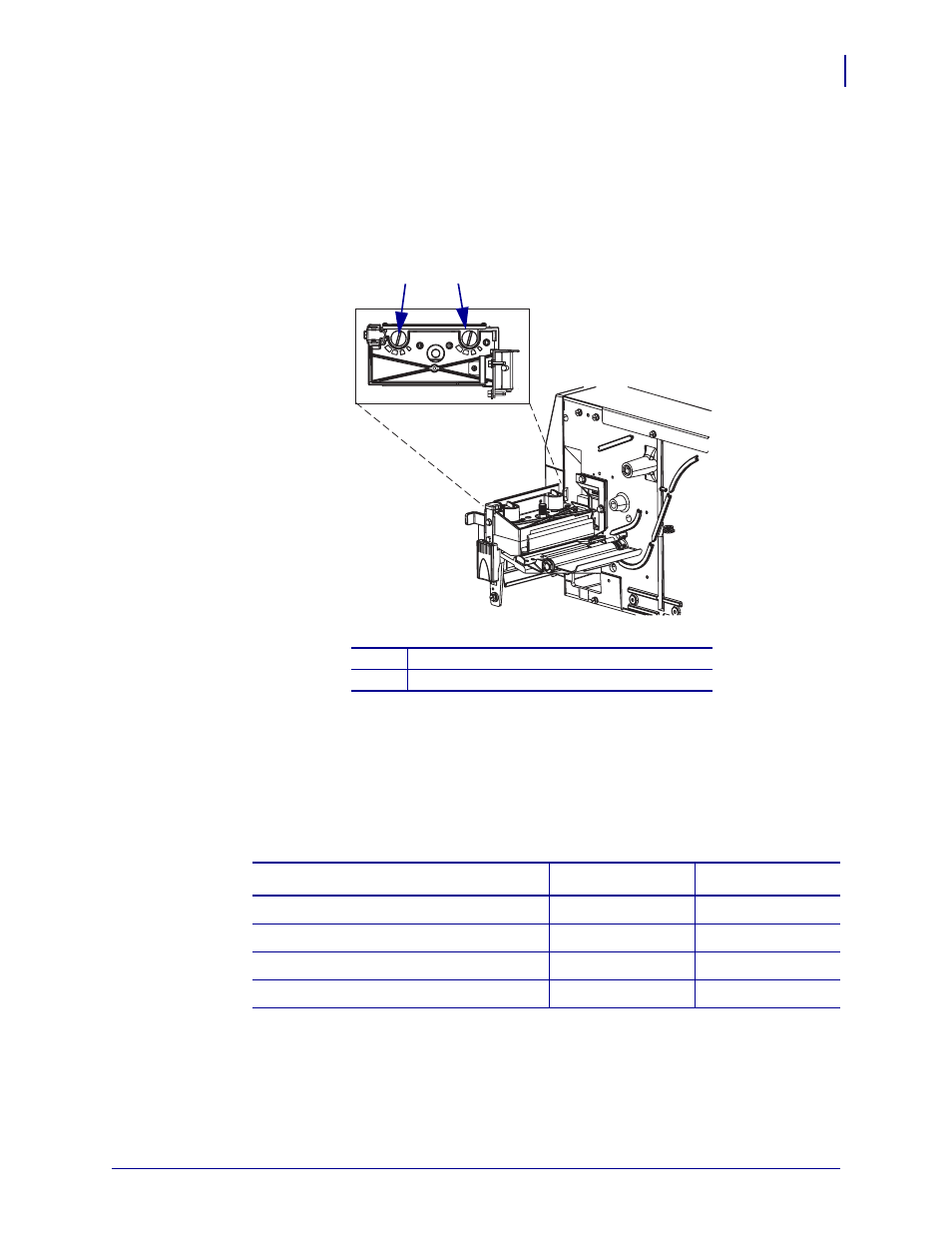

Figure 23 • Printhead Pressure Adjustment Dials
The smallest block (fully counterclockwise) is considered position 1 and the largest block
(fully clockwise) is considered position 4.
To set printhead pressure, complete these steps:
1.
to select the initial dial settings for your media.
1
Right dial
2
Left dial
1
2
Table 6 • Printhead Pressure
Media Width
Left Dial
Right Dial
1 in. (25.4 mm)
3
1
2 in. (51 mm)
4
1
3 in. (76 mm)
3
2
3.5 in. and up (89 mm and up)
3
3
