DESCRIPTION
YORK Sunline 2000 units are convertible single package air
conditioners with a common cabinet and a common roof curb
for the 3, 4, 5 and 6 ton sizes. The units were designed for light
commercial and commercial applications. They can easily be
installed on a roof curb, slab, roof jack or frame.
All units are self-contained and assembled on rigid full
perimeter base rails with fork lift slots on three sides and holes
for overhead rigging. Every unit is completely piped, wired,
charged and tested at the factory to provide for a quick and
easy field installation.
The units are available in cooling only, and cooling with gas heat.
Electric heaters are available as field-installed accessories.
The cabinet is constructed of galvanized steel, painted with long
lasting, durable, and aesthetically pleasing power paint. Paint
finish meets 750 hour salt spray tests per ASTM-B117 standards.
All models include a 5-year limited warranty on scroll
compressors and electric heating elements, a 10-year limited
warranty on gas-fired heat exchangers and a 1-year limited
warranty on all replacement parts.
FEATURES
COMMON FOOTPRINT/COMMON CABINET - All model
sizes and configurations share a common cabinet and a
common roof curb. The installer has the flexibility of setting one
curb and placing the proper tonnage unit on that curb after the
internal load has been determined. He can even decide
between gas or electric heat after the curb has been set.
HIGH EFFICIENCY - All units have a high cooling efficiency,
and gas / electric models have a minimum AFUE of 80%. All
efficiencies exceed legislated minimum levels and provide low
operating costs.
CONVERTIBLE AIRFLOW DESIGN - Both the side and bottom
duct openings are covered when they leave the factory. If a side
supply / side return is desired, you simply remove the two side
duct covers from the outside of the unit and discard them. If a
bottom supply / bottom return is desired, you simply remove the
two knockout panels from the base of the unit and discard them.
No panel cutting or swapping is required! Convertible airflow
design allows maximum field flexibility and minimum inventory.
Economizers may be used on either bottom and side duct
applications with no modifications required.
FACTORY-INSTALLED OPTIONS - Economizers can be
installed at the factory. The economizers are shipped installed
and wired. Only the rain hood needs to be field assembled and
installed. Field labor dollars can be saved by having the
components arrive already installed.
Adjustable belt drive blowers are available on all models from
the factory for complete airflow flexibility.
FIELD-INSTALLED ACCESSORIES - Accessories were
designed for quick and easy installation. The motorized damper
and economizers simply slide in, and electrical connections are
made by modular plugs. Electric heaters mount easily, and
knockouts are provided in the internal partitions to connect the
elements to the control box single point kit.
The motorized air damper includes a slid-in/plug-in damper
assembly with a rainhood and filters. The outdoor air dampers
open when the indoor fan motor is energized. The damper is
capable of providing 0% through 100% of outdoor return air
opening.
The manual outdoor damper provides 0% through 35% or 0%
through 100% of return air opening (field adjustable). Designed
for duct mounted side or bottom supply/return applications.
Includes rain hood assembly and filter.
The 14" high roof curb is shipped knocked down. An insulated
deck is not required because the bottom of the unit is insulated.
Low ambient controls are available to provide stable unit
operation at outdoor temperatures down to 0
°
F.
Propane, high altitude and low NOx kits are also available to
cover all gas heating applications.
WIDE RANGE OF INDOOR AIRFLOWS - All 3, 4 and 5-ton
models operate over a wide range of design conditions with a
530.18-TG1Y (500)
SINGLE PACKAGE
AIR-COOLED
AIR CONDITIONERS
D4CE 036, 048, 060 & D2CE 072
D7CG 036, 048, 060 & D2CG 072
3, 4 AND 5 NOMINAL TONS (10 SEER)
AND 6 NOMINAL TONS (9 EER)
SUNLINE 2000

Cont’d.

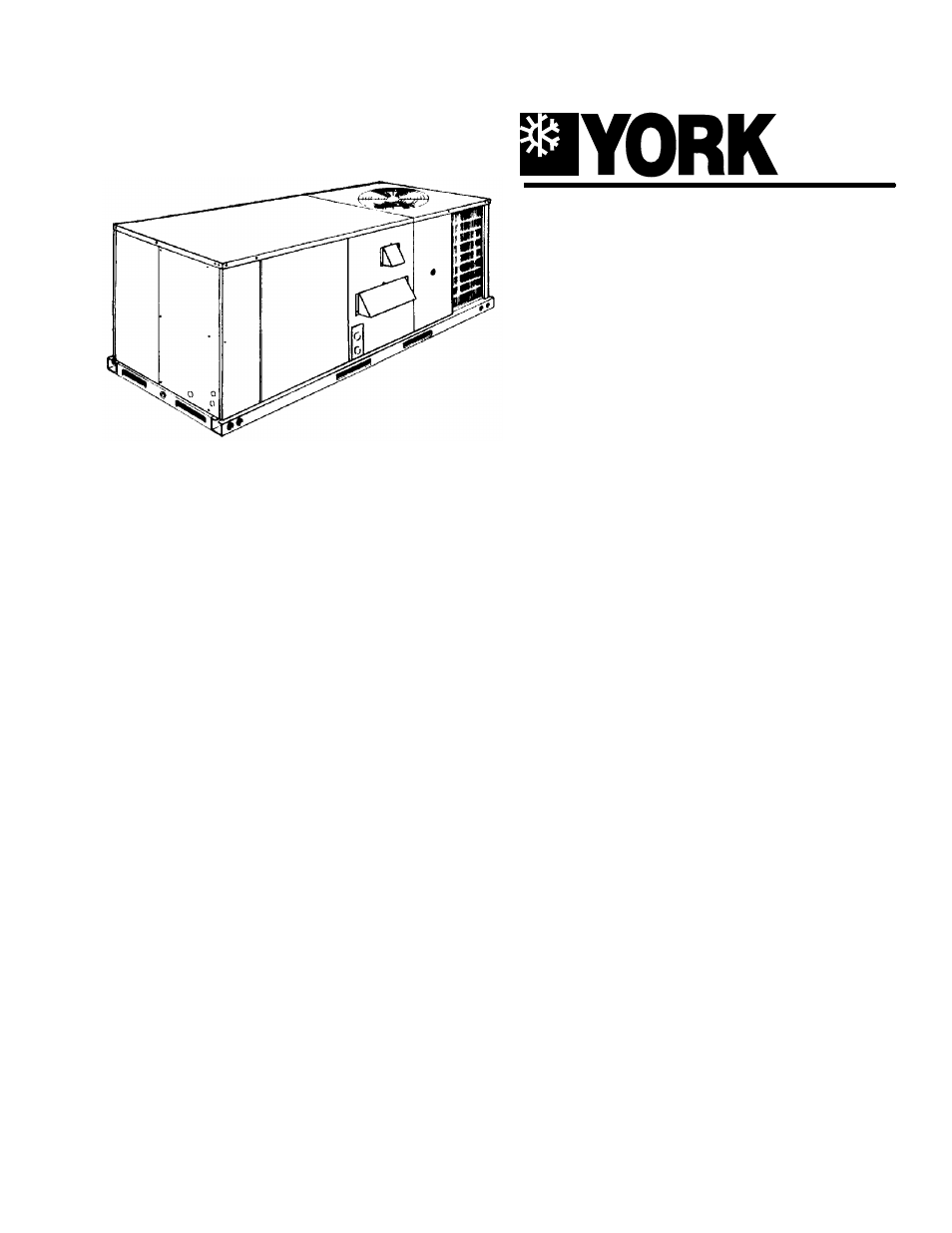

DCG MODEL
SHOWN
®
