28 LS9-16/32 Owner’s Manual
Basic operations in the top panel

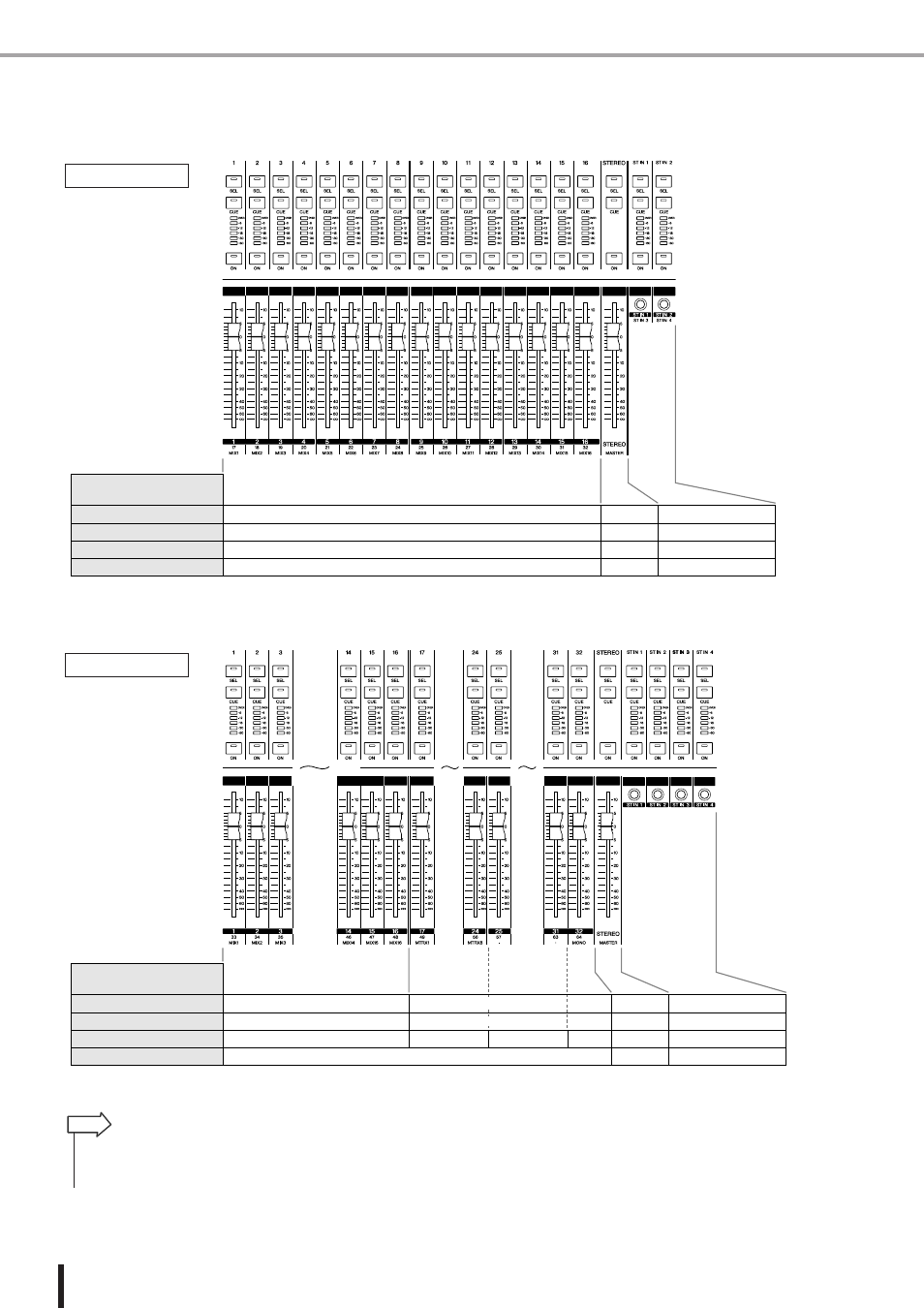

The combination of channels corresponding to each key is as follows.
LAYER section key
LAYER [1-16]
LAYER [17-32]
LAYER [MASTER]
LAYER [CUSTOM FADER]
INPUT CH 1–16
INPUT CH 17–32
MIX 1–16
Any desired channels
STEREO ST IN 1–2
ST IN 3–4 STEREO
STEREO
STEREO Any desired channels
—
LS9-16
LAYER section key
LAYER [1-32]
LAYER [33-64]
LAYER [MASTER]
LAYER [CUSTOM FADER]
INPUT CH 1–16
INPUT CH 33–48
MIX 1–16
INPUT CH 17–32 STEREO ST IN 1–4
ST IN 1–4 STEREO
STEREO
STEREO Any desired channels
INPUT CH 49–64
MATRIX 1–8 — — MONO
Any desired channels
LS9-32
• On the LS9-16, MATRIX channels and MONO channels are not assigned to the fader layers that are preset.
If you want to use the top panel faders and [ON] keys to control the MATRIX channels or MONO channel,
you can assign them to the custom fader layer (
→ p. 91).
HINT
