56 Xilinx Development System
Xilinx System Generator v2.1 Reference Guide

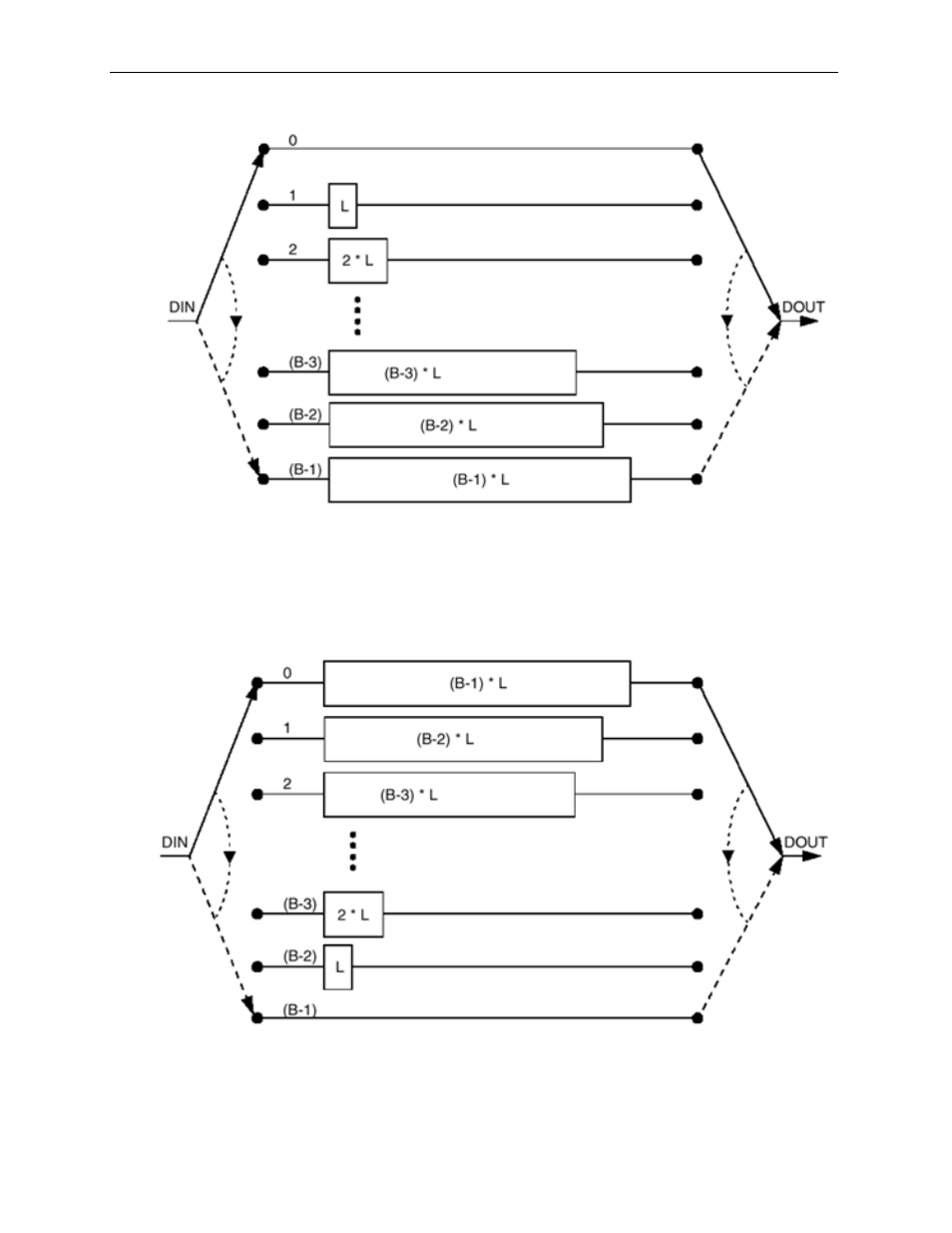

Figure 3-34: Forney convolutional interleaver with a constant difference
between consecutive branches
When the block is in deinterleaver mode, the input data sampled on the DIN port is
multiplexed into and out of
B shift registers onto the DOUT port using two
(synchronized) commutator arms. Branch 0 will have a shift register of length ( B -1)* L .
Branch ( B -1) shall have a shift register length of zero.
Figure 3-35: Forney convolutional deinterleaver with a constant difference
between consecutive branches
