42

www.xilinx.com

SP605 Hardware User Guide

UG526 (v1.8) September 24, 2012

Chapter 1: SP605 Evaluation Board

Ethernet PHY Status LEDs

The Ethernet PHY status LEDs (DS11-DS13) are mounted in right-angle plastic housings to
make them visible on the connector end of the board when the SP605 board is installed into
a PC motherboard. This cluster of six LEDs is installed adjacent to the RJ45 Ethernet jack
P1.

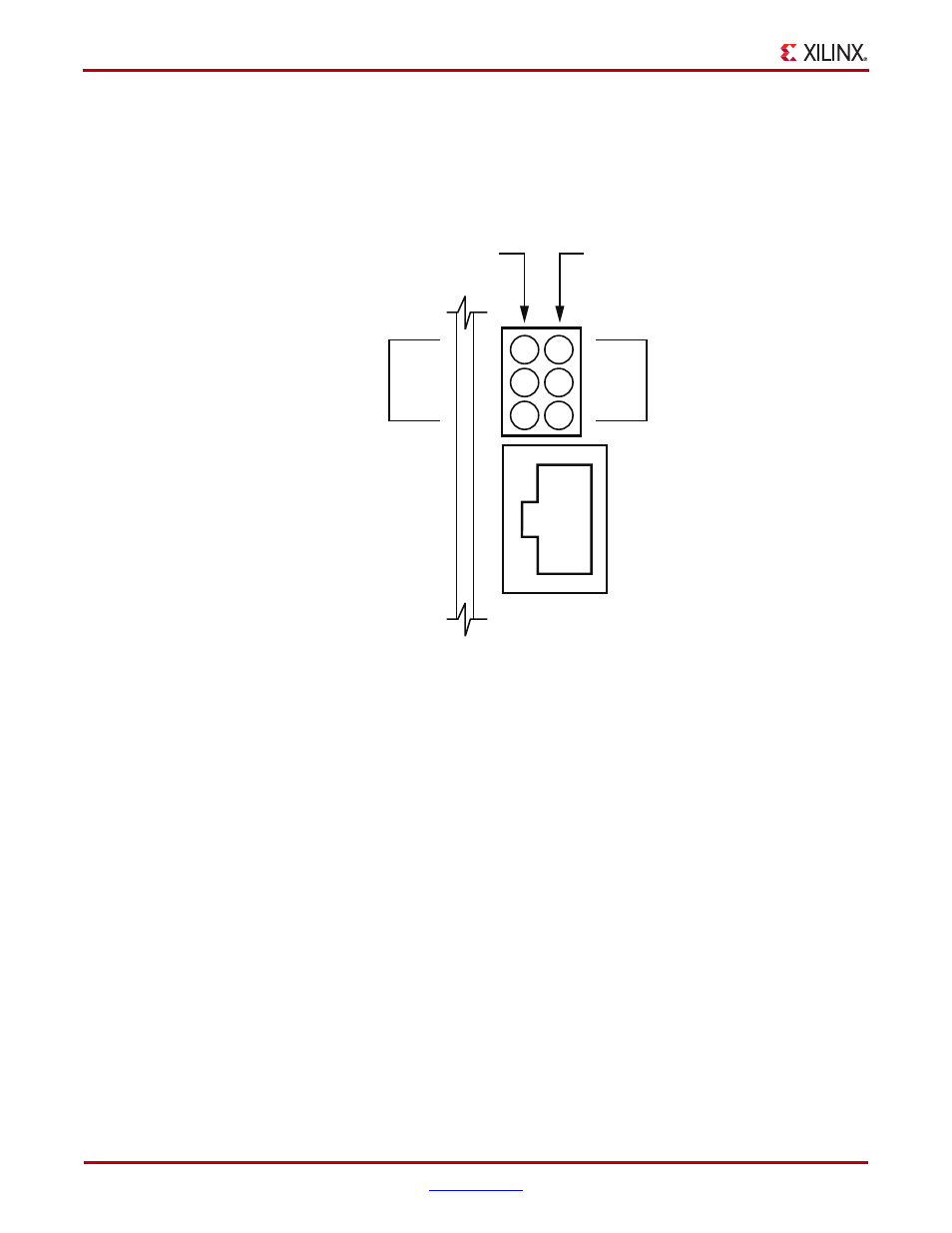

X-Ref Target - Figure 1-13

Figure 1-13:

Ethernet PHY Status LEDs

Direction
Indicator

Link Rate

(Mbps)

DUP
TX
RX

10

100

1000

P1

End view of SP605 Ethernet jack and
status LEDs when installed vertically
in a PC chassis

UG526_13 _092409
