USING THE LEG LEVER LOCK
When using the low pulley station, engage the Leg
Lever Lock (47) onto the Leg Lever (15) tube.
TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight
system, can stretch slightly when it is first used. If
there is slack in the cables before resistance is felt,
the cables should be tightened. To tighten the cables,
first insert the weight pin into the middle of the weight
stack. Slack can be removed from these cables in
several ways:

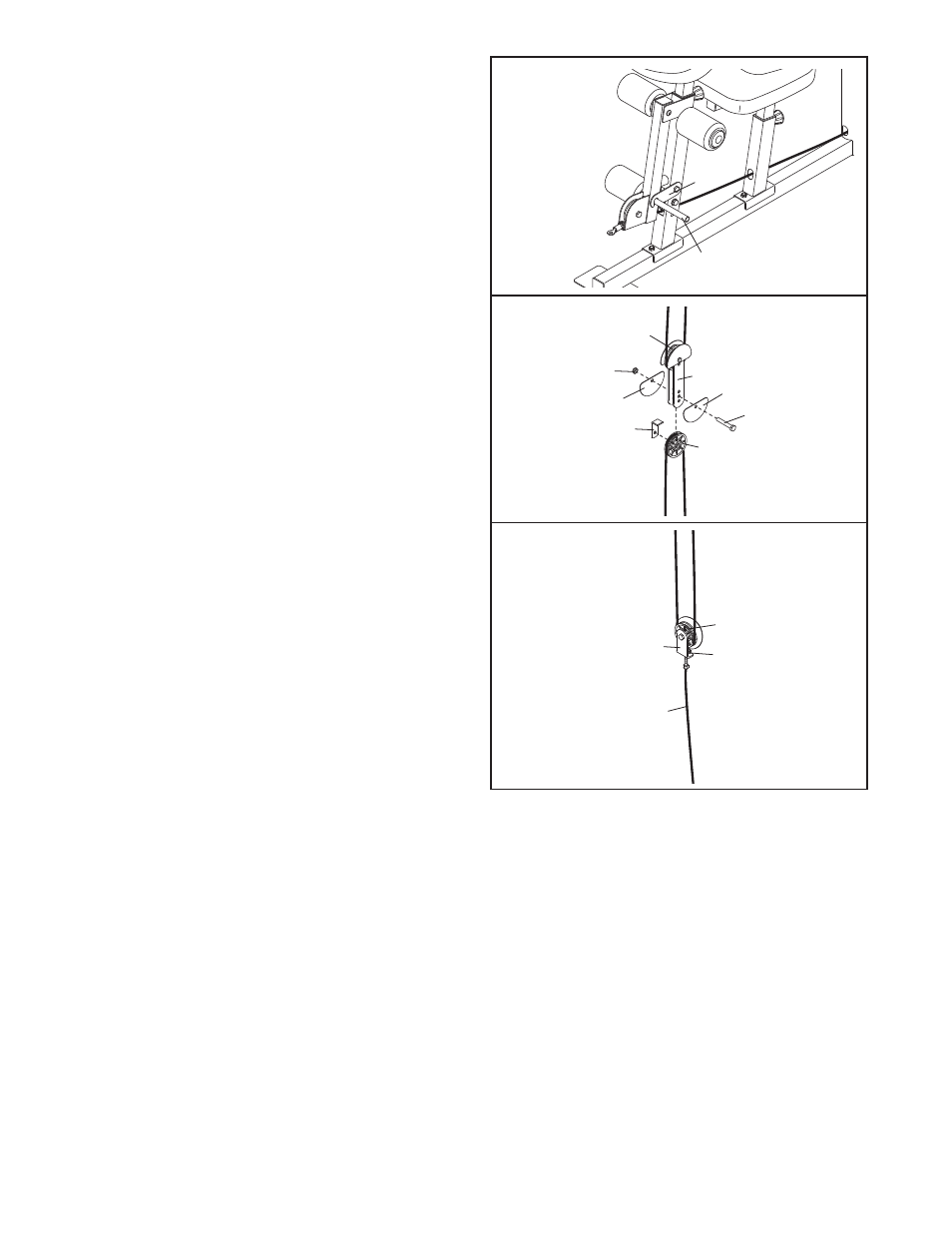

See drawing A. Remove the M10 Nylon Locknut (84)
and the M10 x 50mm Bolt (105) from the indicated
Pulley (43), Cable Trap (48), Half Guards (46), and
Pulley Plates (49). Reattach the Pulley, Cable Trap,
and Half Guards using a hole closer to the center of
the Pulley Plates.
Make sure that the Cable Trap is
oriented to hold the cable in the groove of the
Pulley, that the Half Guards are oriented as
shown, and that the Cable and Pulley move
smoothly. Adjust the top Pulley (43) in the same
manner, if necessary.
See drawing B. To remove slack from the Press
Cable (72), tighten the M6 Nylon Locknut (103) fur-
ther onto the end of the Press Cable (72).
105
84
46
46
A
B
48
43
43
49
103
43
15
47
