22

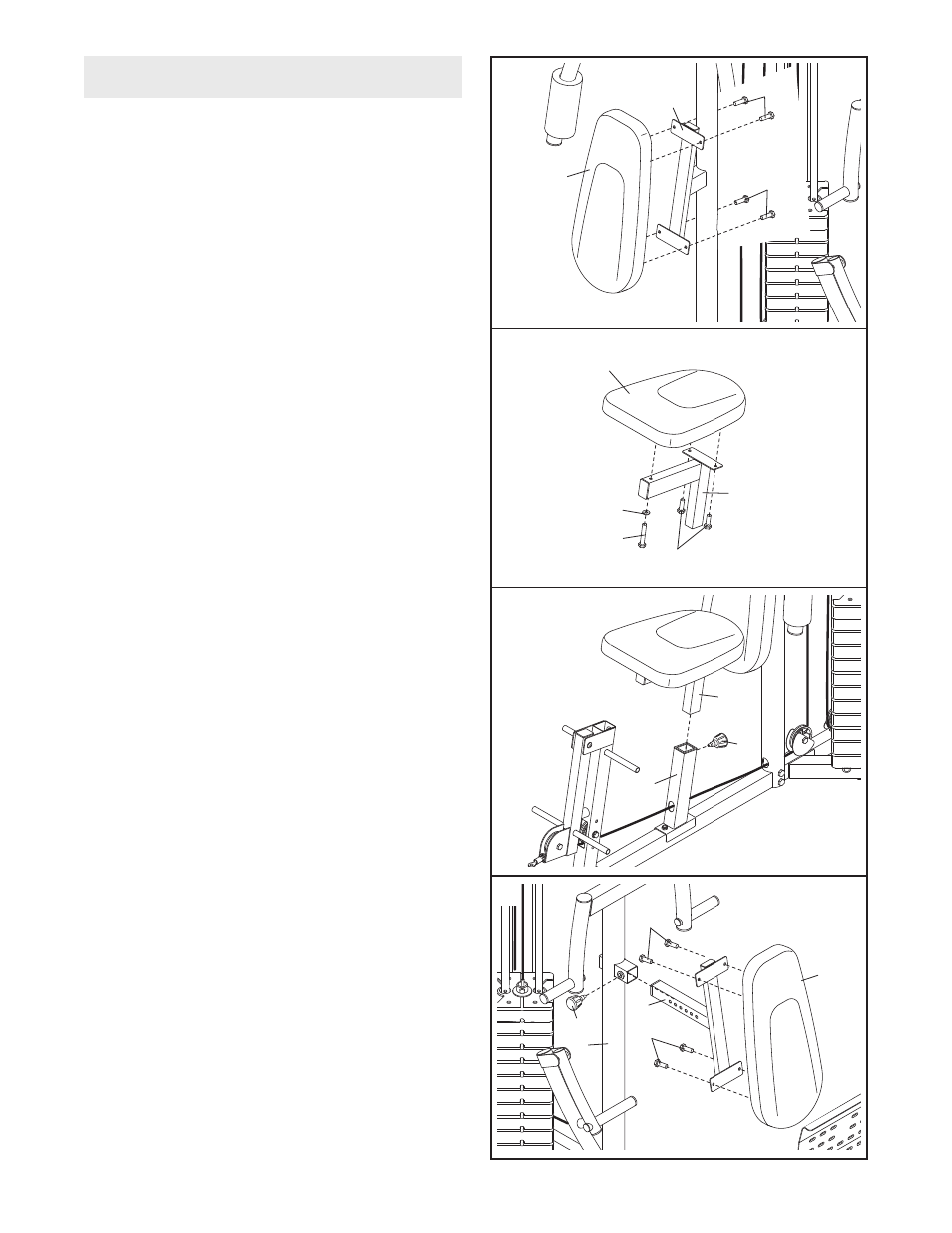

51. Attach a Backrest (35) to the Right Upright (7)
with four M6 x 16mm Screws (99).
54. Attach a Backrest (35) to the Backrest Frame (19)
with four M6 x 16mm Screws (99).
Tighten an Adjustment Knob (69) into the Left
Upright (8). Insert the Backrest Frame (19) into
the Left Upright and engage the Adjustment Knob
into the Backrest Frame.
52. Attach the Large Seat (37) to the Right Seat
Frame (17) with two M6 x 16mm Screws (99), an
M6 x 80mm Screw (98), and an M6 Washer (90).
Attach the Small Seat (not shown) to the Left
Seat Frame (not shown) in the same manner.
35
99
99
7
51
52
17
98
90
99
37
99
54
99
19
35
69
8
Seat Assembly
53. Tighten an Adjustment Knob (69) into the Right
Seat Upright (11). Insert the Right Seat Frame
(17) into the Right Seat Upright and engage the
Adjustment Knob into the Right Seat Frame.
Repeat this step with the Left Seat Frame (not
shown) and the Left Seat Upright (not shown).
11
69
53
17
