Weider club 4870 WESY3906.0 - Manual (Page 19)

19

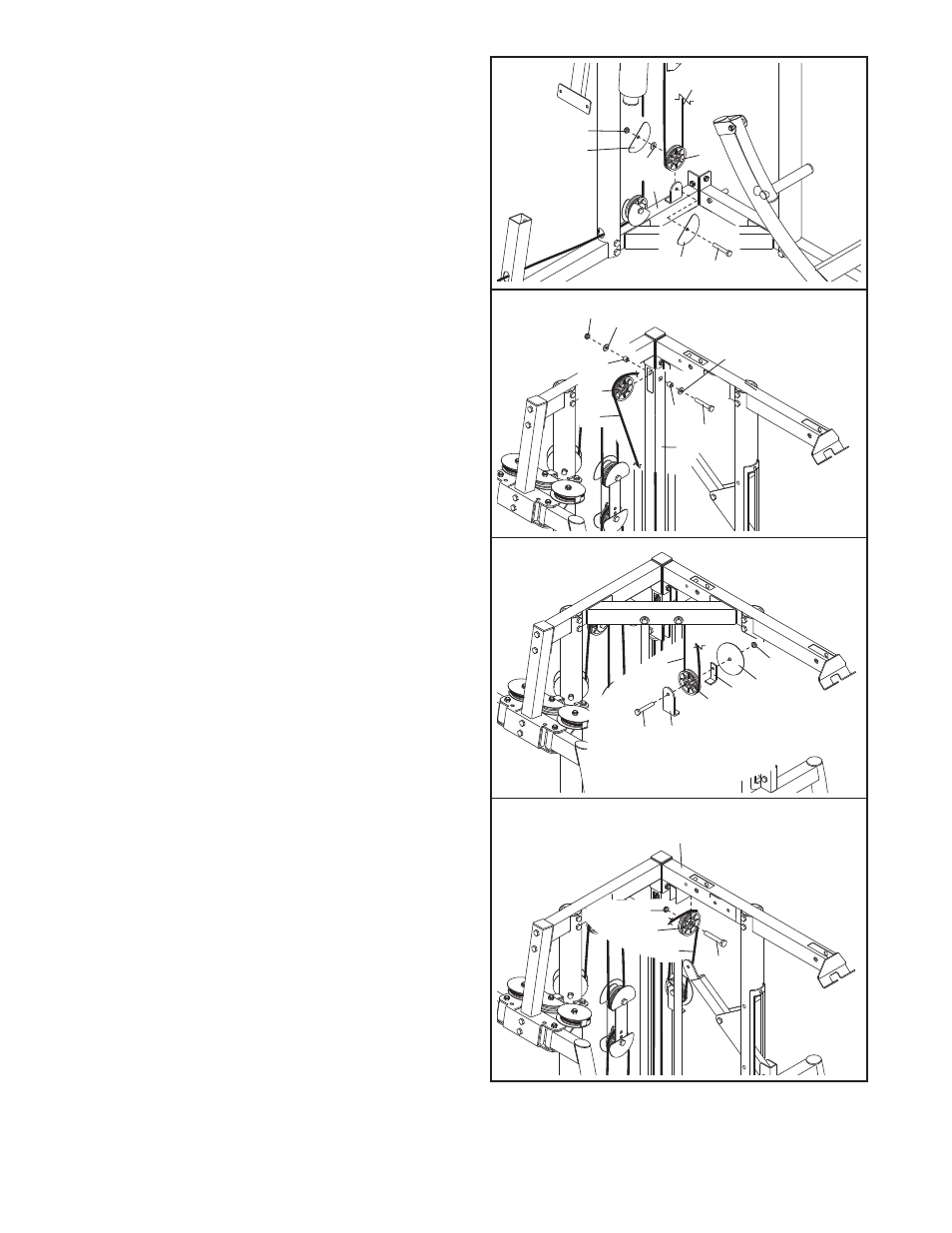

38. Wrap the Low Cable (70) under a Pulley (43).
Attach the Pulley, an M10 Washer (108), and two
Half Guards (46) to the Right Base (1) with an
M10 x 45mm Bolt (95) and an M10 Nylon Locknut
(84).
Make sure the Half Guards are oriented
as shown.
39. Route the Low Cable (70) over a Pulley (43) and
through the Center Upright (9). Attach the Pulley
inside the Center Upright with an M10 x 65mm
Bolt (87), two M10 Washers (108), two 1/2”
Bushings (68), and an M10 Nylon Locknut (84).
40. Wrap the Low Cable (70) under a Pulley (43).
Attach the Pulley, a Cable Trap (48), and a Guard
(45) to the Small Pulley Plate (50) with an M10 x
50mm Bolt (105) and an M10 Nylon Locknut (84).
Make sure that the Cable Trap is oriented to
hold the Cable in the groove of the Pulley.
38
1
84
46 43
108
70
95 46
40
41
84
39
105 50
43
48 45
70 84
84
43
4
95
70
41. Wrap the Low Cable (70) over a Pulley (43).
Attach the Pulley to the Left Top Frame (4) with
an M10 x 45mm Bolt (95) and an M10 Nylon
Locknut (84).
68
68
87
9
43
70
108
108
