14

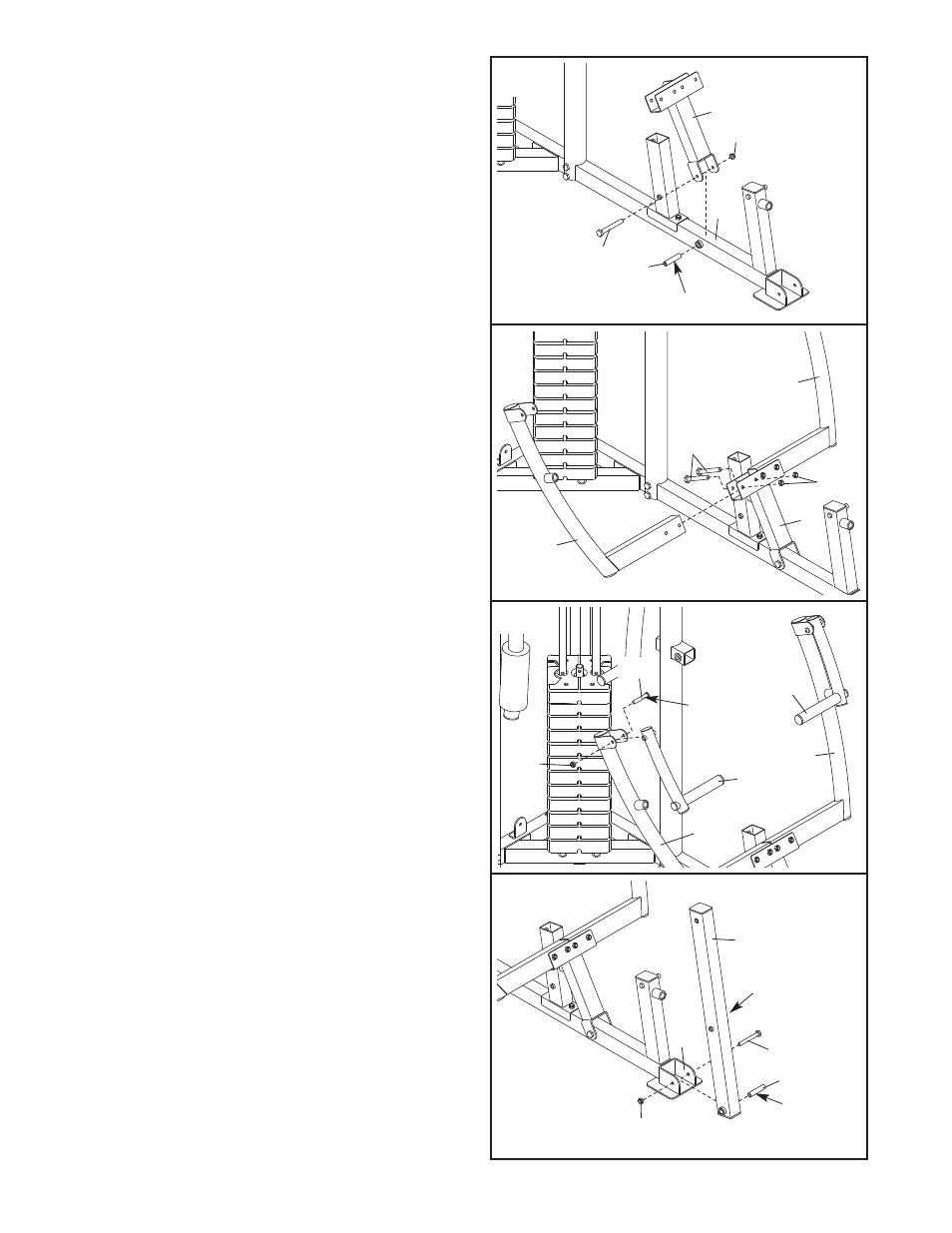

20. Attach the Right Press Arm (26) to the Press
Frame (13) with two M10 x 70mm Bolts (57) and
two M10 Nylon Locknuts (84).
Attach the Left Press Arm (25) to the Press
Frame (13) in the same manner.
20
13
57
26
25
84
19. Apply grease to a 2 3/4" Bushing (65) and insert
the Bushing into the Left Base (2). Attach the
Press Frame to the Left Base (2) with an M10 x
90mm Bolt (102) and an M10 Nylon Locknut (84).
13
102
84
65
2
19
Grease
21. Apply grease to an M10 x 70mm Bolt (57). Attach
a Press Arm Handle (27) to the Right Press Arm
(26) with the Bolt and an M10 Nylon Locknut (84).
Do not overtighten the Nylon Locknut; the
Press Arm Handle must be able to pivot easily.
Repeat this step with the other Press Arm
Handle (27) and the Left Press Arm (25).
22. Apply grease to a 2 3/4" Bushing (65) and insert
the Bushing into the Press Leg (21). Next, orient
the Leg Press with the welded spacer on the indi-
cated side and attach the Leg Press to the Left
Base (2) with an M10 x 95mm Bolt (107) and an
M10 Nylon Locknut (84).
84
21
22
25
27
27
26
12
2
84
107
65
Grease
57
Grease
Welded
Spacer
