Weider club 4870 WESY3906.0 - Manual (Page 21)

21

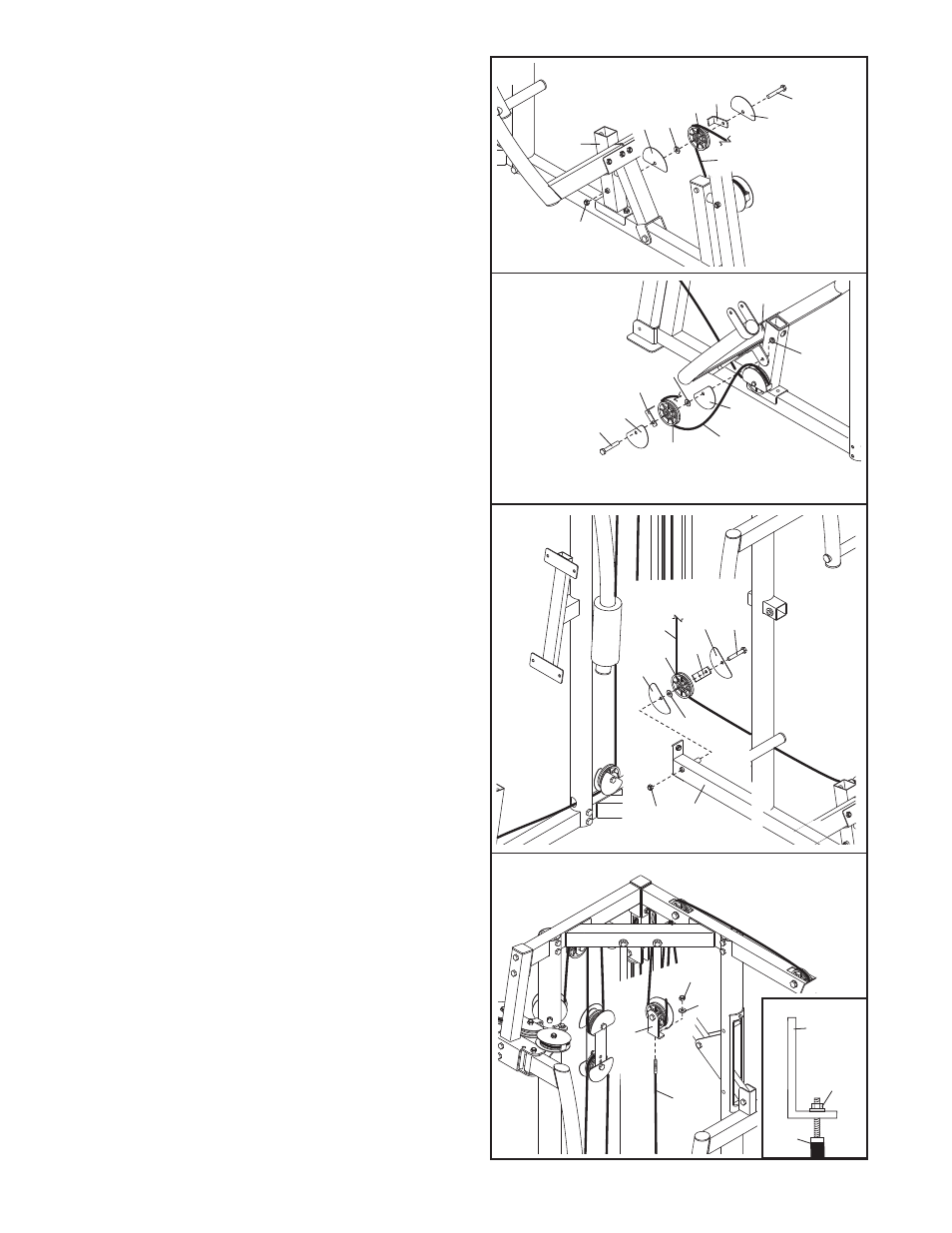

47. Wrap the Press Cable (72) under a Pulley (43).
Attach the Pulley, a Cable Trap (48), an M10
Washer (108), and two Half Guards (46) to the
Left Seat Upright (14) with an M10 x 120mm Bolt
(97) and an M10 Nylon Locknut (84).
Make sure
that the Cable Trap is oriented to hold the
Cable in the groove of the Pulley. Make sure
the Half Guards are oriented as shown.
48. Note: This step is shown from the opposite
side of the Press Frame (13).
Wrap the Press Cable (72) under a Pulley (43).
Attach the Pulley, a Cable Trap (48), an M10
Washer (108), and two Half Guards (46) to the
Press Frame (13) with an M10 x 45mm Bolt (95)
and an M10 Nylon Locknut (84).
Make sure that
the Cable Trap is oriented to hold the Cable in
the groove of the Pulley. Make sure the Half
Guards are oriented as shown.
49. Wrap the Press Cable (72) under a Pulley (43).
Attach the Pulley, a Cable Trap (48), an M10
Washer (108), and two Half Guards (46) to the
Left Base (2) with an M10 x 130mm Bolt (106)
and an M10 Nylon Locknut (84).
Make sure that
the Cable Trap is oriented to hold the Cable in
the groove of the Pulley. Make sure the Half
Guards are oriented as shown.
108
43
48
46
14
46
72
97
84
47
48
72
43
48
46
95
13
84
108
46
72
43
46
2
50
84
108
49
46
48
106
90
72
50
103
50. Attach the Press Cable (72) to the Small Pulley
Plate (50) with an M6 Washer (90) and an M6
Nylon Locknut (103).
See the inset drawing. Do
not completely tighten the Nylon Locknut; it
should be tightened so that only two threads
of the Cable show past the Nylon Locknut.
72
103
50
