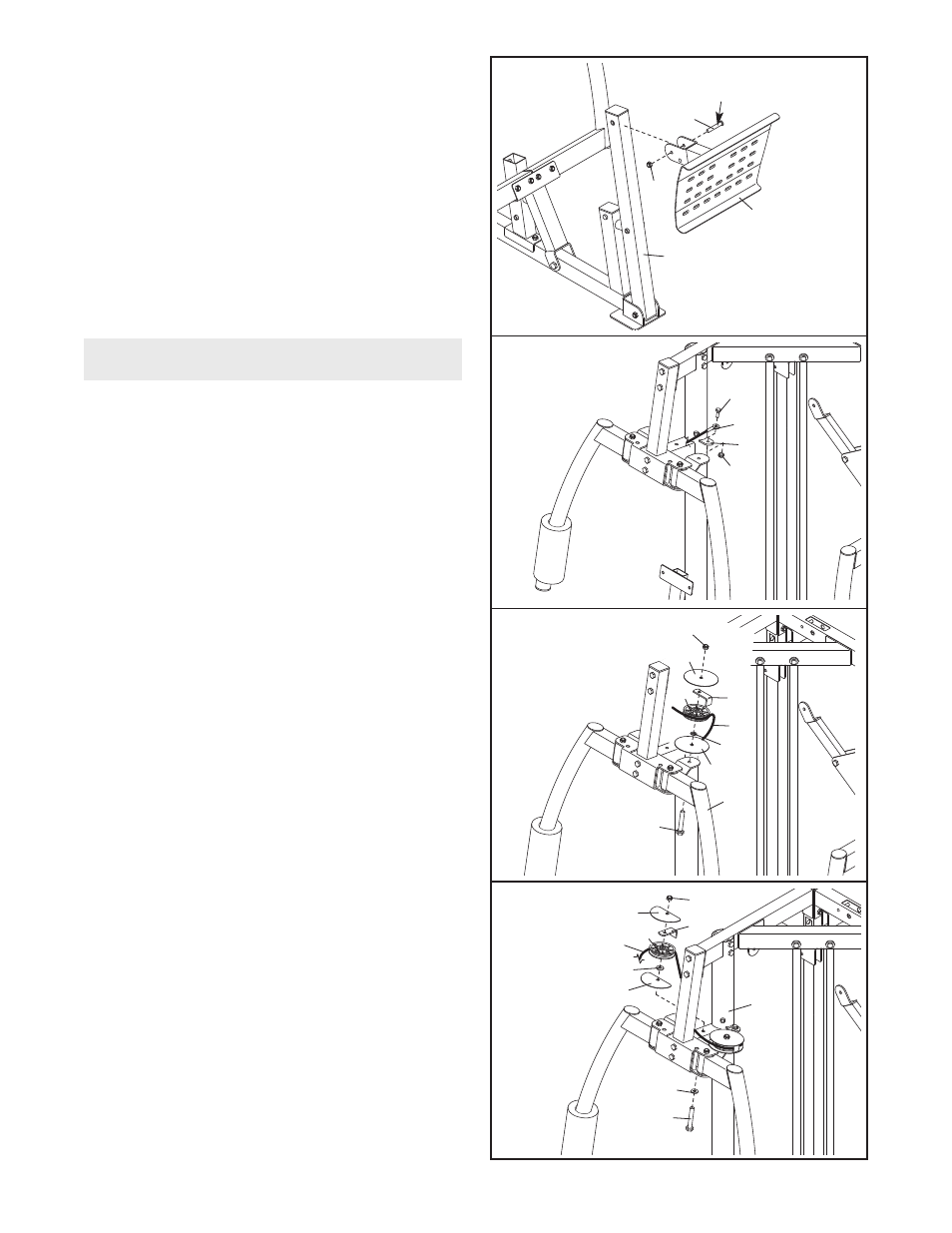

23. Apply grease to an M10 x 75mm Bolt (96). Attach
the Leg Press Plate (29) to the Leg Press (12)
with the Bolt and an M10 Nylon Locknut (84).
Do
not overtighten the Nylon Locknut; the Leg
Press Plate must be able to pivot easily.
24. During steps 24–53, see the CABLE DIAGRAM
on page 28 to identify the cables and ensure
proper cable routing.
Identify the Butterfly Cable (73). Attach the
Cable to the Right Upright (7) with an M8 x 25mm
Shoulder Bolt (92) and an M8 Nylon Locknut
(101).
Make sure that the Cable end can pivot
easily around the shoulder of the Bolt.
96
29
12
23
24
92
73
7
101
Grease
84
Cable Assembly
25. During steps 25–52, see the PART IDENTIFI-
CATION CHART to identify the different types
of pulleys.
Wrap the Butterfly Cable (73) around a Pulley
(43). Attach the Pulley, a Cable Trap (48), an M10
Washer (108), and two Guards (45) to the Left
Butterfly Arm (22) with an M10 x 50mm Bolt (105)
and an M10 Nylon Locknut (84).
Make sure that
the Cable Trap is oriented to hold the Cable in
the groove of the Pulley.
26. Wrap the Butterfly Cable (73) around a Pulley
(43). Attach the Pulley, a Cable Trap (48), an M10
Washer (108), and two Half Guards (46) to the
Right Upright (7) with an M10 x 120mm Bolt (97),
an M10 Washer, and an M10 Nylon Locknut (84).
Make sure that the Cable Trap is oriented to
hold the Cable in the groove of the Pulley.
Make sure the Half Guards are oriented as
shown.
