12

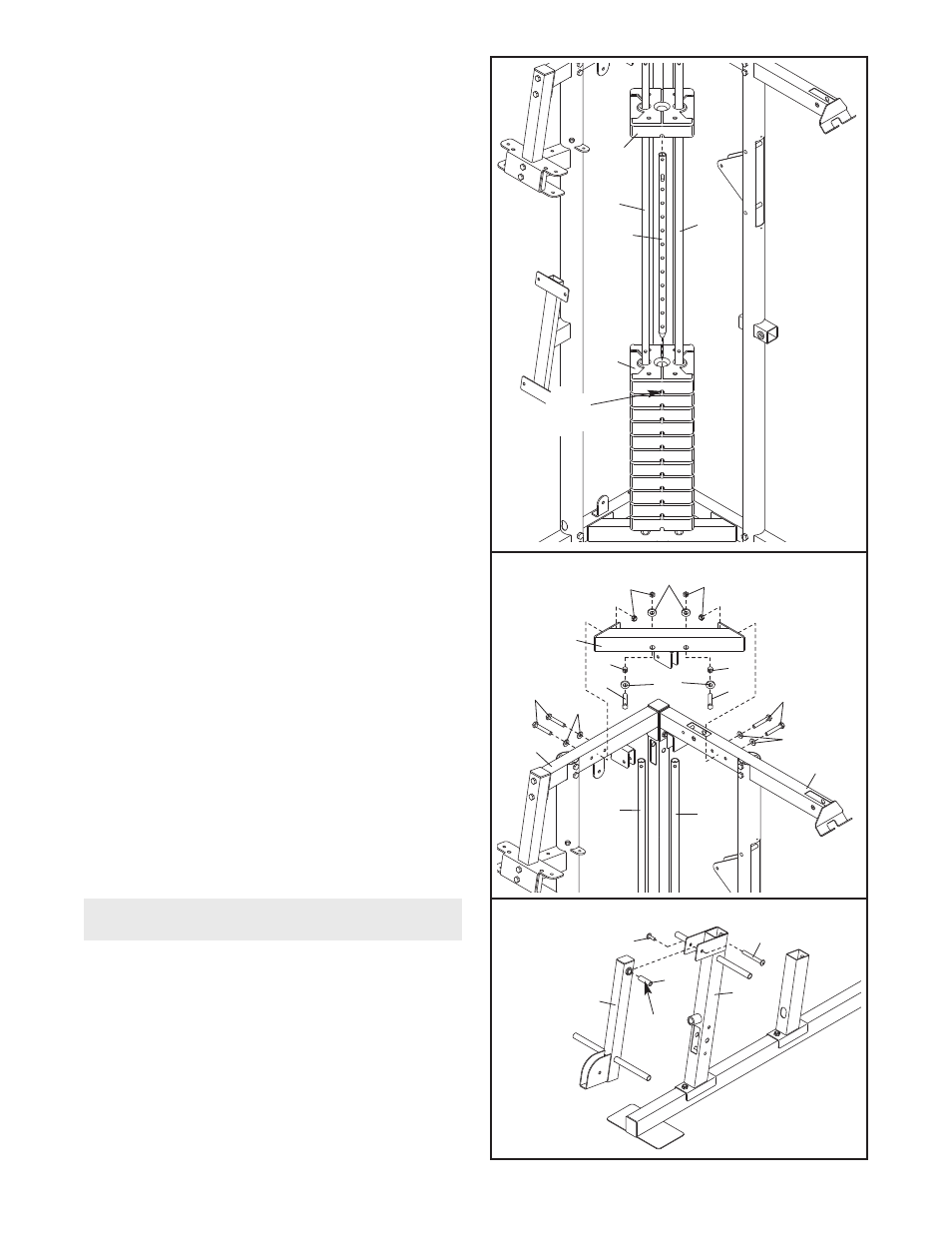

13. Slide eleven 12.5-lb. Weights (34), with the pin
grooves on the bottom, onto the Weight Guides
(30).
Orient a Weight Tube (75) as shown. Insert the
Weight Tube into the stack of Weights (34).
Slide another 12.5-lb. Weight (34) onto the
Weight Guides (30).
75
34
30
30
13
34
Pin
Groove
14. Attach the Center Top Frame (6) to the Right and
Left Top Frames (3, 4) with four M10 x 70mm
Bolts (57), four M10 Washers (108), and two M10
Nylon Locknuts (84).
Do not tighten the Bolts
yet.
Attach a Weight Guide (30) inside the Center Top
Frame (6) with an M10 x 65mm Bolt (87), two
M10 Washers (108), a 1/2” Bushing (68), and an
M10 Nylon Locknut (84).
Attach the other Weight Guide (30) to the
Center Top Frame (6) in the same manner.
Tighten the bolts, screws and locknuts used
in steps 3, 4, 7, 9, 10, 11, and 14.
15. Apply grease to a 2" Bushing (63) and insert the
Bushing into the Leg Lever (15). Attach the Leg
Lever and the Bushing to the Curl Post Upright
(10) with a 2 1/4" Bolt Set (86).
6
3
4
108
57
84 84
108
30
30
108
108
87 87
68
68
14
57
15
10
86
Grease
86
63
15 Arm Assembly
