20

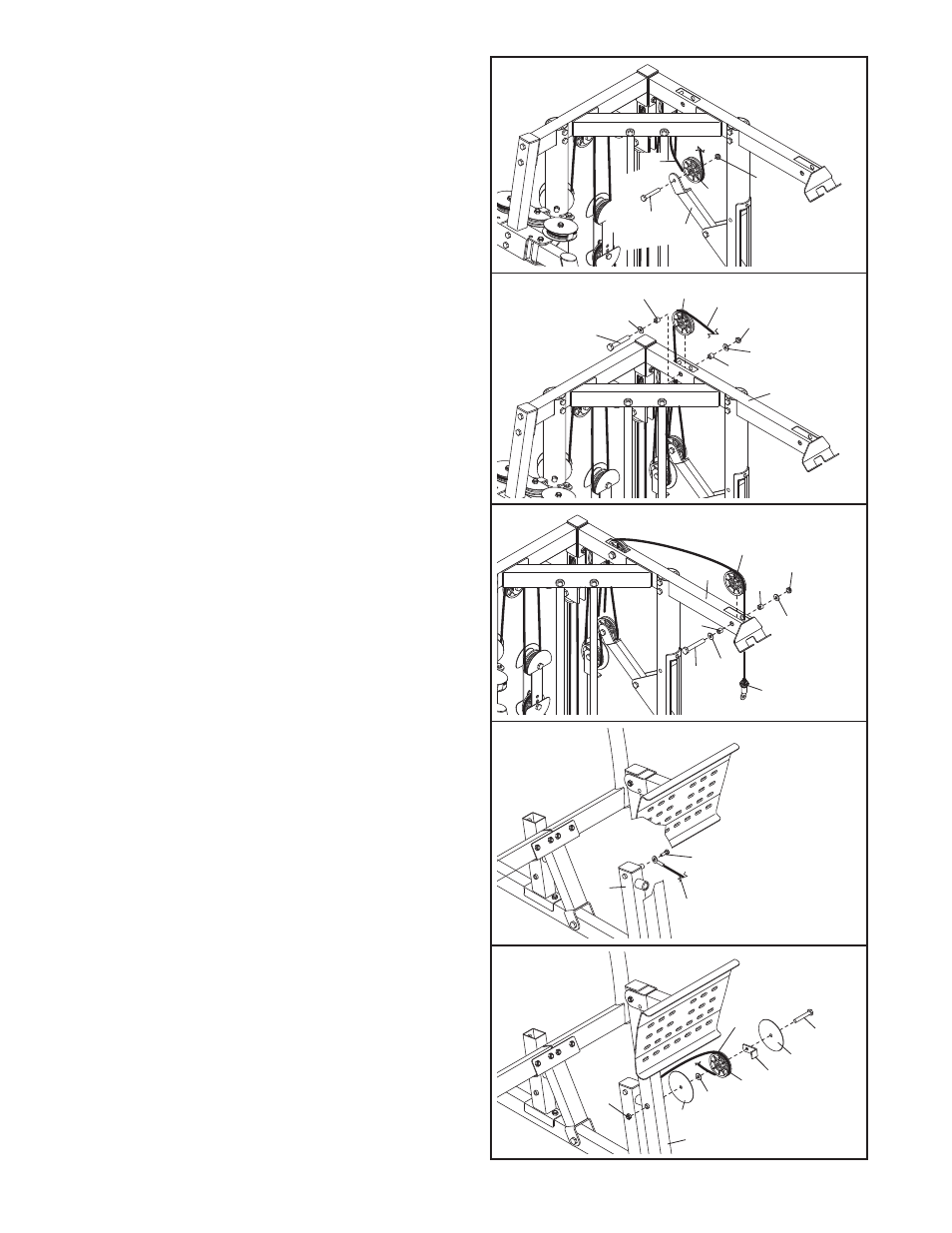

42. Wrap the Low Cable (70) under a Pulley (43).
Attach the Pulley to the Military Press Frame (20)
with an M10 x 40mm Bolt (104) and an M10
Nylon Locknut (84).
43. Route the Low Cable (70) up through the Left Top
Frame (4) and over a Pulley (43). Attach the
Pulley inside the Left Top Frame with an M10 x
65mm Bolt (87), two M10 Washers (108), two 1/2”
Bushings (68), and an M10 Nylon Locknut (84).
44. Wrap the Low Cable (70) over a Pulley (43) and
down through the Left Top Frame (4). Attach the
Pulley inside the Left Top Frame with an M10 x
65mm Bolt (87), two M10 Washers (108), two 1/2”
Bushings (68), and an M10 Nylon Locknut (84).
45. Identify the Press Cable (72). Attach the Cable
to the Left Base (2) with an M8 x 25mm Shoulder
Bolt (92).
Make sure that the Cable end can
pivot easily around the shoulder of the Bolt.
104
42
43
45
46
108
84
68
87
70
68 108
43
4
44
92
2
72
108
72
45
84
45
97
43
48
12
46. Wrap the Press Cable (72) over a Pulley (43).
Attach the Pulley, a Cable Trap (48), an M10
Washer (108), and two Guards (45) to the Leg
Press (12) with an M10 x 120mm Bolt (97) and
an M10 Nylon Locknut (84).
Make sure that the
Cable Trap is oriented to hold the Cable in the
groove of the Pulley.
20
84
70
43
108
43
70
68
108
84
68
87
4
