3 2 ■ Wa t l o w M I N I C H E F 2 0 0 0 A p p l i c a t i o n 2 3

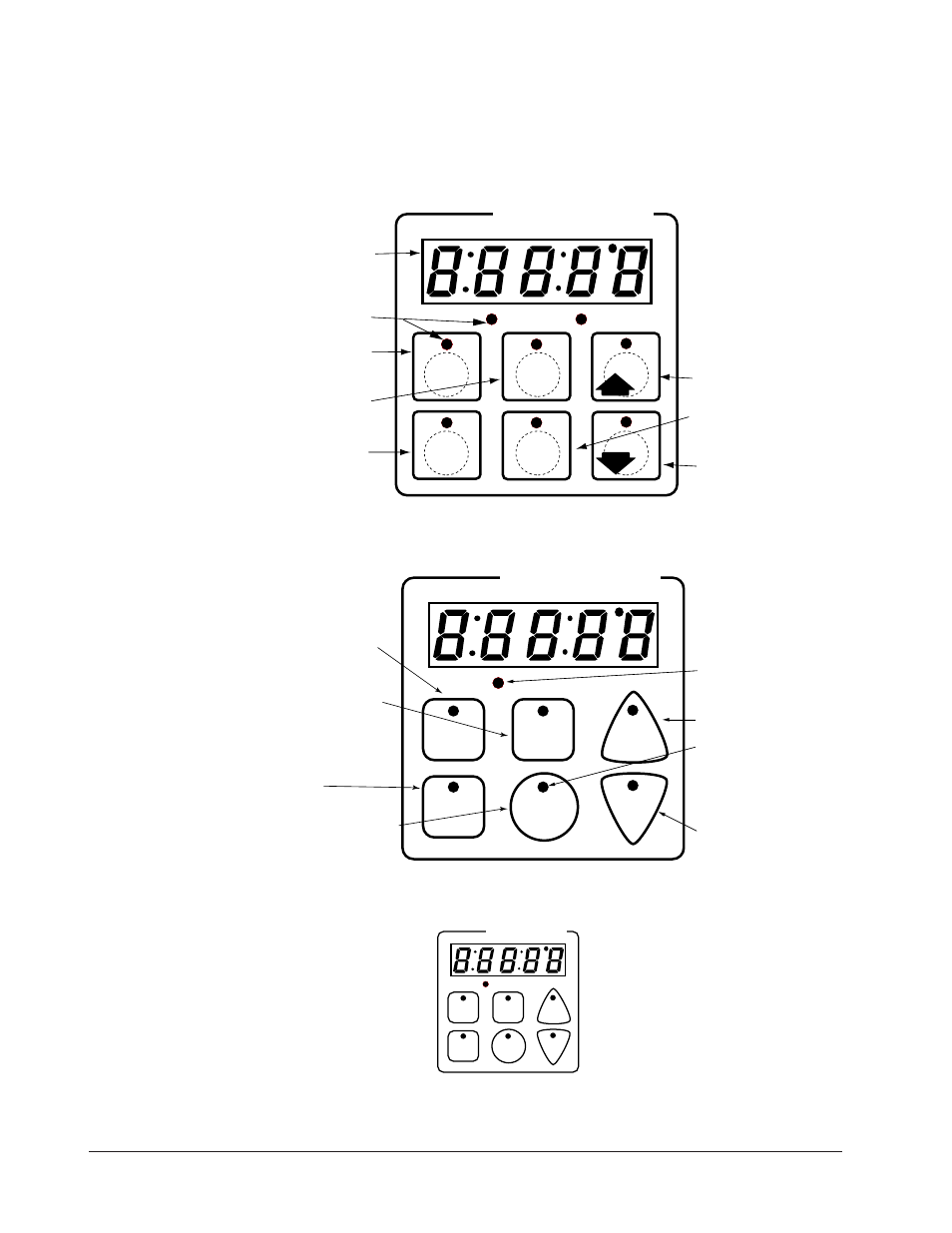

Key Functions in Configuration Mode
Key Functions in Operation Mode
Summary of Input/Output Functions
Note: For details, see wiring instructions in the Hardware & Software Setup Guide.
Heat
1
Cook
Temp(s)
2
Cook
Time(s)
4 5
Start/
Stop
6
Down
Your Company Logo
3
Up
Input 1 Griddle Temp
→
Input 2 not used
→
Event Input 1 not used
→
Event Input 2 not used
→
→
Output 1 Heat
→
Output 2 not used
→
Event Output 1 not used
→
Event Output 2 Timer Output
→
Output 5 Audible alarm
Heat
1
Cook
Temp
2
Cook
Time
4 5
Start/
Stop
6
Down
Your Company Logo
3
Up
Temp Set or display
temperature. Lights flash
rapidly if editing
parameters during menu
operation.
Time Set Time. Lights
flash rapidly if editing
parameters during menu
operation.
Not Used
Start/Stop Activate, pause
or cancel active menu.
Heat Indicator Light
Lit when heat output is on.
Increment
Start/Stop Indicator Light
Slow flash...Preheating
Rapid flash...Ready
Lit...Cooking
Off...Done
Decrement
A B
D E
G H
Enter
Escape Home
Edit
C
F
M
INI
C
HEF
2000
Display five-digit, seven-
segment numeric LED
display.
Indicator lights
(1 for each key, 2 for heat
channels).
Edit key (A) Access the
next level of parameters or
values.
Enter key (B) Enter the
value and return to
previous level.
Home key (D) Move to
Operation Mode with a
two-second key press.
Up key (C) Move up the
lists.
Escape key (E) Return to
original value when editing
a parameter value.
Down key (F) Move down
the lists.
