2

Wa t l o w M

I N I

C

H E F

2 0 0 0

A p p l i c a t i o n 2 0

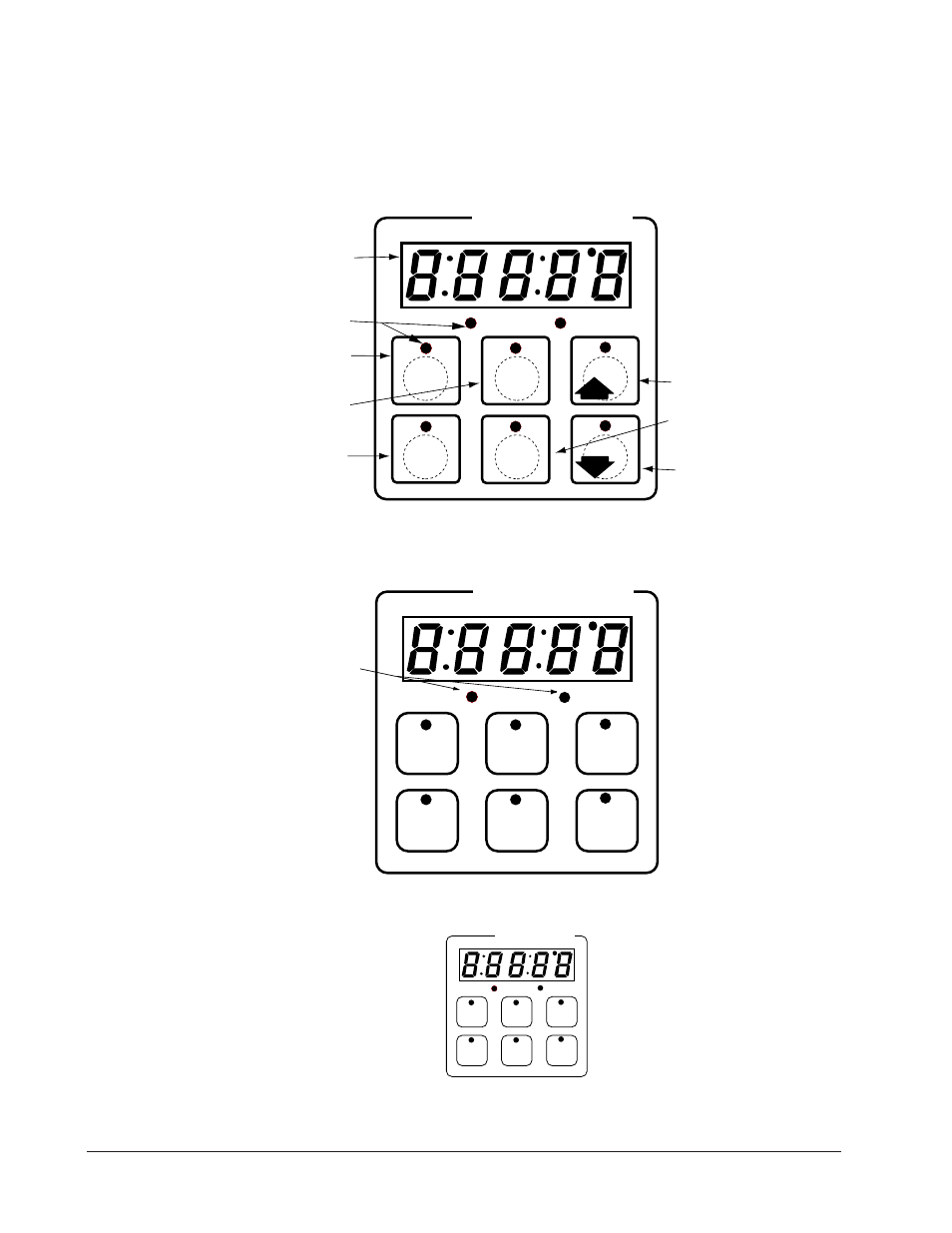

Key Functions in Configuration Mode

Key Functions in Operation Mode

Summary of Input/Output Functions

Note: For details, see wiring instructions in the

Hardware & Software Setup Guide.

Input 1 Griddle Temp

Input 2 Platen Temp

Event Input 1 not used

Event Input 2 not used

Output 1 Griddle Heat

Output 2 Platen Heat

Event Output 1 not used

Event Output 2 not used

Output 5 Audible alarm

Heat

Menu

Menu

Menu

Menu

1

2

3

4

5

6

Your Company Logo

Menu

Menu

Heat

Heat

Menu

Menu

Menu

Menu

Menu

Menu

1

2

3

4

5

6

Your Company Logo

Menu Key Indicator Lights
Slow flash...Preheating
Rapid flash...Ready
Lit...Cooking
Rapid flash...Done
Slow flash...Idle and regulating
temp to previous set point
Not Lit...No menu selected

Heat Indicator Light Lit
when heat output is on.

Menu Keys Activate and
cancel menus, activate
cook cycle when
preheating, and
acknowledge alarms.

Heat

A

B

D

E

G

H

Enter

Escape

Home

Edit

C

F

M

INI

C

HEF

2000

Display five-digit, seven-
segment numeric LED
display.

Indicator lights
(1 for each key, 2 for heat
channels).

Edit key (A) Access the
next level of parameters or
values.

Enter key (B) Enter the
value and return to
previous level.

Home key (D) Move to
Operation Mode with a
two-second key press.

Up key (C) Move up the
lists.

Escape key (E) Return to
original value when editing
a parameter value.

Down key (F) Move down
the lists.
