7
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
iNST
alla
Tio
N

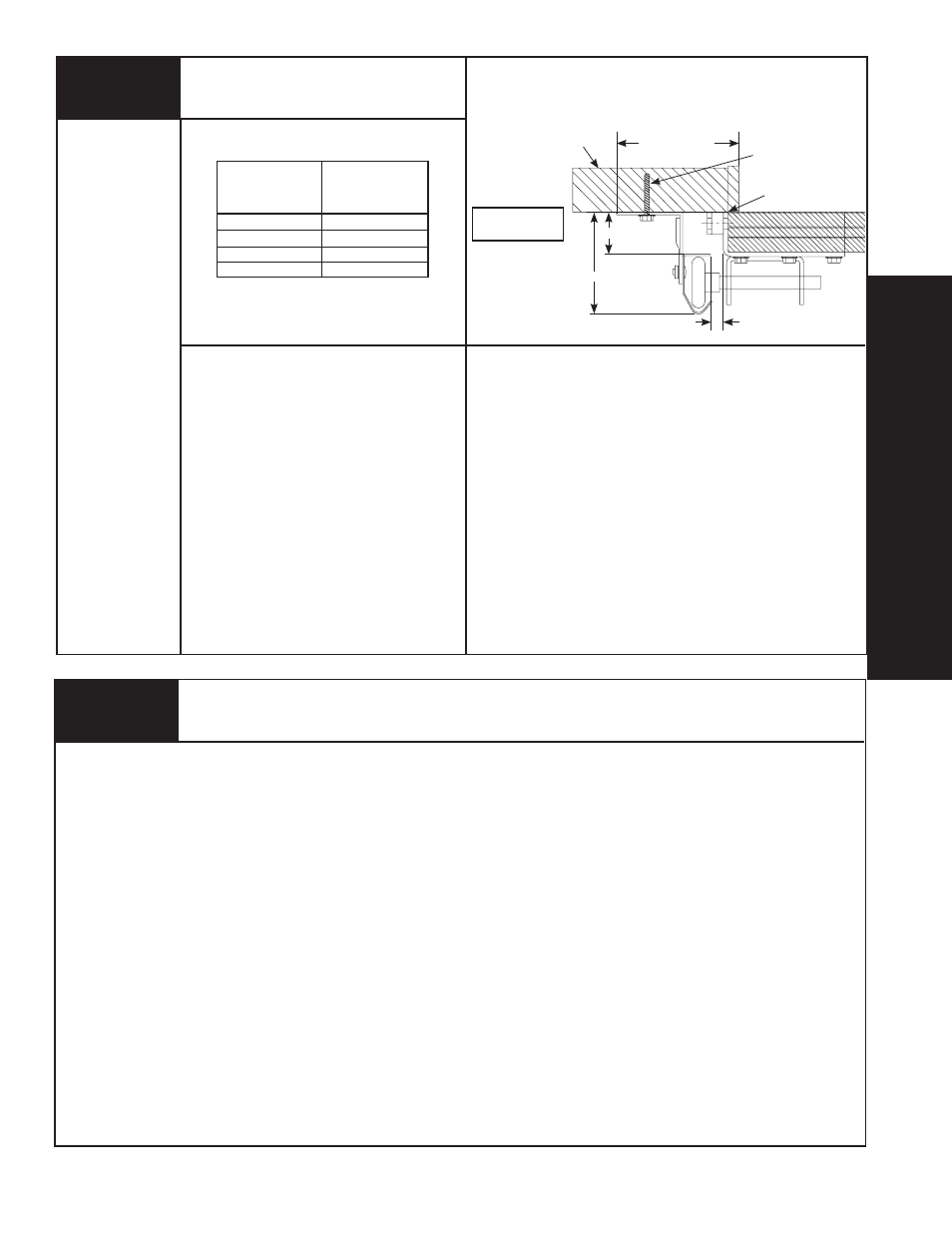

wooD JambS
2” TRack
FLUSh
2” x 6” jAMB IS
RECOMMENDED
1/2”- 5/8”
5/16 x 2”
LAG SCREW
SEE SIDEROOM
REqUIREMENTS
ChART
4-3/16”
Preparing the opening
continued......
1-1/2”
RaDiuS TRack
SiDeRooom
(Requirements)
12” R 4-1/2”
14”R 4-1/2”
3.5 LhR REAR 9”
3.5 LhR FRONT 4-1/2”
SiDeRoom RequiRemeNTS
installation
Begin the installation of the door by checking the opening. It must be the same size as the door. Vertical jambs must be plumb and level
with header.
imPoRTaNT: STAINLESS STEEL OR PT 2000 COATED LAG SCREWS (NOT SUPPLIED) MUST BE USED WhEN INSTALLING CENTER
BEARING BRACKETS, END BRACKETS, jAMB BRACKETS, OPERATOR MOUNTING/SUPPORT BRACKETS AND DISCONNECT BRACKETS
ON TREATED LUMBER (PRESERVATIVE-TREATED). STAINLESS STEEL OR PT 2000 COATED LAG SCREWS ARE NOT NECESSARY WhEN
INSTALLING PRODUCTS ON UN-TREATED LUMBER.
imPoRTaNT: WhEN INSTALLING 5/16” DIAMETER LAG SCREWS USING AN ELECTRIC DRILL/DRIVER, ThE DRILL/DRIVER’S CLUTCh MUST
BE SET TO DELIVER NO MORE ThAN 200 IN. LBS. OF TORqUE. FASTENER FAILURE COULD OCCUR AT A hIGhER SETTING.
Note: It is recommended that 5/16” lag screws be pilot drilled using a 3/16” drill bit, prior to fastening.
