13
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
Tools Needed:
Tools Needed:
iNST
alla
Tio
N

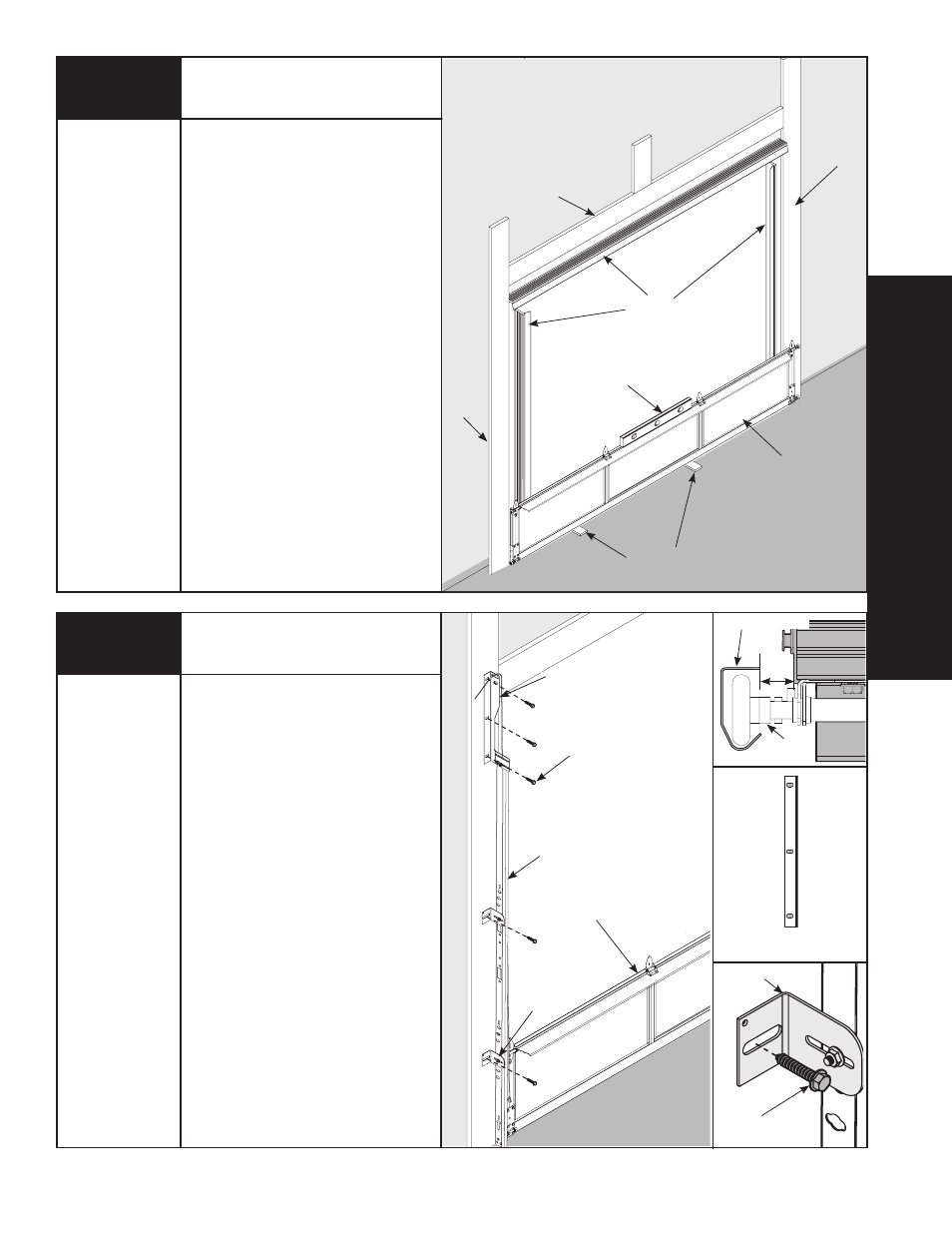

10
bottom Section
WEAThER
SEAL
LEVEL
hEADER
hammer
Wood Shims
jAMB
BOTTOM
SECTION
WOODEN
ShIMS
jAMB
Center the bottom section in the door
opening. Level section using wooden shims
(if necessary) under the bottom section.
11
vertical Track and wall angle
installation
3/16” Drill Bit
Power Drill
7/16” Socket
Driver
Tape Measure
Level
Step Ladder
BOTTOM SECTION
5/16 x 2” LAG
SCREWS
FLAGANGLE
VERTICAL
TRACK
ASSEMBLY
jAMB
BRACKET
VERTICAL TRACK
ROLLER
jAMB BRACKET
5/16” x 2”
LAG BOLT
imPoRTaNT: ThE TOPS OF ThE VERTICAL
TRACKS MUST BE LEVEL FROM SIDE
TO SIDE. IF ThE BOTTOM SECTION WAS
ShIMMED TO LEVEL IT. ThE VERTICAL
TRACK ON ThE ShIMMED SIDE, MUST BE
RAISED ThE hEIGhT OF ThE ShIM.
Position the left hand vertical track assembly
over the rollers of the bottom section. Make sure
the counterbalance cable is located between the
rollers and the door jamb. Drill 3/16” pilot holes
for the lag screws.
Secure jamb brackets and flagangles to
the jamb using 5/16 x 2” lag screws. hang
counterbalance cable over flagangle. Repeat for
the right side.
3/8 -
5/8”
FLAGANGLE
hOLE SELECTION
