15
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer. To find your local Wayne-Dalton dealer, refer to your
local yellow pages/business listings or go to the Find a Dealer section online at www.wayne-dalton.com
iNST
alla
Tio
N
1-11/16” TO
1- 3/4”
FLAGANGLE TOP
SECTION
NAIL
ROLLER
VERTICAL TRACK
ROLLER AGAINST
VERTICAL TRACK
TOP SECTION

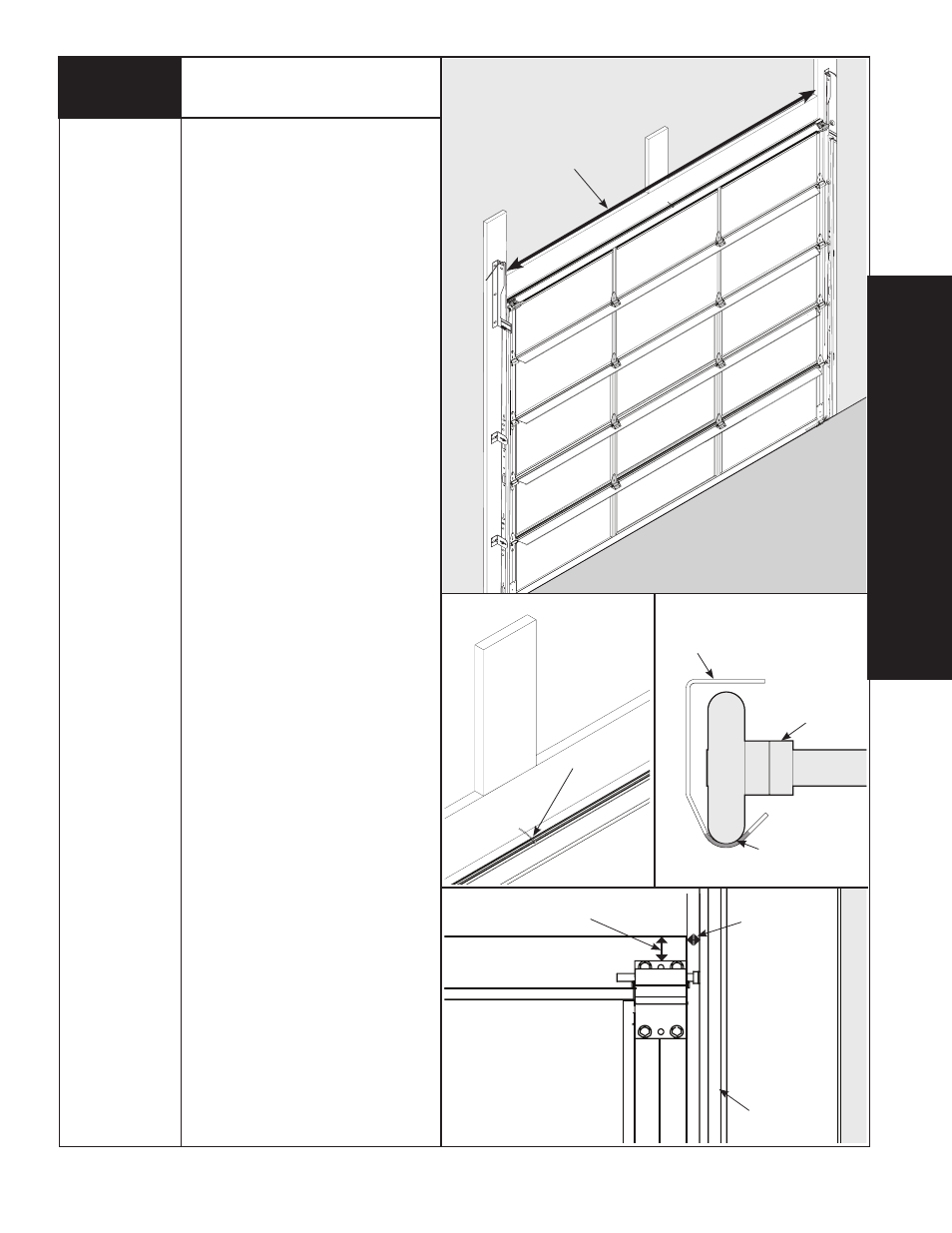

Place the top section in the opening and
vertically align with lower sections.
Temporarily secure the top section by driving
a nail in the header near the center of the door
and bending it over the top section.
Now flip up hinge leaf against section, fastening
center hinges first, and end hinges last. (Refer
to Step 7).
When installing a door with a torsion
counterbalance system, vertical track alignment
is critical. Position flagangle between 1-11/16”
(43 mm) to 1-3/4” (44 mm) from the edge of the
door. Tighten the bottom lag screw. Flagangles
must be parallel to the door sections.
Repeat for opposite side.
imPoRTaNT: ThE DIMENSION BETWEEN
ThE FLAGANGLES MUST BE DOOR WIDTh
PLUS 3-3/8” (86MM) TO 3-1/2” (89 MM) FOR
SMOOTh, SAFE DOOR OPERATION.
Complete the vertical track installation by
securing the center jamb bracket(s) and
tightening the other lag screws.
Push the vertical track against the rollers so that
the rollers are touching the deepest part of the
curved side of the track (see illustration). Tighten
all the carriage bolts and nuts.
Repeat for opposite side.
Top Section
13
hammer
Nail
Power Drill
7/16 Socket
Driver
Tape Measure
Step Ladder
DOOR WIDTh
+3-3/8” TO 3-1/2”
1- 3/4” FROM TOP
EDGE OF TOP SECTION
