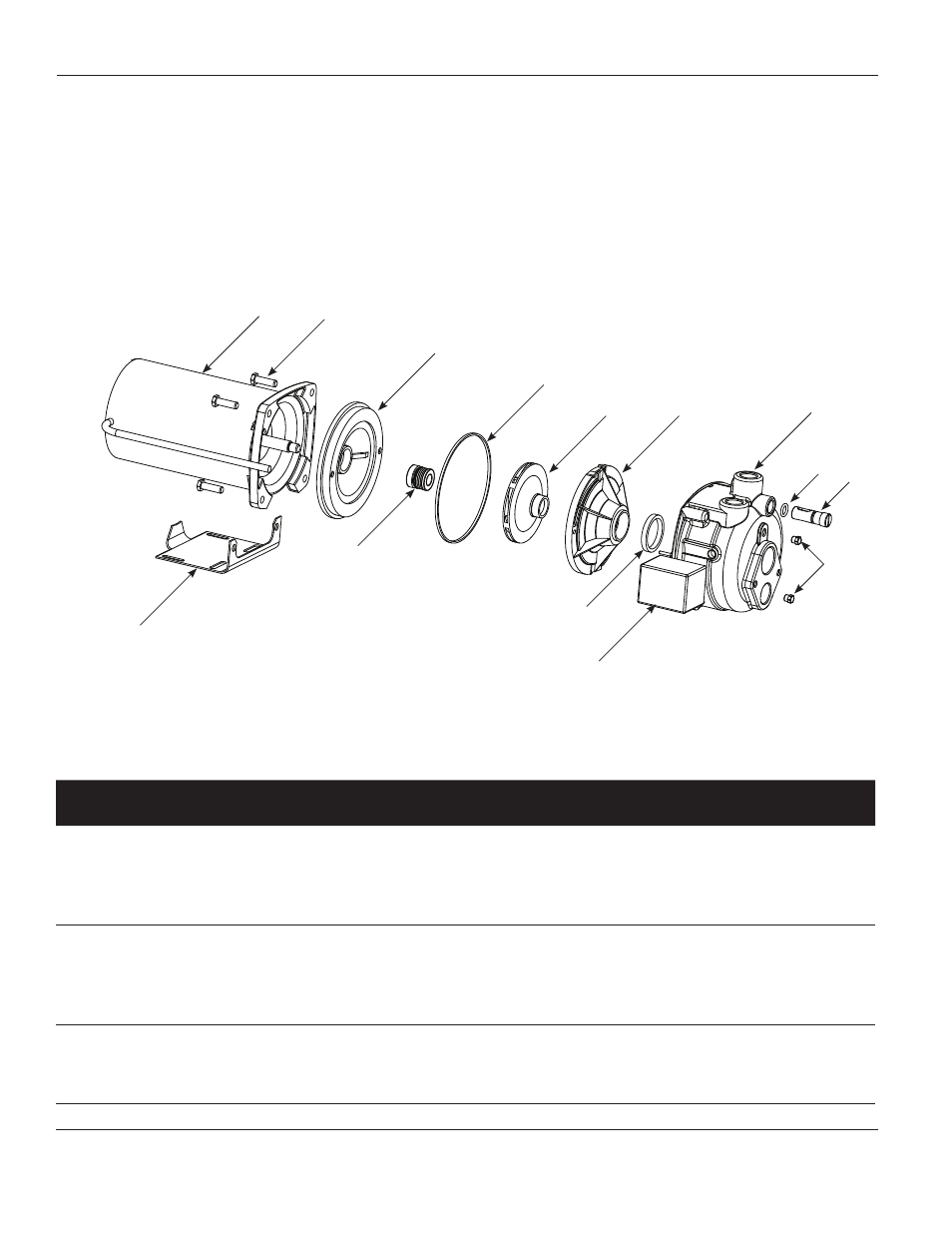

Replacement Parts List
Ref.
No.
Part Number for Models
Description CWS50-1/2 HP CWS75-3/4 HP CWS100-1 HP Qty.
1 Motor 32059-001 32015-001 32015-001 1
2 Screw 16636-002 16636-002 16636-002 4
3 Seal plate 4372-001 4372-001 4372-001 1
4 ● Shaft seal assembly 56393 56393 56393 1
5 ● Square ring rubber gasket 17150-001 17150-001 17150-001 1
6 Impeller 23285-002 23285-001 23285-001 1
7 Diffuser 17148-001 17148-001 17148-001 1
8 ● Rubber seal ring 17149-001 17149-001 17149-001 1
9 Volute 56870-001 56870-001 56870-001 1
10 Pressure switch 30010-001 30010-001 30010-001
11 O-ring 15592 15592 15592 1
12 Control valve (includes #11) 56883-001 56883-001 56883-001 1
13 Pipe plug 1/8 in. 15766-002 15766-002 15766-002 2
14 Base 23029-001 23029-001 23029-001 1
● Repair kit (includes #4, 5 & 8) 56874-001 56874-001 56874-001 1
Operating Instructions & Parts Manual CWS50, CWS75 and CWS100
1
2
3
4
5
6 7
8
9
10
11
12
13
14
