Visioneer STROBE 500 User Manual
Page 24
S
TEP
2: I
NSTALL
THE
S
OFTWARE
AND
C
ONNECT
THE
S
CANNER
17
SPEED USB hub”. Plug the USB cable into a USB 2.0 port (if
available) or just disregard the message. If you leave it plugged into the
USB 1.1 port, your scanner may scan a bit slower.
Your computer then recognizes that a scanner has been plugged into
the USB port and automatically loads the appropriate software to run
the scanner.

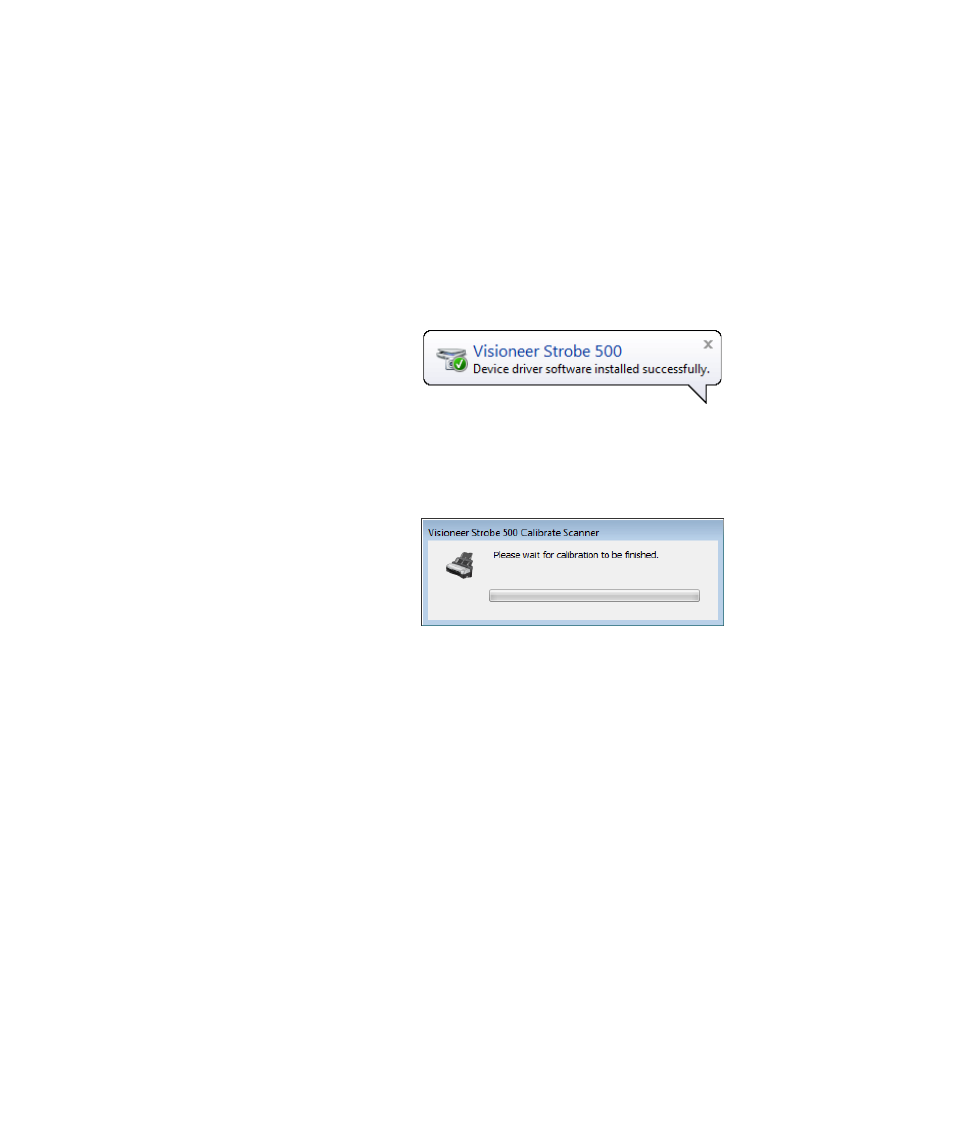

If your computer is running Windows version XP or later, you will see a
message similar to the following.
4.
A Calibration window opens on-screen after Windows finishes
detecting the scanner. The scanner calibrates automatically, and the
window will close when calibration is complete.
Depending on the version of Windows you are using, you may be
prompted to click Next to proceed with calibration, and click Finish
when calibration is complete. Follow the instructions if you see these
on-screen prompts.
