Charging Unit Wall Mounting
The charging unit is also designed to be wall mounted.
Before mounting your charging unit, consider the following:
• Select a location away from electrical cables, pipes, or
other items behind the mounting location that could cause
a hazard when inserting screws into the wall.
• Make sure the wall material is capable of supporting the
weight of the charging unit.
• Use #10 screws with anchoring devices suitable for the
wall material where the charging unit will be placed.

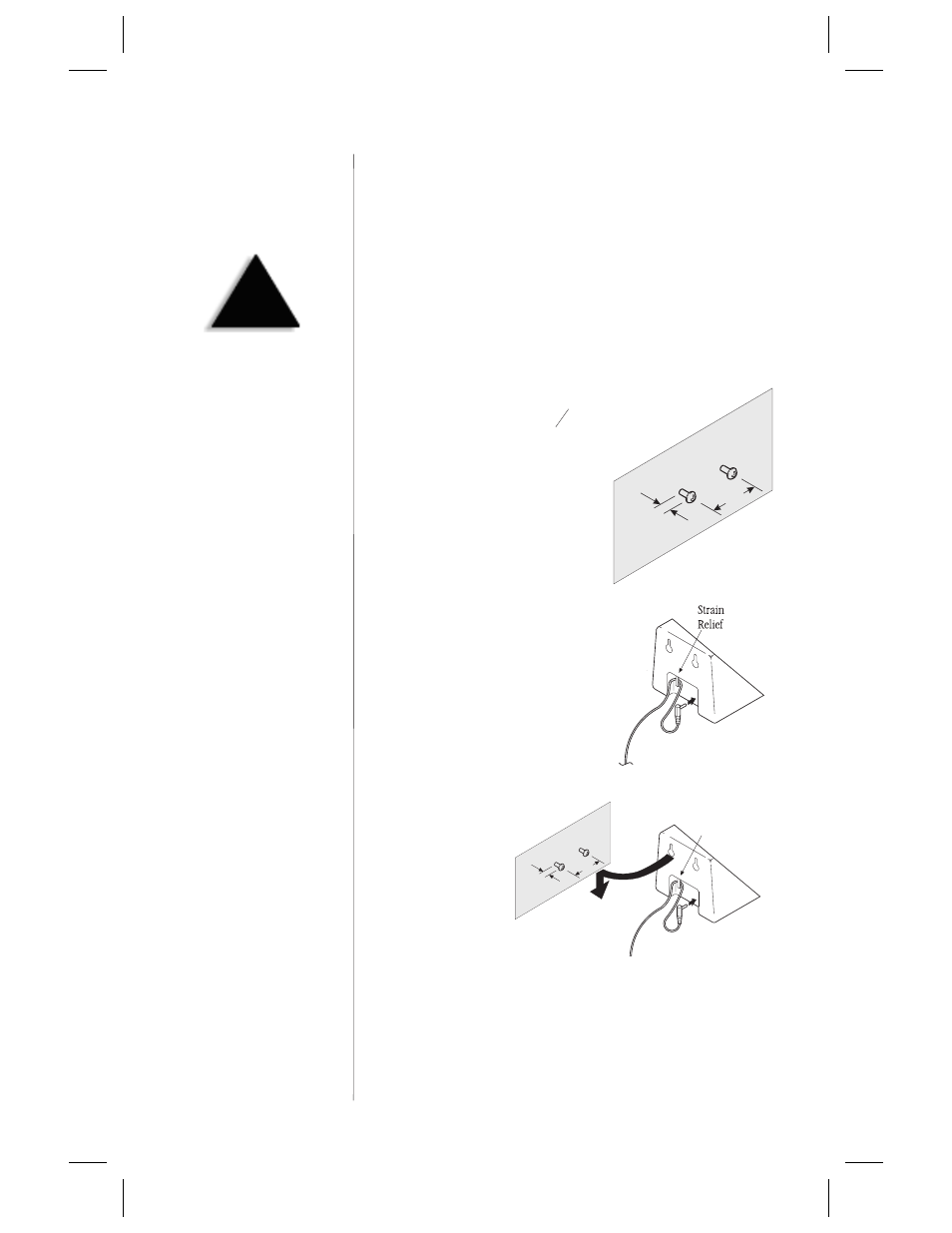

1. Insert two mounting screws 1-1/2
inches apart. Allow about 3
16
of an
inch between the wall and screw
heads for mounting the phone.
2. Plug the AC adapter into the
charging unit as previously
described. Wrap the AC adapter cord
around
the strain relief.
3. Place the charging unit on
the posts of the wall
screws and push
down until it is
firmly seated.
4. Plug the AC adapter into a standard 120V AC wall outlet.
&
1 1/2"
3/16"
Strain
Relief
1 1/2"
3/16"
!
Use only the Uniden
AC adapter AD9500
supplied with this base.
